Pivot Sliding Door Runners for Cabinet Doors

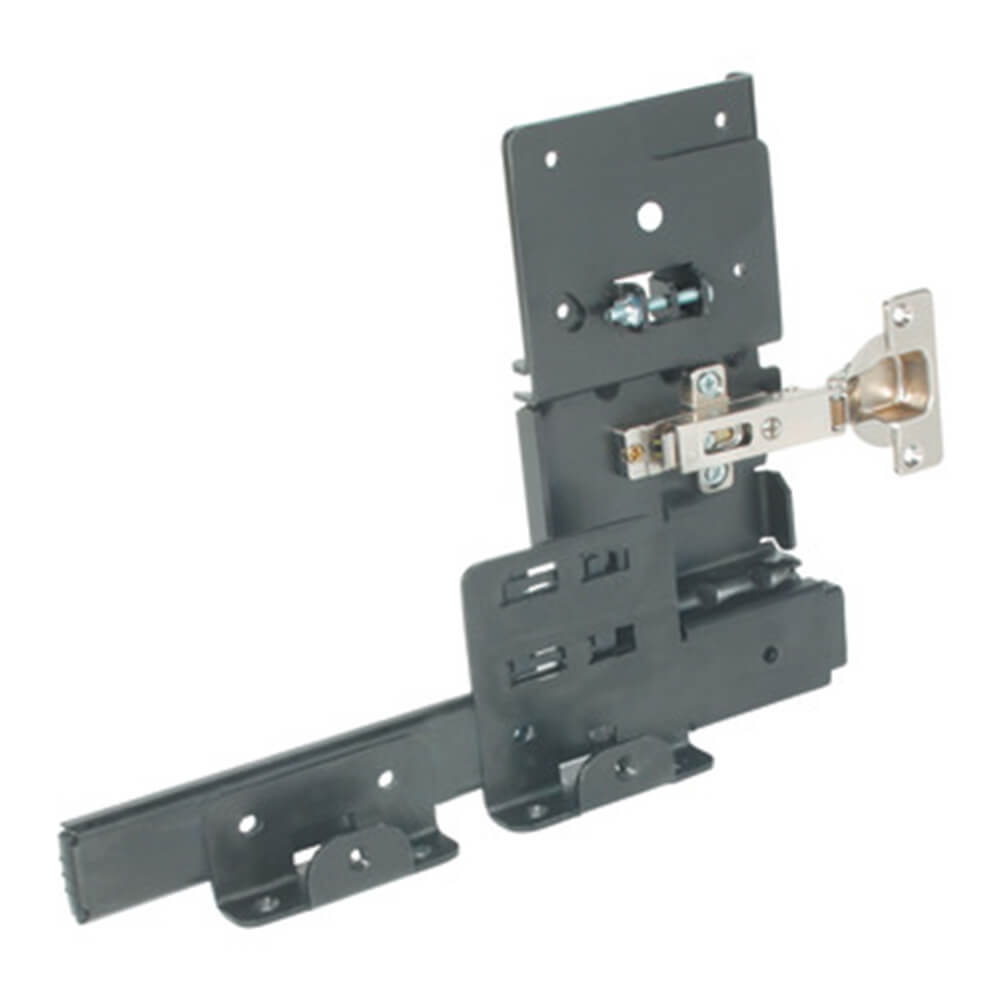

The Pivot Sliding Door Runners - Pocket cabinet door mechanism
For vertical use, Installed length 557 mm, extension length 442 mm

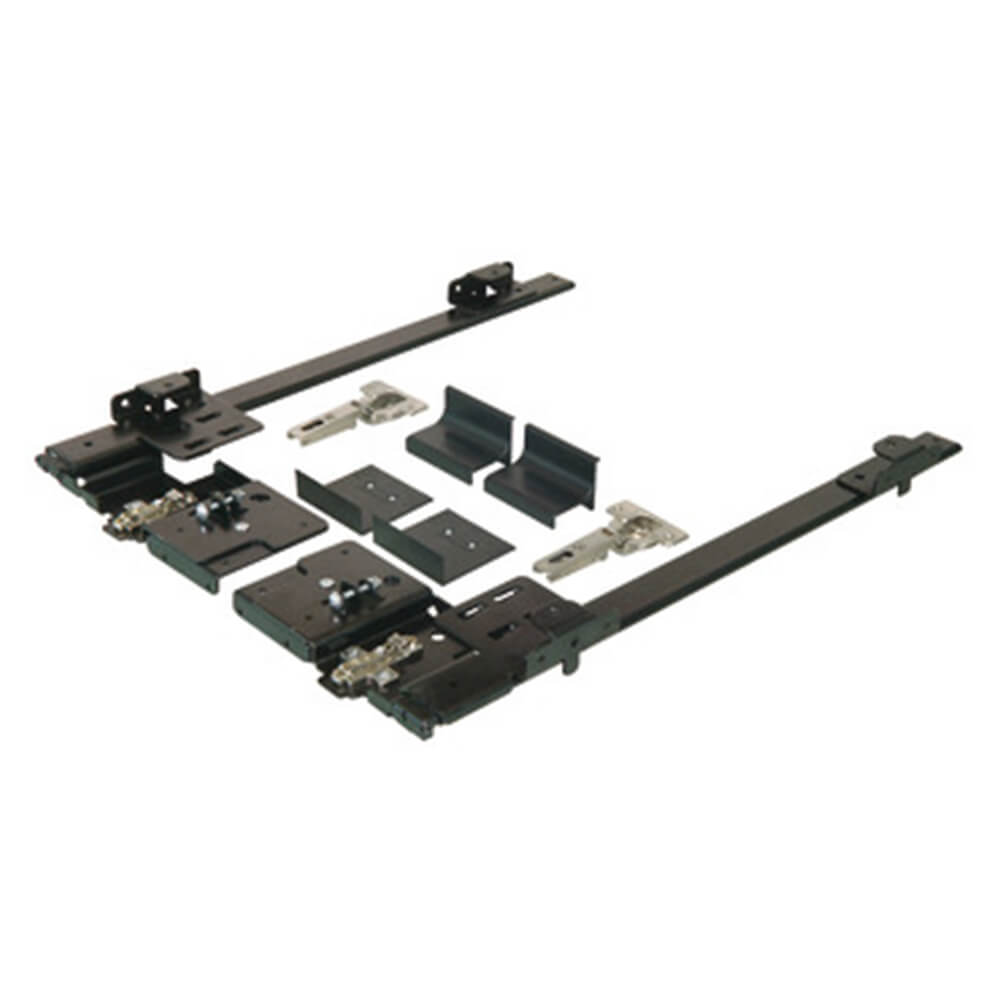

Supplied with
1 pair of runners
2 mounting brackets
2 concealed hinges (40 mm)
2 mounting plates
Fixing material

1 Mechanism Per door required

Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied moldings, or raised panels
Auto open feature pushes cabinet doors open the last 32 mm of travel
Anti-sag adjustment feature allows for the vertical adjustment of the door, assuring smooth opening and closing

Maximum door width - 610mm
Maximum door height - 1065mm
Maximum door Weight - 14kg
For door thickness - 19mm - 38mm

Screw fitting - designed for wooden doors

1 Mechanism Per door required.
