Kitchen Worktop Overhangs: Functionality Meets Design

Discover everything you need to know about worktop overhangs. From their utility to aesthetic considerations, our guide will make sure your kitchen strikes the perfect balance between form and function.

The Two Faces of Worktop Overhangs

When we talk about worktop overhangs, we're generally referring to two distinct types.

The first is the installation-based 40mm overhang that accounts for the thickness of your cabinet and  doors and adds a modest overhang for functionality.

The second is the design-oriented overhang, which is often larger and adds features like breakfast bars or peninsular layouts.

The Essential 40mm Overhang: A Matter of Practicality

The 40mm overhang is generally an installation standard you'll want to adhere to. Designed to account for a 20mm door thickness - with a bit of cushioning for variances - and an additional 20mm for the worktop itself, this overhang serves multiple functional purposes:

  1. Door Coverage: The initial 20mm effectively covers the thickness of the cabinet door, which can range from 18-22mm.

  2. Functional Overhang: The remaining 20mm is for the worktop overhang itself, which helps in preventing crumbs and spills from ending up in your cupboards.

  3. Alignment: The 40mm also aligns nearly with the handles of your kitchen units, adding a touch of streamlined elegance.

In Handleless kitchen styles, this overhang may be reduced to just the door thickness for a sleek, integrated look.

Why Choose a Design-Oriented Worktop Overhang

Larger, design-oriented overhangs offer different advantages, such as creating breakfast bars, peninsular layouts, or additional space for free-standing appliances. These are often subject to specific size and support requirements, which we'll discuss later.

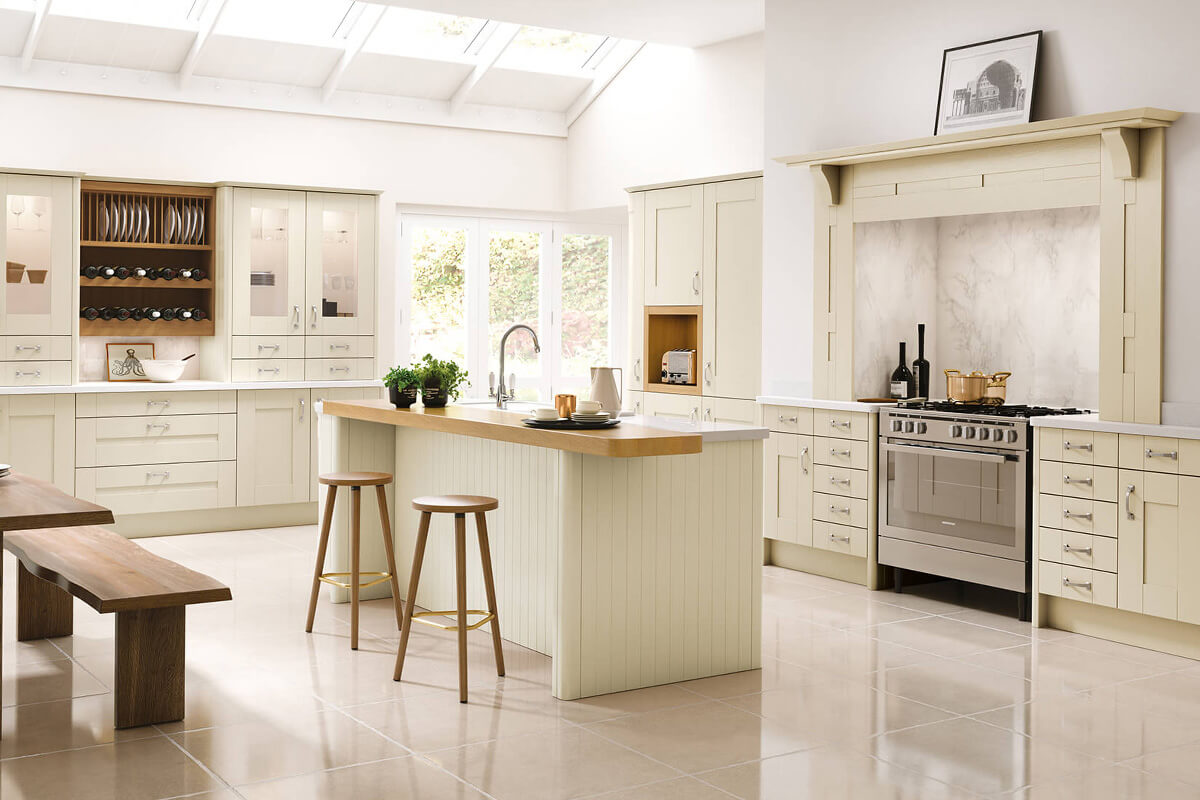

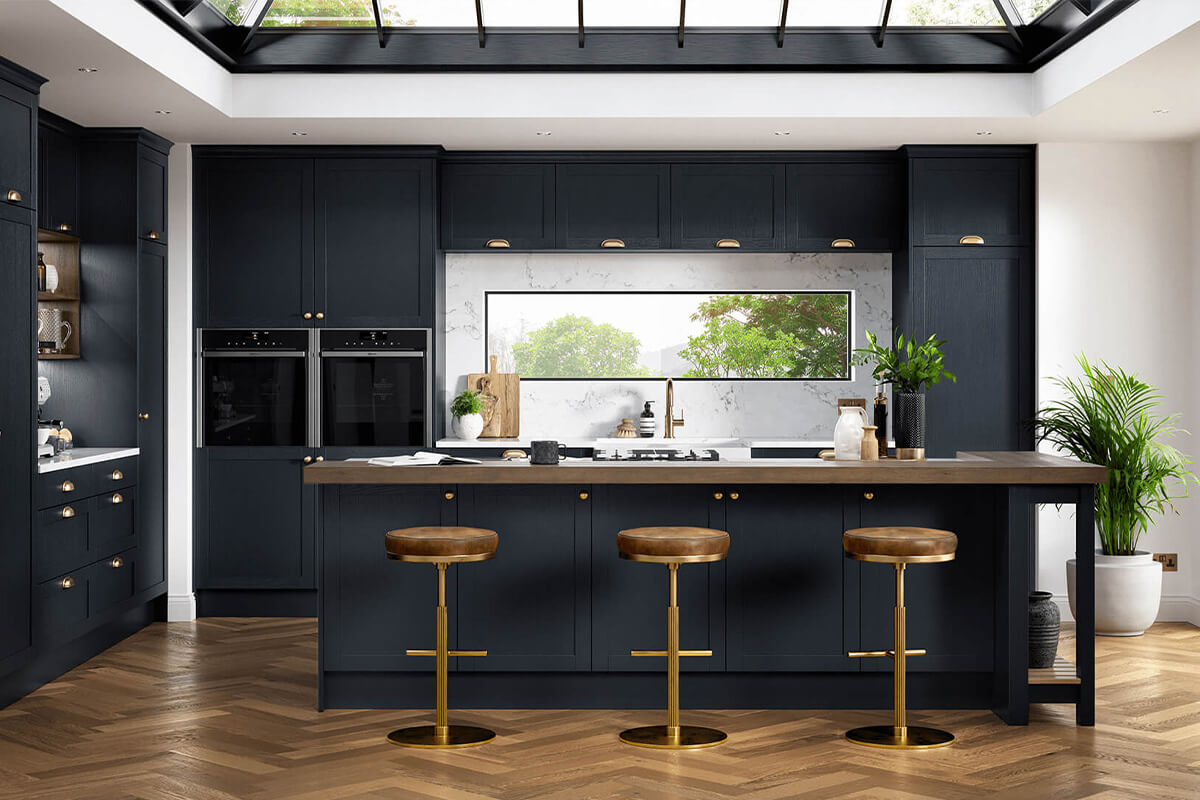

  1. Breakfast Bar Creation: A favourite in many homes, the breakfast bar utilises the overhang to provide a comfortable space for eating or socialising.

  2. Peninsular Design: The worktop overhang helps in achieving a seamless peninsular kitchen layout.

  3. Additional Space: An overhang can make room for bins or free-standing appliances, helping you declutter your kitchen area.

Considering Dimensions: How Much Can a Worktop Overhang?

When planning your kitchen worktop overhang, it's important to consider the dimensions. For Solid Surface, Quartz, and Granite worktops, the maximum unsupported overhang is 300mm.

Top Tip: Laminate worktops offer a bit more flexibility, allowing an overhang to extend up to 600mm without requiring extra support.

Supporting Your Overhang: What Should Be Done?

If you're looking to go beyond the standard overhang dimensions, additional support in the form of feature brackets or concealed metal work is essential.

This is especially crucial when the space for a free-standing appliance exceeds the recommended 300mm.

FAQs: Your Top Questions About Worktop Overhangs Answered

Navigating the world of worktop overhangs can be complex. We've compiled a comprehensive list of frequently asked questions to help you make informed decisions for your kitchen. From size considerations to installation queries, find expert advice for all your worktop overhang needs.

The standard overhang is usually 40mm for covering the cabinet and doors and functionality. Design-oriented overhangs, like those for breakfast bars, often average around 300mm and may require additional support.

The overhang should ideally be 300mm but can extend up to 600mm if you're using laminate worktops, provided additional support is in place.

The average worktop overhang varies by type. For standard installations, it's typically 40mm to cover the cabinet door and provide basic functionality. For design-oriented features like breakfast bars, the average extends to around 300mm, often requiring additional support.

Yes, a countertop overhang and a kitchen worktop overhang refer to the same design feature.

Yes, but it will require additional support in the form of brackets or concealed metal work.

Measure the space where the overhang will extend and consider the usage. If it's for seating, make sure there's ample legroom. Always remember to adhere to the material-specific guidelines on maximum unsupported lengths.

Corbels, metal brackets, or even additional cabinetry can be effective in providing the needed support. The choice often depends on your aesthetic preference and the weight of the material used for the worktop.

Yes, the maximum unsupported overhang can vary between materials. While materials like Quartz, Granite, and Solid Surface usually have a maximum unsupported overhang of 300mm, laminate worktops can extend up to 600mm without support.

An unsupported or inadequately supported overhang can lead to sagging, cracking, or even complete failure of the worktop, which could result in damage to your kitchen or injury.

While it's possible for DIY enthusiasts to install worktops with overhangs, it's advisable to consult professionals, especially for materials that require specific support mechanisms. Mistakes can be costly both in terms of materials and safety.


Crafting a kitchen that resonates with your style and meets your functional needs is an art. Worktop overhangs play a significant role in achieving this balance.

As you ponder your kitchen's design, don't overlook the importance of correctly sizing and supporting your overhang.
