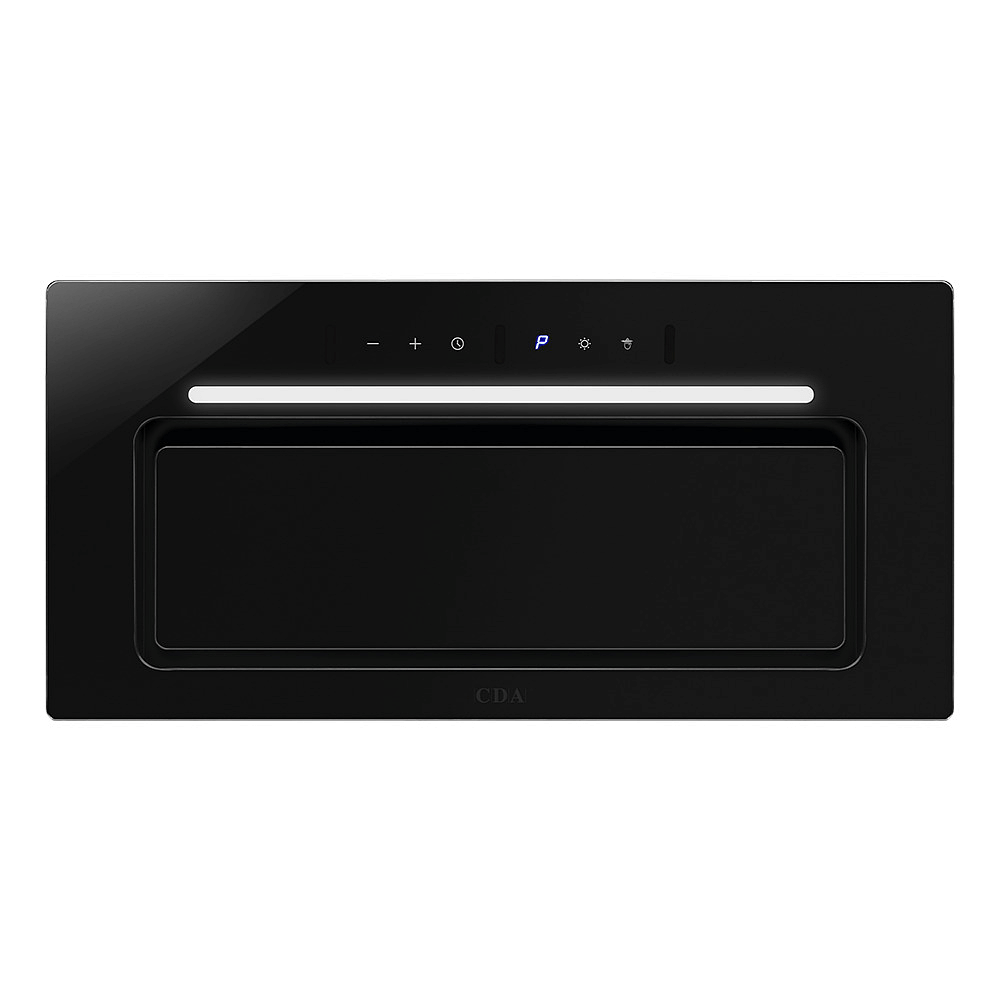

CDA CCG60BL - 60cm Canopy extractor, Gesture Control, LED Lights

The CCG60BL canopy hood is the latest addition to our gesture-controlled extractors, offering convenience and advanced user interaction.

• Gesture Control: Adjust speed settings and toggle lights with a simple hand wave.
• Touch Control Panel: For those who prefer traditional controls.
• Speed Settings: 3 speeds plus an intensive setting for powerful extraction.
• LED Lighting: Energy-efficient illumination for your cooking area.
• Energy Rating: A-rated for energy efficiency.
• Installation Note: May require significant modifications to the unit it is fitted to. Consultation with an advisor is recommended for more information.

Please note: This Unit needs a Minimum of a 700mm or larger unit. This unit does not fit a 600mm Wide unit

Features

• Speeds: 3 speeds plus booster
• Off Timer
• Ducted/re-circulating installation
• Touch control
• Gesture control

Technical Specification

• Outlet diameter: 150 mm
• Required Unit Width: 700mm (min)
• Required height over electric hobs: 450 mm (min)
• Required height over CDA gas hobs: 650 mm (min)

Extraction Rates And Noise

• Noise level at first speed: 45 dBA
• Extraction rate at first speed: 218 m3/hr
• Noise level at fourth speed: 66 dBA
• Extraction rate at second speed: 323 m3/hr
• Extraction rate at fourth speed: 540 m3/hr
• Noise level at second speed: 53 dBA
• Noise level at third speed: 64 dBA
• Extraction rate at third speed: 439 m3/hr

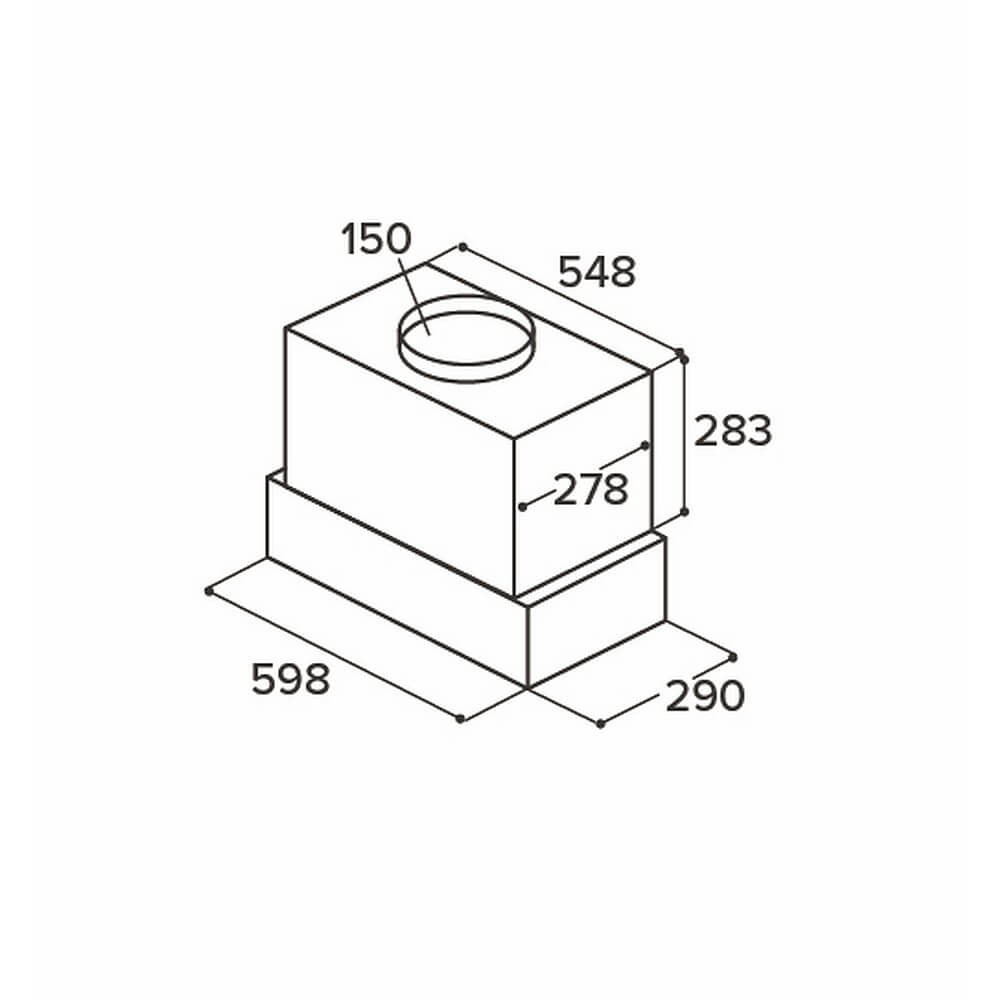

Dimensions

• Depth: 290 mm
• Height: 288 mm
• Width: 598 mm

Filters

• Number of grease filters: 1
• Aluminium grease filter: 1
• Charcoal filter code: CHA37 Pack of 2

Lighting

• Type of light: LED

Energy

• Energy rating: A

Misc Information

• WEEE Category: 1

Please note: To install this extractor, significant modifications will need to be made to the unit you are fitting it to. Although it is possible to fit this extractor into a 600mm wide unit, it may be easier to fit in a larger one. Please speak to one of our advisors for more information.
