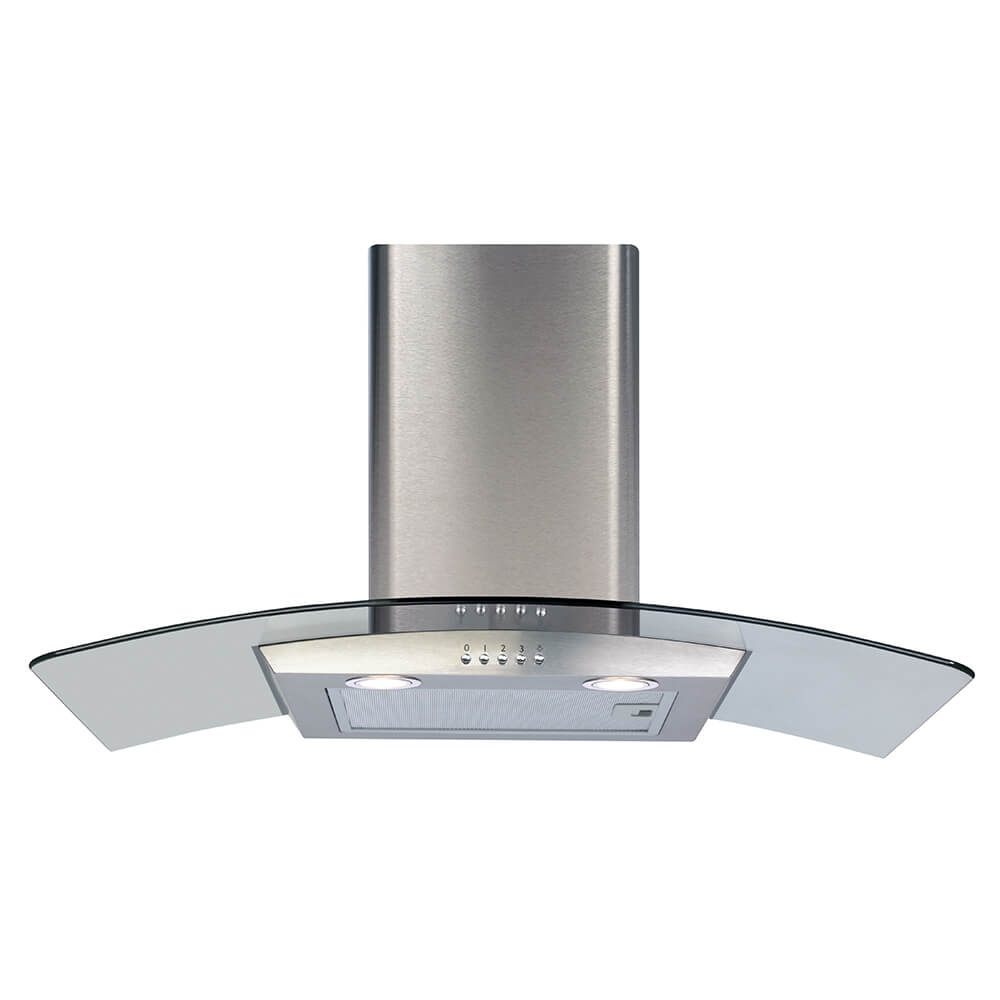

CDA ECP82SS 80cm Curved Glass Extractor, Stainless Steel, 3 Speed

The CDA ECP82SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Features

• Ducted/re-circulating installation
• 3 speeds
• Type of grease filter: Aluminium grease filters

Optional Accessories

• Ducting kit code: 120mm, AED 510/560
• Ducting kit code: 150mm, AED 610/660

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m
• Mains lead rating: H05VV-F m
• Protection class: Class I
• Outlet diameter: 120mm/150mm mm
• Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

• Noise level: 60 dBA
• Extraction rate: 391 m3/hr
• Extraction rate at first speed: 218 m³/hr
• Extraction rate at second speed: 302 m³/hr
• Extraction rate at third speed: 391 m³/hr
• Noise level at first speed: 50 dBA
• Noise level at second speed: 58 dBA
• Noise level at third speed: 60 dBA

Filters

• Charcoal filters: CHA12 (pack of 1)
• Number of layers: 4
• Number of grease filters: 1
• Number of charcoal filters (optional): 1
• Ducting kit: AED61/63/64 or AED51/53/54 with adaptor

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearnace between the hob and extractor

Misc Information

• WEEE Category: 01
