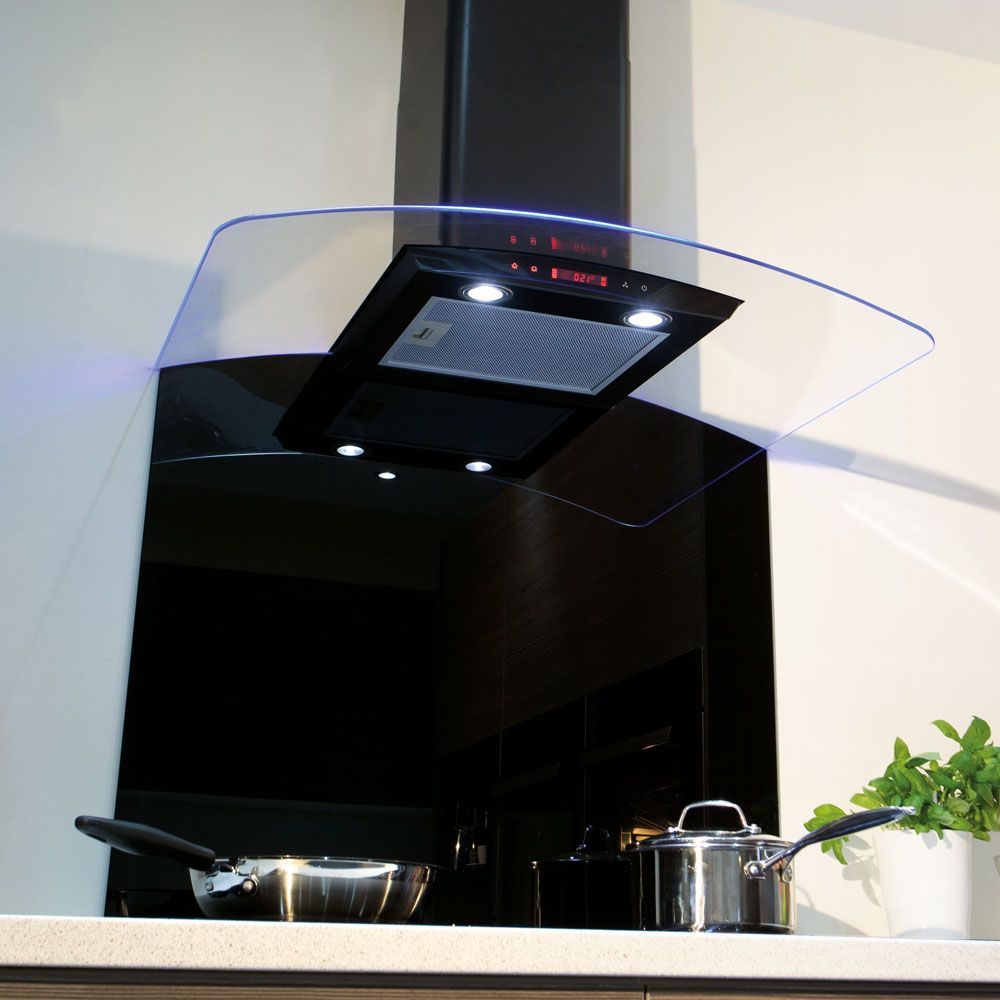

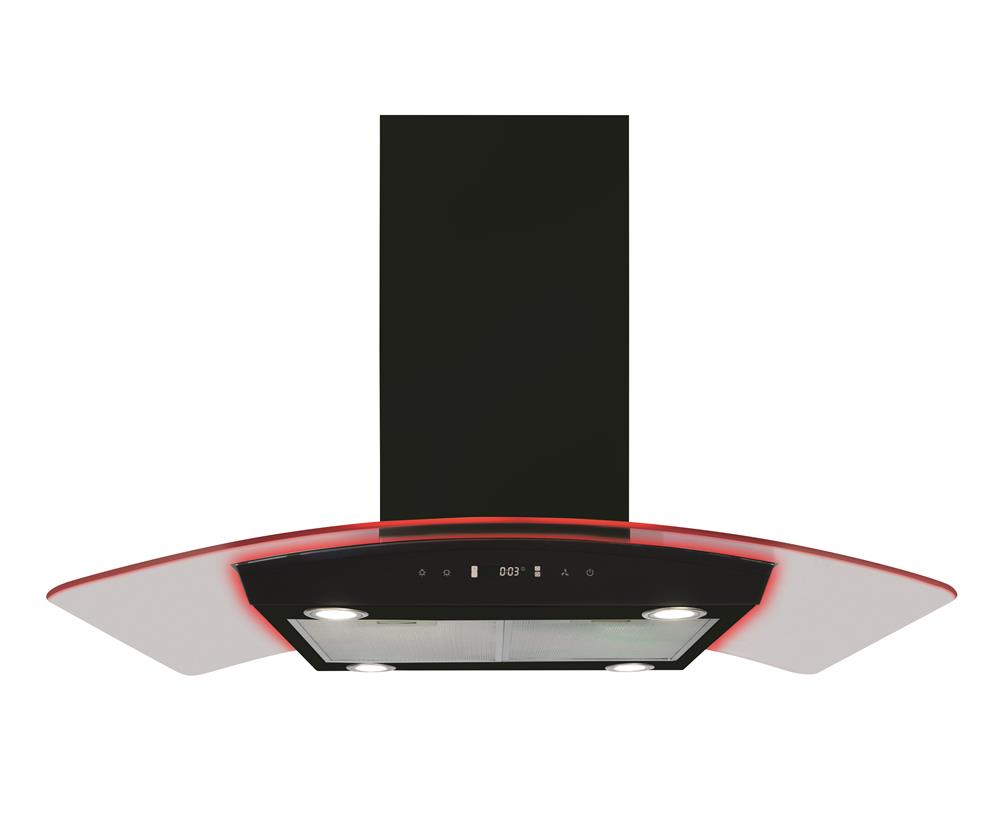

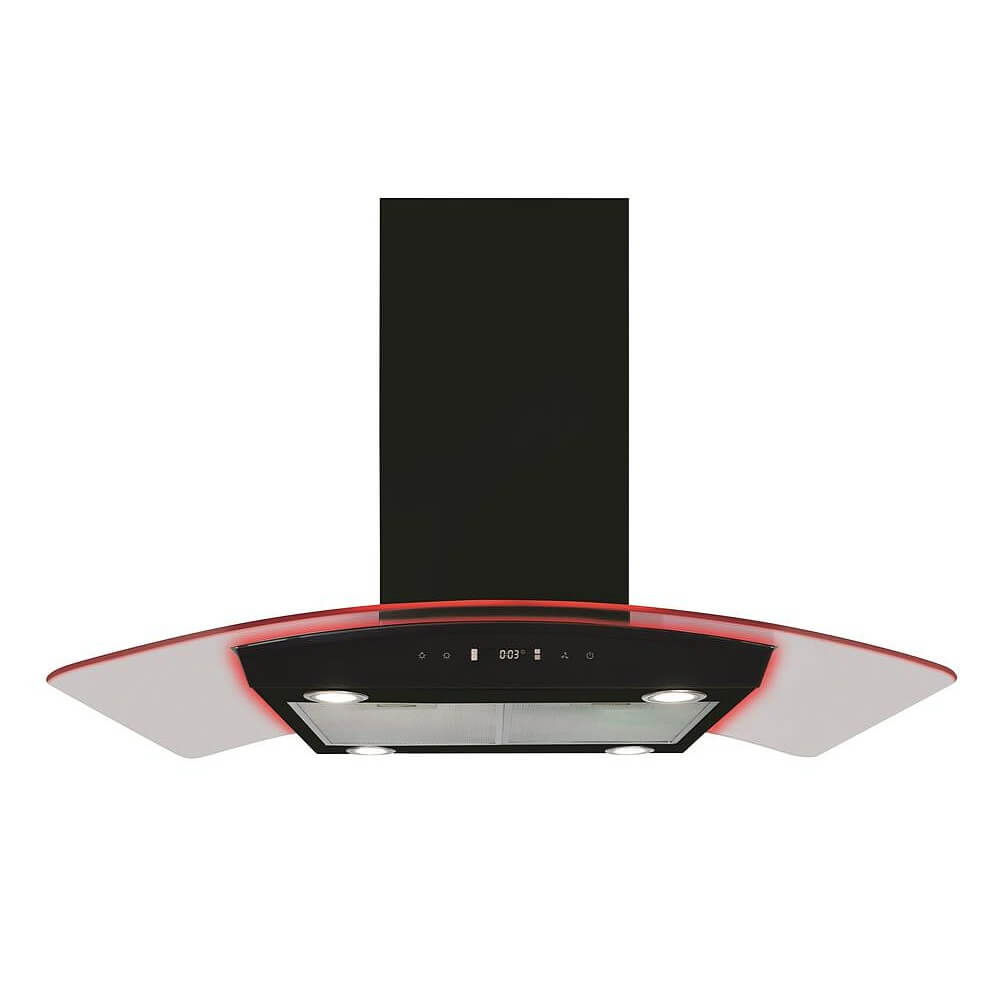

CDA EKPK90BL 90cm Curved Glass Island Extractor with LED Edge Lighting

The EKPK90BL is a stylish curved glass island extractor with LED edge lighting in three colours, blue, red and green. It has 3 speeds, touch control and built in LED lights to provide good illumination of the cooking area.

Features

• Ducted/re-circulating installation
• Timer function
• Touch control
• 3 speeds

Technical Specification

• Required height over gas hobs: 700 mm (min)
• Required height over electric hobs: 600 mm (min)
• Power supply: 3 A
• Mains lead length: 1 m

Extraction Rates And Noise

• Extraction rate: 387 m3/hr
• Noise level: 61 dBA
• Extraction rate at first speed: 224 m3/hr
• Noise level at first speed: 50 dBA
• Extraction rate at second speed: 322 m3/hr
• Noise level at second speed: 56 dBA
• Extraction rate at third speed: 387 m3/hr
• Noise level at third speed: 61 dBA

Energy

• Energy rating: D

Filters

• Aluminium grease filter
• Charcoal filter code: CHA12

Fitting Notes

• Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Misc Information

• WEEE Category: 01
