Magic Swing Out Corner Mechanism - To Suit 800mm Unit with 400mm Door - Left Hand

This clever storage unit is designed so that the rear baskets automatically follow the front baskets when the door is opened and pulled away from the cabinet

Door front fixing with integrated 3D adjustment and central height alignment allows the swing out corner storage unit to be fitted perfectly

Upon opening, the front baskets automatically swing away leaving free access to the back basket, making all baskets easily accessible when the unit is fully opened

Integrated damping ensures quiet, smooth closing of the pull out

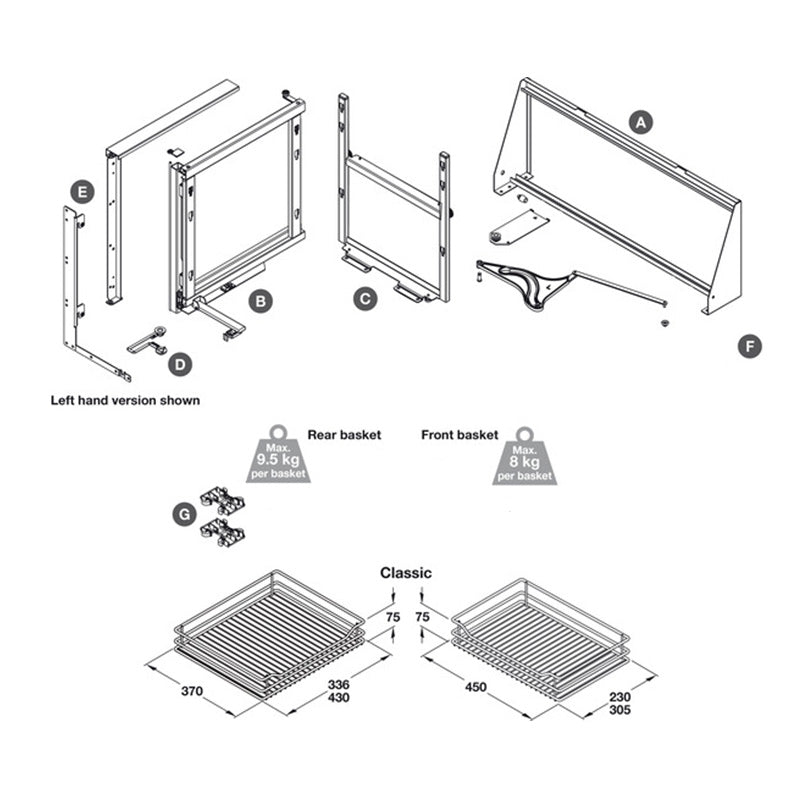

Supplied with:

• Rear hanging frame and base mounting track.

• Door frame with pivot.

• Back frame.

• Door frame follower.

• Door panel hanging plates.

• Fixing screws and fitting instructions.

• Basket set that includes 2 Storage baskets (rear) and 2 Storage baskets (door).

• Fixings.

• Application: 800mm corner base cabinet with 400mm Left Hand Door.

• Installation: Screw fixing

• Application: Base Unit for door front fixing

• Internal cabinet depth: 485 mm

• Internal cabinet Height: 530 mm

• Load bearing capacity: 8 kg per front basket, 9.5 kg per rear basket

• Material: Shelves: Metal sides and base

• Finish: Lava grey sides and base

• Guarantee: 10 years
