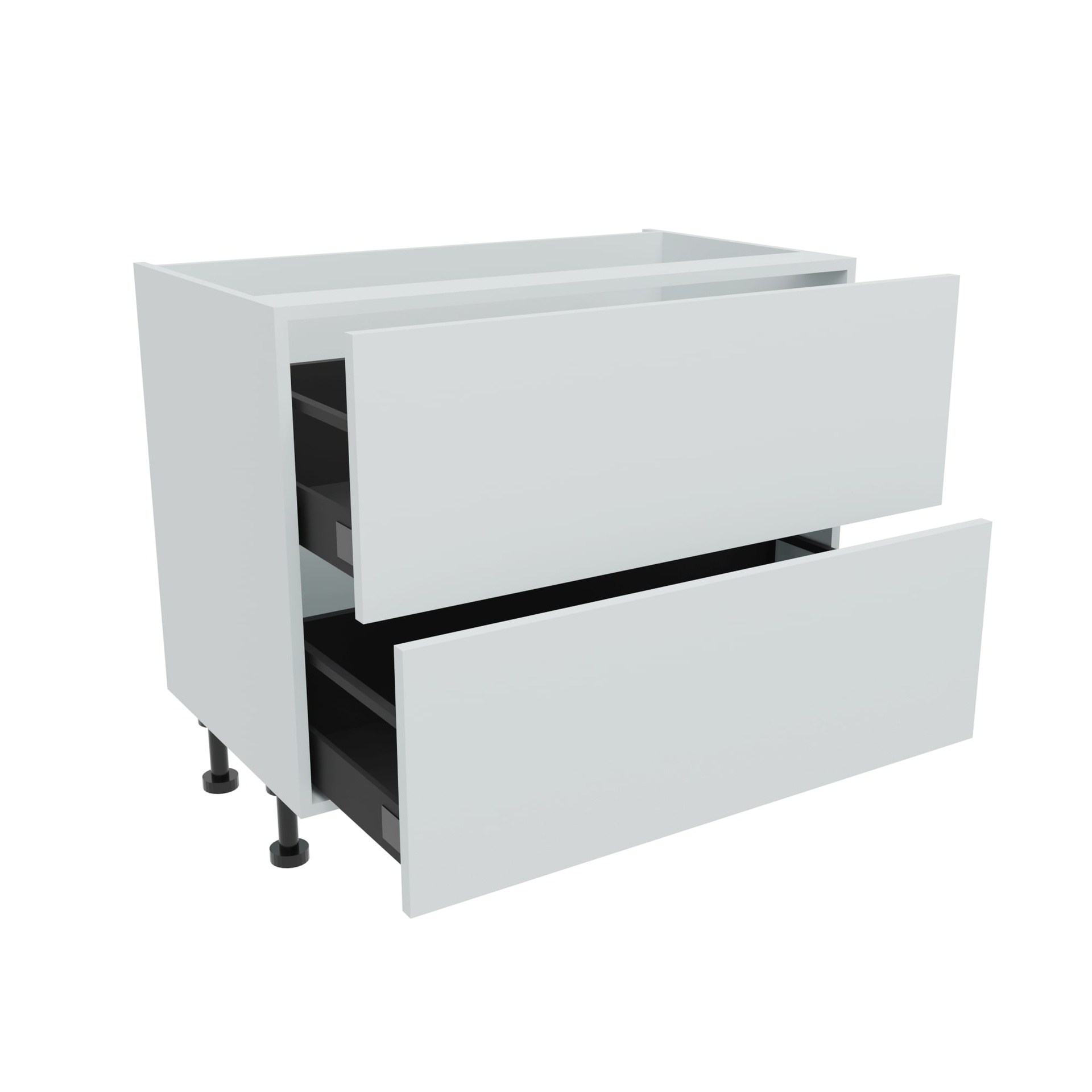

1000mm 2 Drawer Base Unit

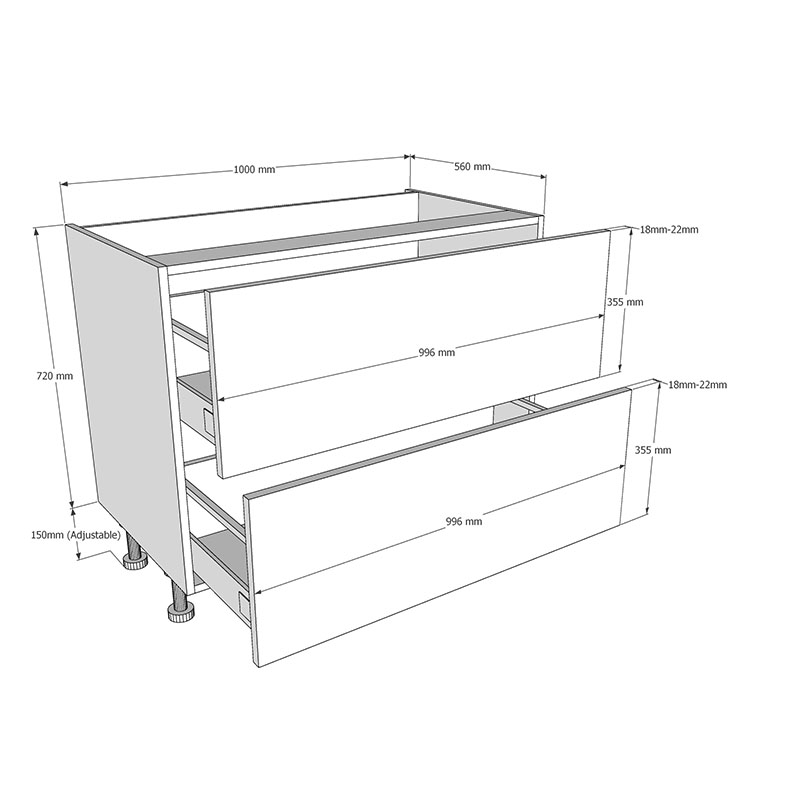

Width: 1000mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Standard 2 drawer base unit supplied with two 355 x 996mm drawer fronts. Legs and Soft Close drawer fittings
included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close drawer fittings.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
