1000mm True Handleless Highline Corner Base Unit - Magic Corner - 500mm Door (Right Blank)
Dimensions, Notes & Advice

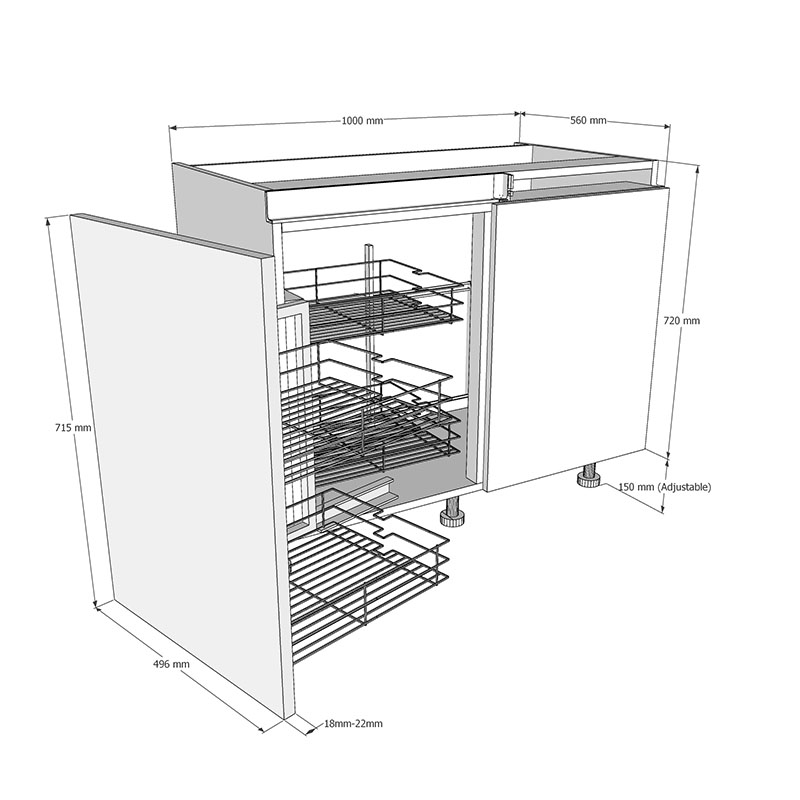

Height:
720mm + 150mm Legs
Width: 1000mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:
Width: 1000mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:

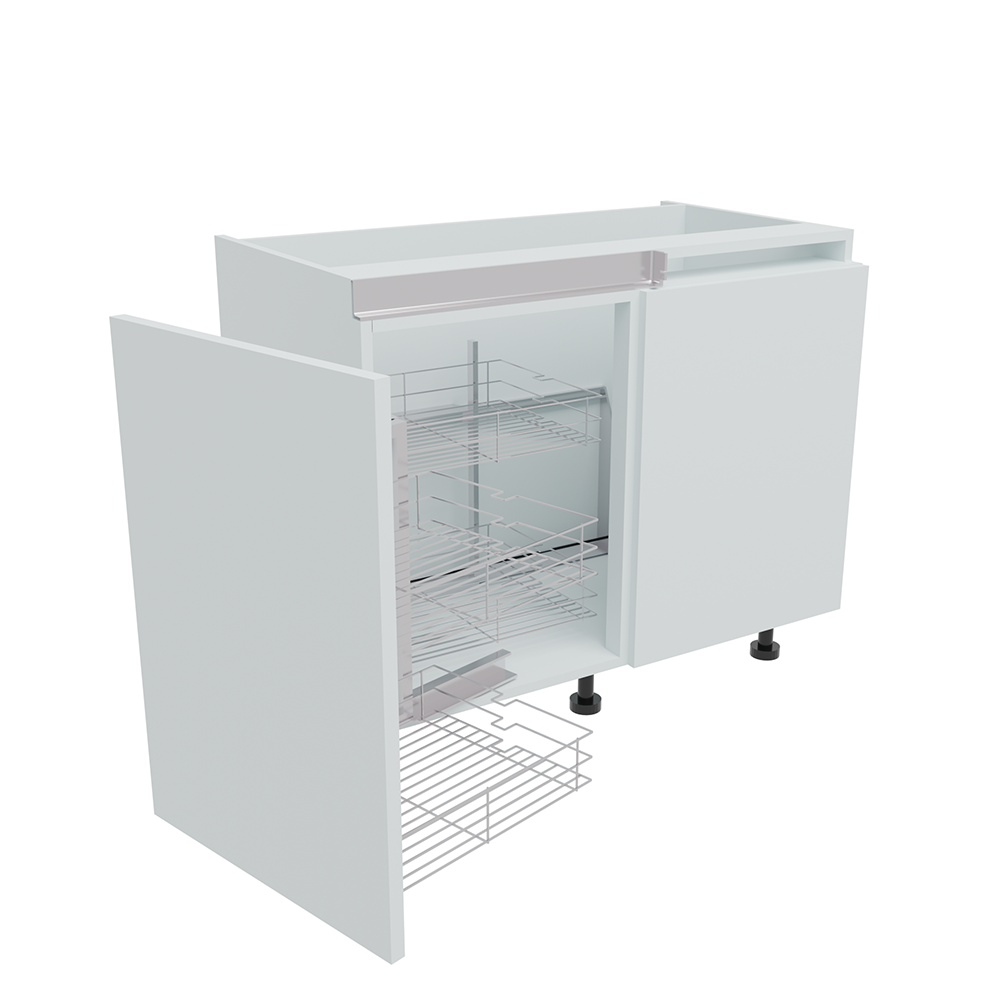

Our True Handleless Highline Corner Base Units are the king of adjustable corner units, suitable for almost every corner option.
This unit is supplied with a door in your chosen style and colour as well as a 70x70mm two part Adjustable Corner Post that is the same height as the true handleless door to allow for adjustments onsite and the continuous rail look that true handleless is known for.
Soft Close Hinges are included as standard.
Cabinet
18mm thick MFC in your chosen colour with a 2mm PP front edge.
18mm Blanking panel to match your carcase colour.
Magic Corner Pull out Shelving Mechanism included, get it fitted by a BK proffesional
42mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges as standard
18mm Blanking panel to match your carcase colour.
Magic Corner Pull out Shelving Mechanism included, get it fitted by a BK proffesional
42mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges as standard
Fitting
Corner Units are always installed with a void to allow for maximum flexibility both when installing the unit as well as optimum functionality when the unit is in use. Please see our help pages for more information on planning a corner base unit.
Depending on your chosen door style and your plan, corner posts sometimes need to be cut to size, both height and width. Each kitchen is unique and requires its own consideration. If you have any questions do not hesitate to get in touch with our team.
This unit requires the use of our true handleless rail system available in multiple colours, Sold Seperatly
