website(1,) 1000mm True Handleless Highline Corner Base Unit LH Door - 550mm Door


1000mm True Handleless Highline Corner Base Unit - 550mm Door (Right Blank)

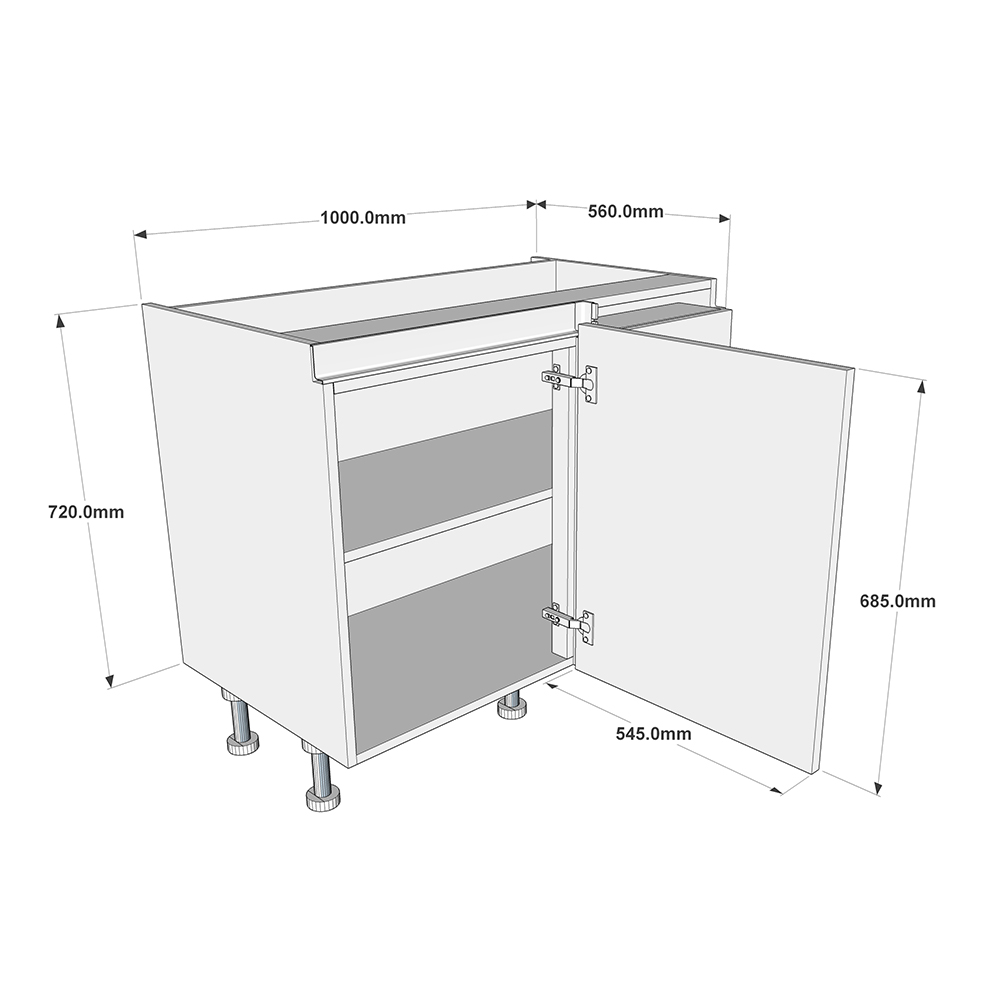

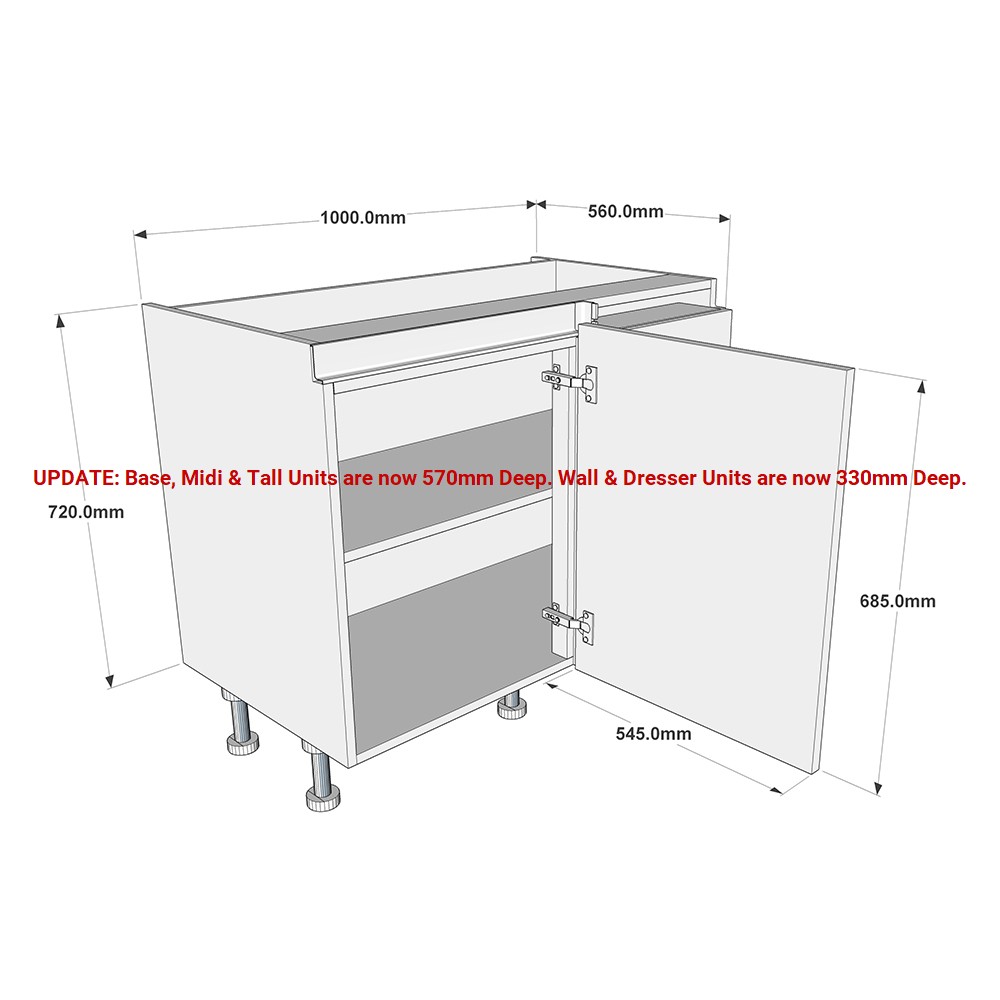

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 1000mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:


Soft Close Hinges x 2

Component Price: £ 5.81 £ 3.48

Blanking Panel

Component Price: £ 25.56 £ 15.34
Show Components
Oops! The required Door/Drawer Size is not available in this range

Assembly Options

Show Assembly Option Details
Total Price

£ 210.69 £ 126.41

( £ 105.34 Ex. Vat)

126.41 GBP Kitchen Unit 2GBC100(550)RHB

Availability: Made to Order
DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

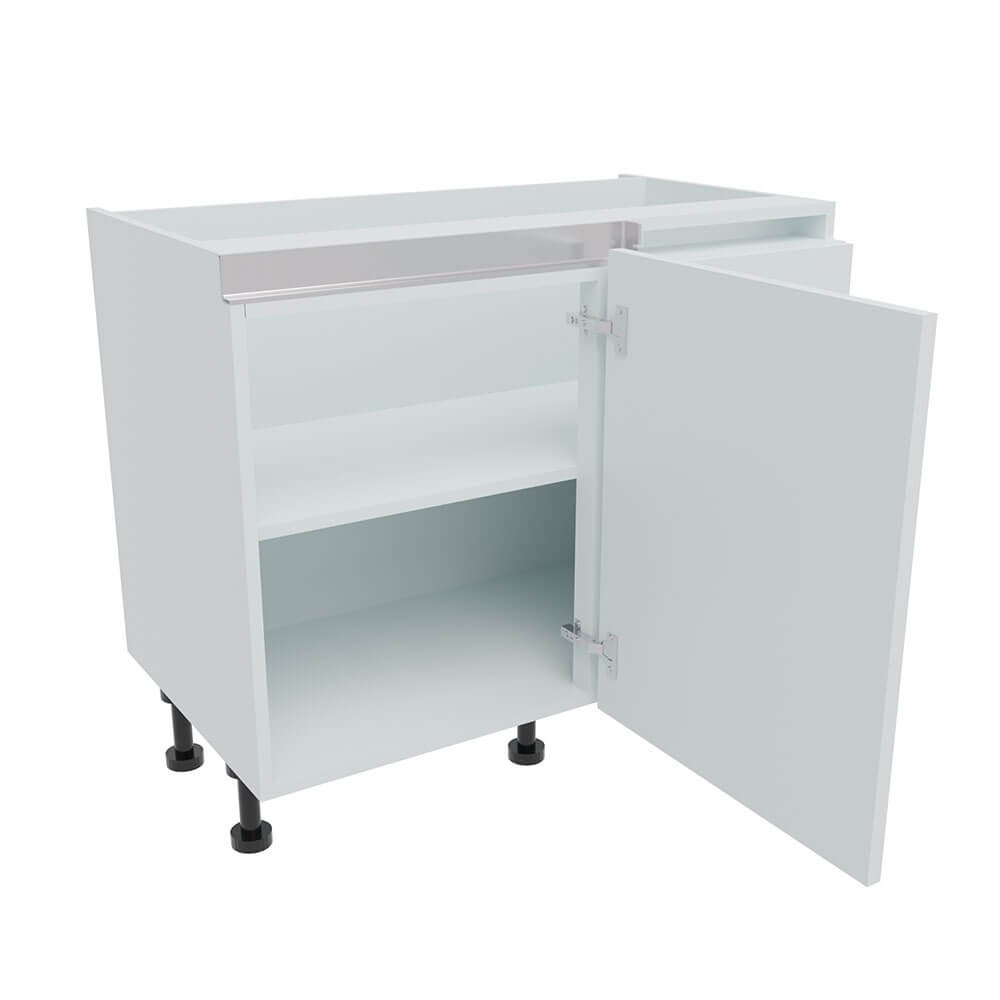

Our True Handleless Highline Corner Base Units are the king of adjustable corner units, suitable for almost every corner option.
This unit is supplied with a door in your chosen style and colour as well as a 70x70mm two part Adjustable Corner Post that is the same height as the true handleless door to allow for adjustments onsite and the continuous rail look that true handleless is known for.
Soft Close Hinges are included as standard.

18mm thick MFC in your chosen colour with a 2mm PP front edge.
18mm Blanking panel to match your carcase colour.
42mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges as standard

Corner Units are always installed with a void to allow for maximum flexibility both when installing the unit as well as optimum functionality when the unit is in use. Please see our help pages for more information on planning a corner base unit.
Depending on your chosen door style and your plan, corner posts sometimes need to be cut to size, both height and width. Each kitchen is unique and requires its own consideration. If you have any questions do not hesitate to get in touch with our team.
This unit requires the use of our true handleless rail system available in multiple colours, Sold Seperatly
Delivery costs vary and are calculated in the basket and is based on your delivery Postcode.
Your delivery options and delivery dates will be available in the checkout and are based on the delivery postcode.
See our delivery page for further details.
