website(1,) 1000mm True Handleless Highline Corner Base Unit - Magic Corner - 600mm RH Hand Door


1000mm True Handleless Highline Corner Base Unit - Magic Corner - 600mm Door (Left Blank)

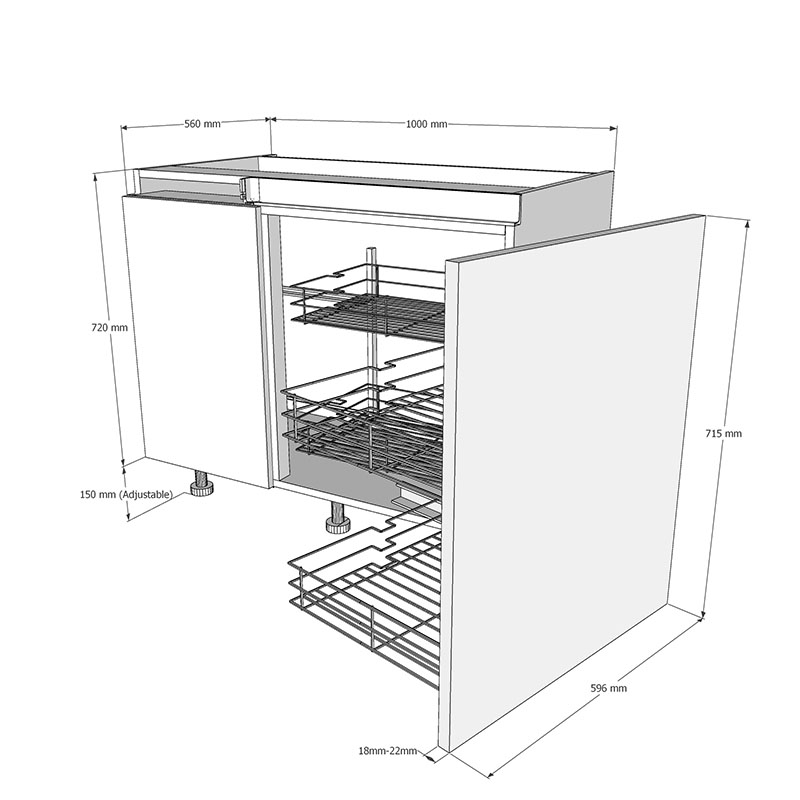

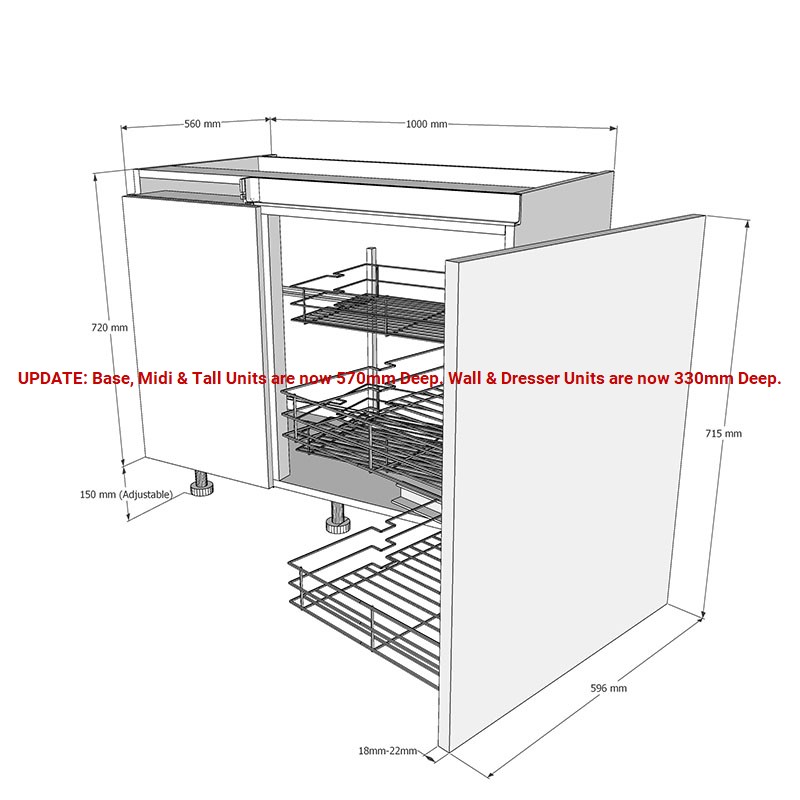

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 1000mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:


Blanking Panel

Component Price: £ 25.56 £ 15.34

Magic Swing Out Corner Mechanism

Component Price: £ 375.97 £ 225.59
Show Components
Oops! The required Door/Drawer Size is not available in this range

Assembly Options

Show Assembly Option Details

Extra Options

Total Price

£ 580.85 £ 348.52

( £ 290.43 Ex. Vat)

348.52 GBP Kitchen Unit 2GBC100(600)MAGRHB

DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

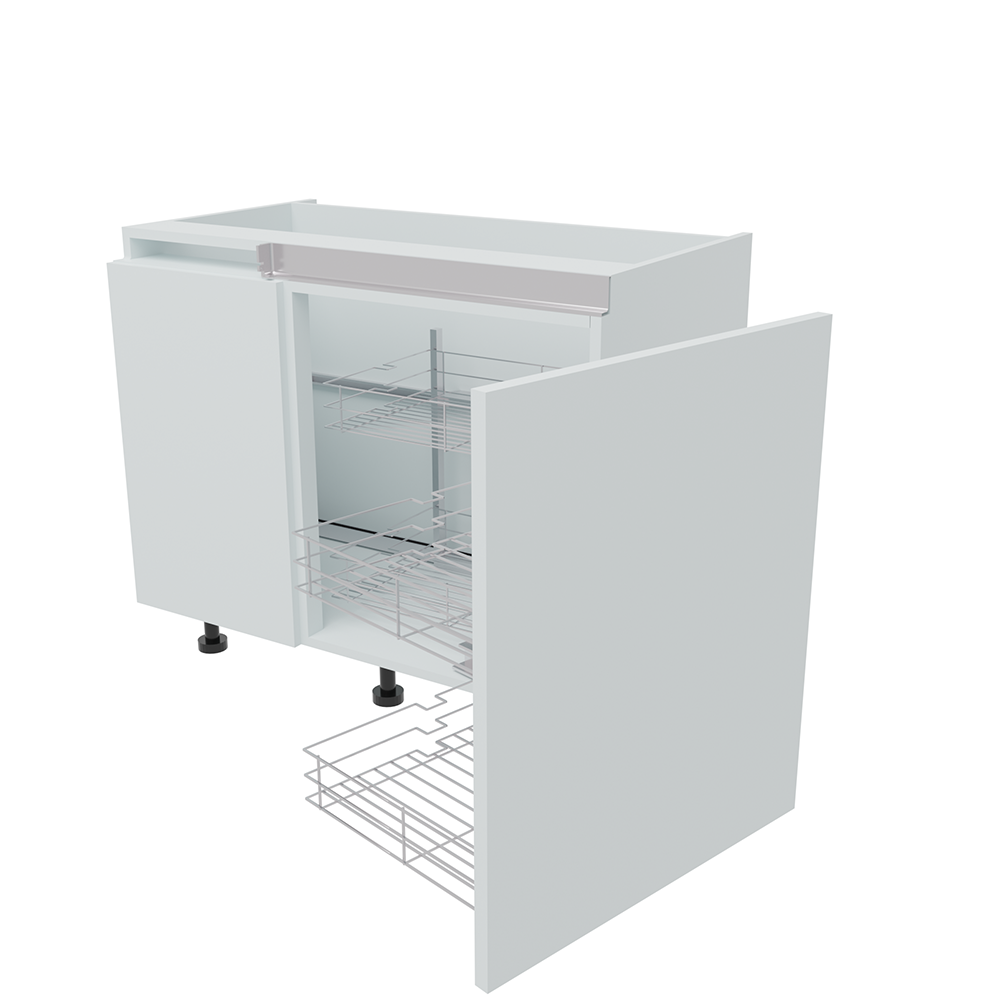

Our True Handleless Highline Corner Base Units are the king of adjustable corner units, suitable for almost every corner option.
This unit is supplied with a door in your chosen style and colour as well as a 70x70mm two part Adjustable Corner Post that is the same height as the true handleless door to allow for adjustments onsite and the continuous rail look that true handleless is known for.
Soft Close Hinges are included as standard.

18mm thick MFC in your chosen colour with a 2mm PP front edge.
18mm Blanking panel to match your carcase colour.
Magic Corner Pull out Shelving Mechanism included, get it fitted by a BK proffesional
42mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges as standard

Corner Units are always installed with a void to allow for maximum flexibility both when installing the unit as well as optimum functionality when the unit is in use. Please see our help pages for more information on planning a corner base unit.
Depending on your chosen door style and your plan, corner posts sometimes need to be cut to size, both height and width. Each kitchen is unique and requires its own consideration. If you have any questions do not hesitate to get in touch with our team.
This unit requires the use of our true handleless rail system available in multiple colours, Sold Seperatly
