website(1,) 800mm True Handleless Highline Corner Base Unit - Magic Corner - 400mm RH Hand Door

FLASH SALE - 40% + EXTRA 10% OFF ALL KITCHENS​ ​ ​

800mm True Handleless Highline Corner Base Unit - Magic Corner - 400mm Door (Left Blank)

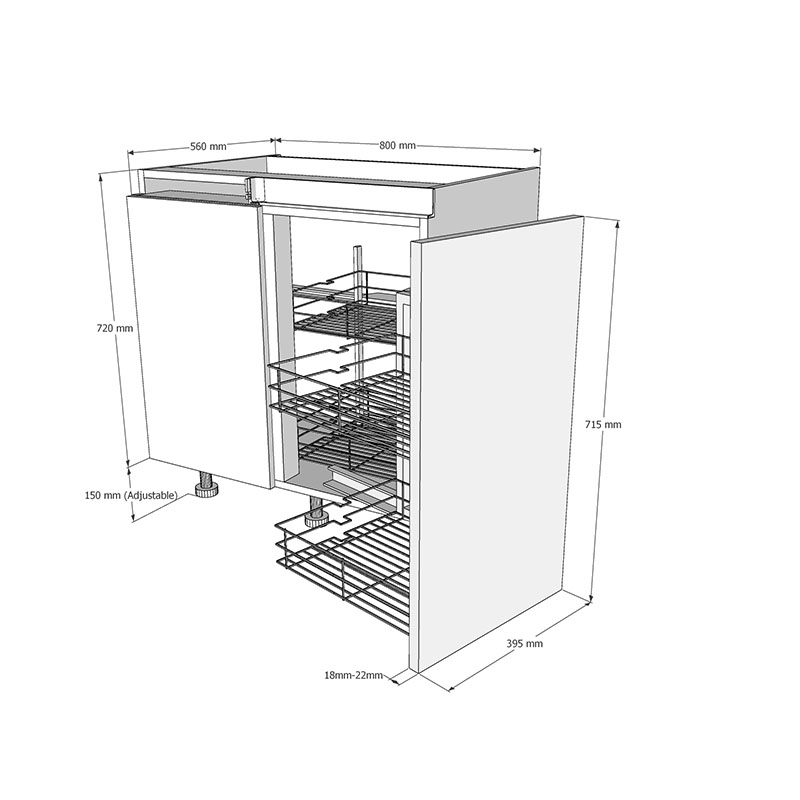

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 800mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:

Fittings:

Blanking Panel

Component Price: £ 25.56 £ 15.34
Included

Planero Swing Out Corner Mechanism

Component Price: £ 635.81 £ 381.48
Included
Show Components
Oops! The required Door/Drawer Size is not available in this range
Options

Assembly Options

Show Assembly Option Details

Extra Options

Total Price

£ 830.03 £ 498.02

( £ 415.01 Ex. Vat)

498.02 GBP Kitchen Unit 2GBC80(400)MAGRHB

DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

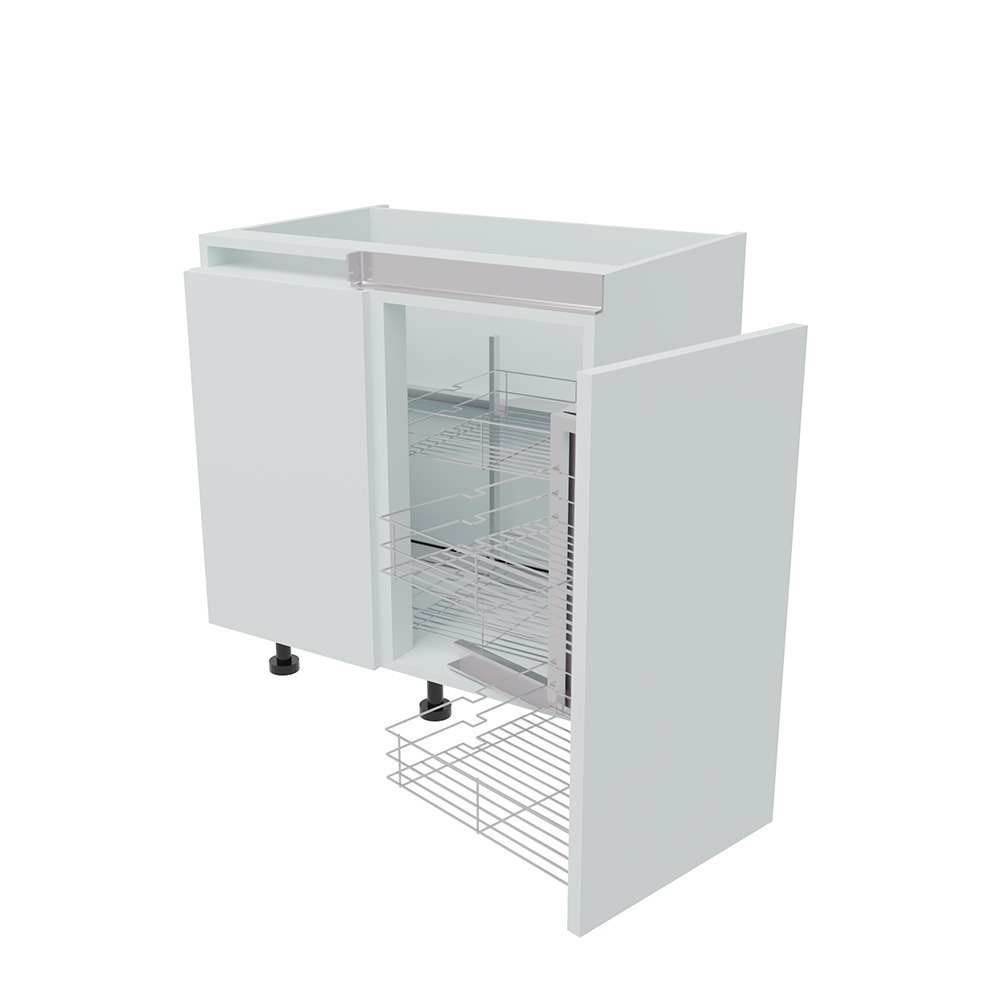

Our True Handleless Highline Corner Base Units are the king of adjustable corner units, suitable for almost every corner option.
This unit is supplied with a door in your chosen style and colour as well as a 70x70mm two part Adjustable Corner Post that is the same height as the true handleless door to allow for adjustments onsite and the continuous rail look that true handleless is known for.
Soft Close Hinges are included as standard.

Cabinet Specification

18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges Included.
Quick Fix Brackets - for true handleless Profile Included.
True Handleless Rail System sold separately.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

This Carcase is designed to accept the True Handleless Rail System.
