Return to all units

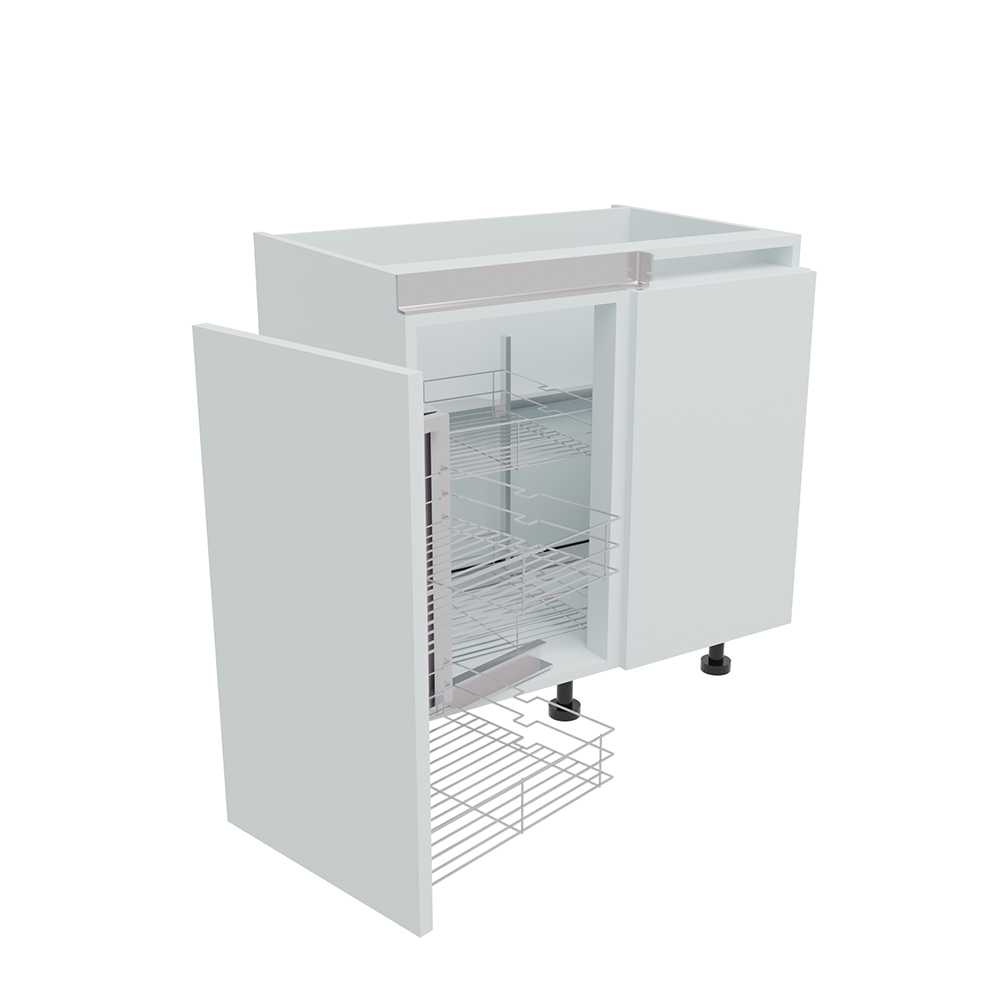

800mm True Handleless Highline Corner Base Unit - Magic Corner - 400mm Door (Right Blank)

WAS  £ 937.03
£ 562.21  inc VAT
562.21 GBP Kitchen Unit 2GBC80(400)MAGLHB

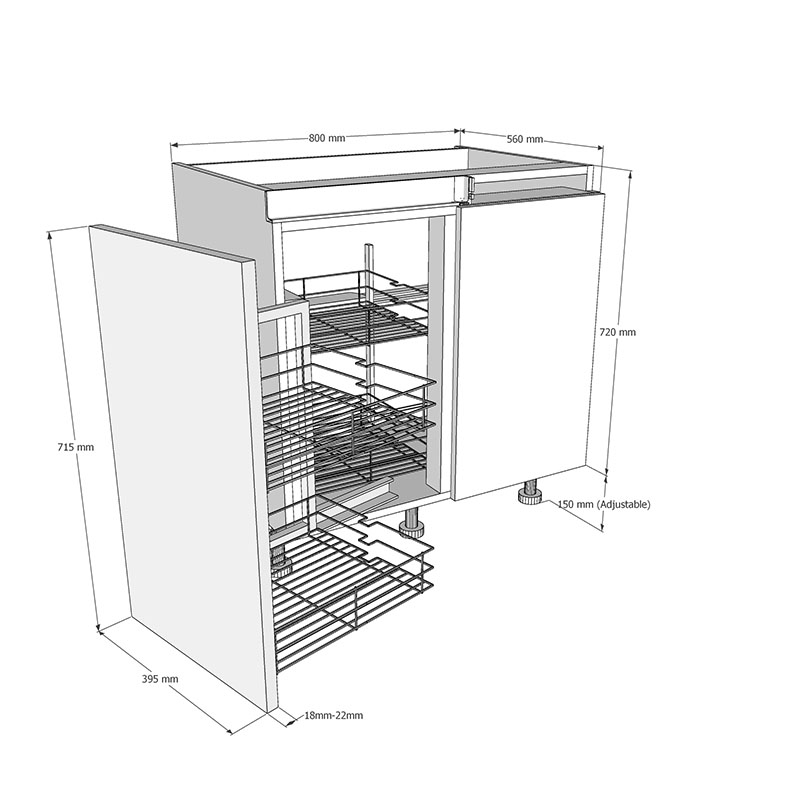

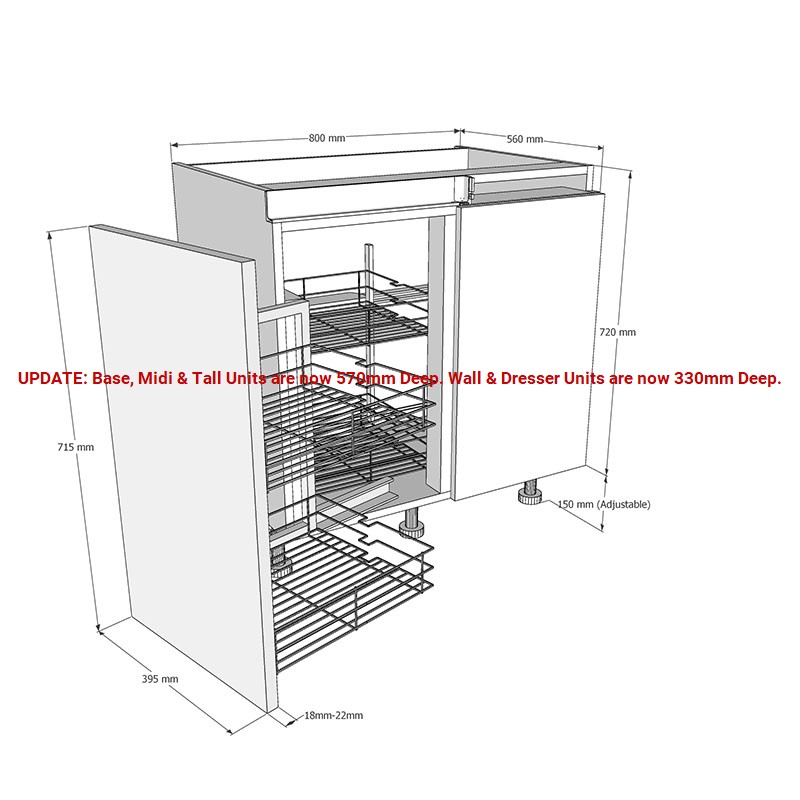

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 800mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:

Today’s Price

WAS  £ 937.03
£ 562.21  inc VAT
562.21 GBP Kitchen Unit 2GBC80(400)MAGLHB

Configure Your Cabinet
Door style & colour

Components fitted to this unit:

Fittings:

Blanking Panel

Component Price: £ 29.51 £ 17.70 GBP 24.59
Included

Planero Swing Out Corner Mechanism

Component Price: £ 712.80 £ 427.68 GBP 594.0
Included
Oops! The required Door/Drawer Size is not available in this range
Cabinet colour

Carcase Colour: None

(change colour)

Assembly

Optional

Price Each

Have Better Kitchens professionally install this Corner Mechanism (Fully Assembled Option Only)

No

Yes

£ 60.00 £ 36.00 GBP

Show Components

Included

Price Each

Carcase Price
£ 194.72 £ 116.83
Blanking Panel
£ 29.51 £ 17.70
Planero Swing Out Corner Mechanism
£ 712.80 £ 427.68

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Unit Detail

800mm True Handleless Highline Corner Base Unit - Magic Corner - 400mm Door (Right Blank)
Complete premium kitchen cabinet with all door fronts, soft close hinges and adjustable legs included.

Choice of 8 cabinet colours.

Available fully assembled by our team of experts at no extra cost.

Cabinet Specification

18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges Included.
Quick Fix Brackets - for true handleless Profile Included.
True Handleless Rail System sold separately.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

This Carcase is designed to accept the True Handleless Rail System.
Magic Swing Out Corner Mechanism- To Suit 800mm Unit with 400mm Door - Left Hand
