900mm True Handleless Highline Corner Base Unit LH Door - 450mm Door

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 900mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:

Fittings:

Soft Close Hinges x 2

Component Price: £ 5.81 £ 4.64
Included

Blanking Panel

Component Price: £ 19.39 £ 15.52
Included
Show Components
Oops! The required Door/Drawer Size is not available in this range
Options

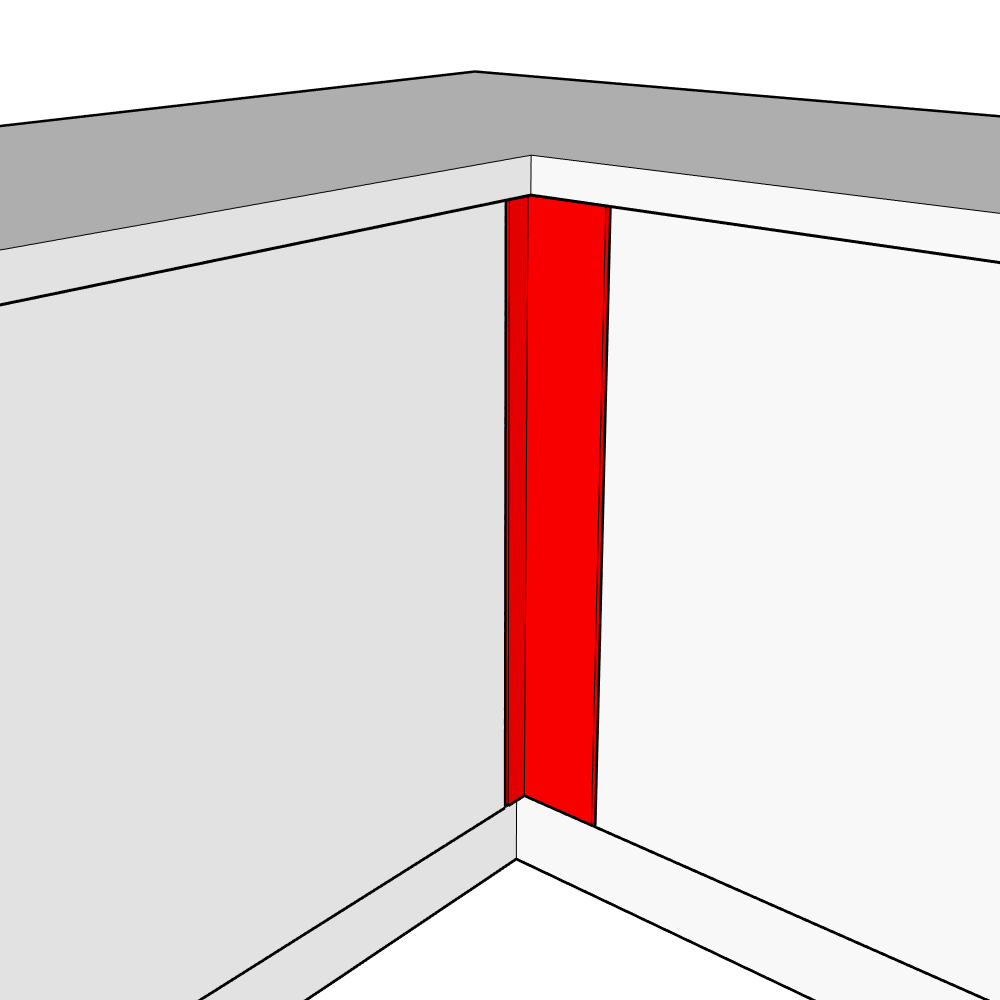

Corner Posts

Cut to size onsite to suit from 20 -100mm wide.
Fixed size, 60-70mm wide depending on the kitchen style chosen.
Show Corner Posts Details

Assembly Options

Fully Assembled units are supplied ready to fit with any hinges, drawer mechanisms and fronts already attached.
Flatpack units need a kitchen installer or experienced DIY'er to assemble as only generic instructions supplied.
Learn more about Assembly Options
Show Assembly Option Details
Total Price

£ 244.75 £ 195.80

( £ 163.17 Ex. Vat)

Availability: Made to Order
DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

900mm True Handleless Highline Corner Base Unit LH Door - 450mm Door

True Handleless highline corner base unit supplied with a 685 x 446mm Door in your chosen style and colour. This unit is also supplied with a suitable door in your chosen door style and colour to be cut on site to create a flexible corner post to suit your measurements. Legs and Soft Close Hinges included. True Handleless Rail System sold separately.

Cabinet Specification

18mm thick colour matched cabinet (where possible). Dooring Panel, colour matched (where possible). 47mm Service Void. 150mm Plastic Legs (adjustable from 140-160mm). Soft Close Hinges. True Handleless Rail System sold separately.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

This Carcase is designed to accept the True Handleless Rail System.
