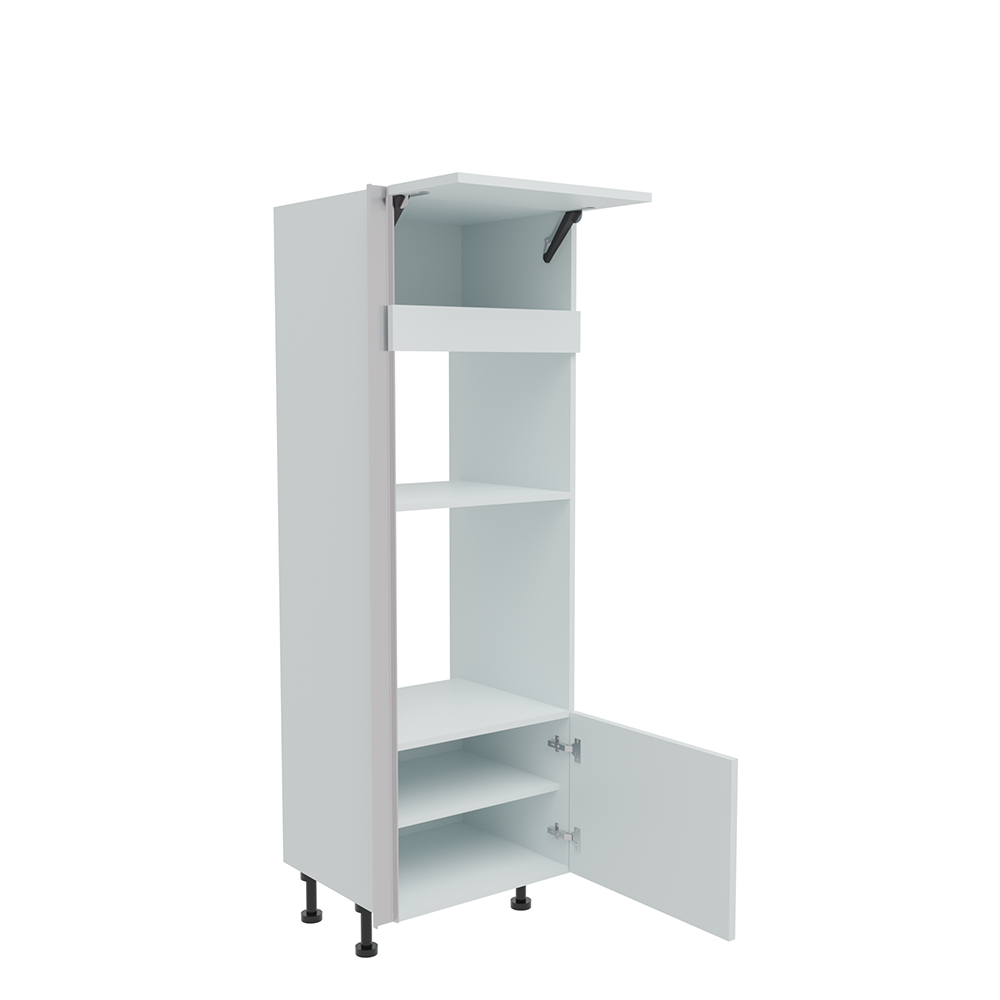

600mm True Handleless Tall Single Oven & Microwave Oven Housing - RH Hinge (Low)

600mm True Handleless Tall Single Oven & Microwave Oven Housing - RH Hinge - Low

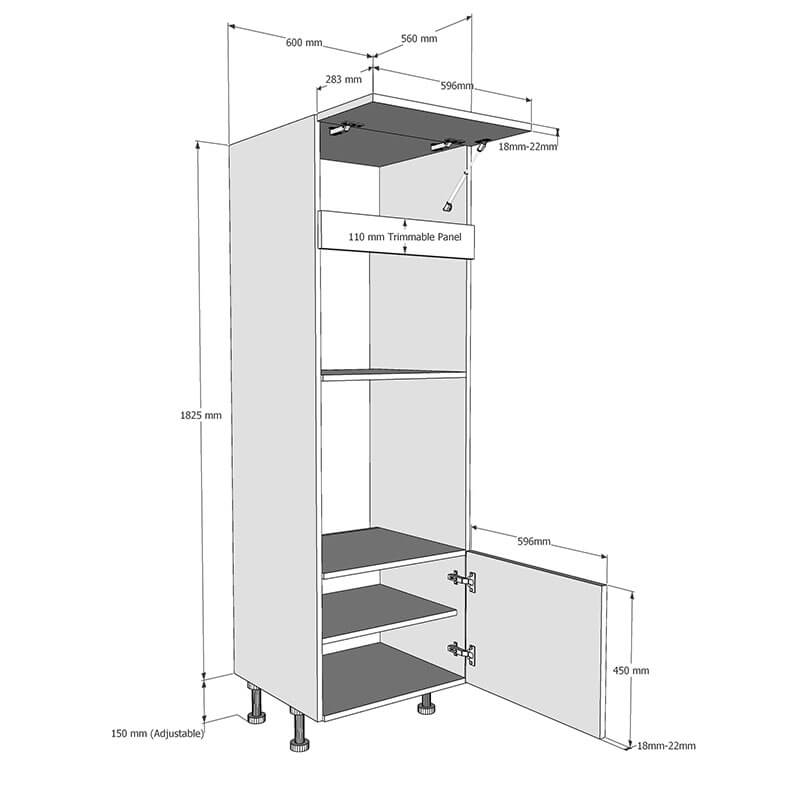

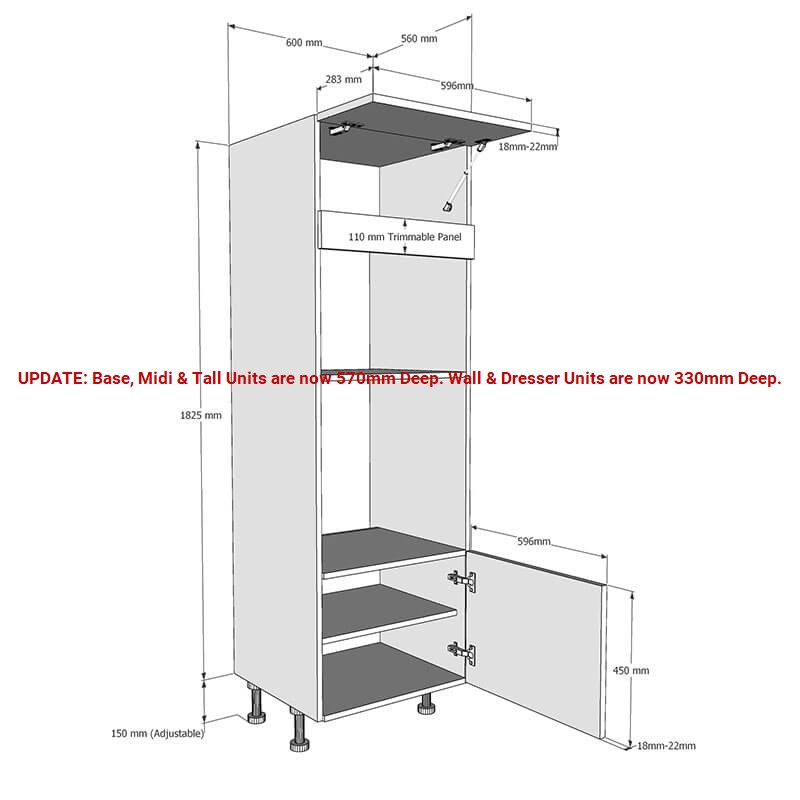

Low height Single oven and microwave  housing  unit supplied with a 283 x 596mm top hung door & a 450 x 596mm Side hung door in your chosen style and colour. A 110 x 596 Filler Panel is also supplied. Legs and Soft Close Hinges are included.

Cabinet Specification

18mm thick colour matched cabinet (where possible).

47mm Service Void.

150mm Plastic Legs (adjustable from 140-160mm).

Soft Close Hinges.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

The 110mm Filler Panel is to be cut down on site after the appliance has been fitted to suit.
