600mm True Handleless 70/30 Fridge Freezer Housing - LH Hinge (High)

DESIGN UPDATE: All tall fridge and freezer housings are now supplied with predefined shelf positions that make lining up the doors of tall integrated refrigeration appliances easier than ever. Supplied in flatpack form to allow you to choose the best shelf position for your chosen appliance.

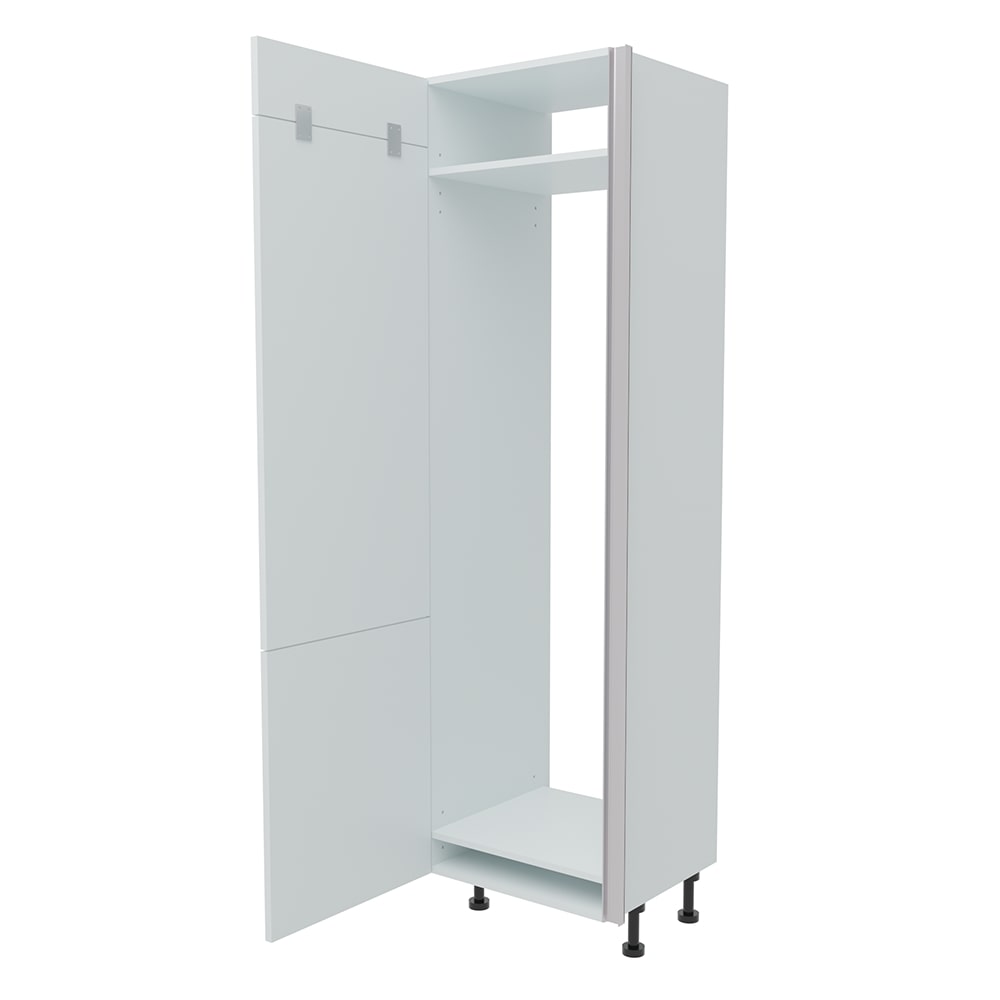

600mm True Handleless 70-30 Fridge Housing - Left Hand Hinge (High)

True Handleless High height Fridge freezer housing unit to suit a 70/30 split fridge. Supplied with a 175 x

596mm, a 715 x 596mm door and a 1245 x 596mm door in your chosen style and colour. Legs and Soft Close

Hinges are included. True Handleless Rail System sold separately.

Cabinet Specification

18mm thick colour matched cabinet (where possible).

47mm Service Void.

150mm Plastic Legs (adjustable from 140-160mm).

Soft Close Hinges.

True Handleless Rail System sold separately

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the

cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the

wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

The Top 175mm High Door Will Be Plated To The 1245mm High Door.

The back panel on this unit is for support only and is to be removed on site to fit fridge freezer.

This Carcase is designed to accept the True Handleless Rail System.
