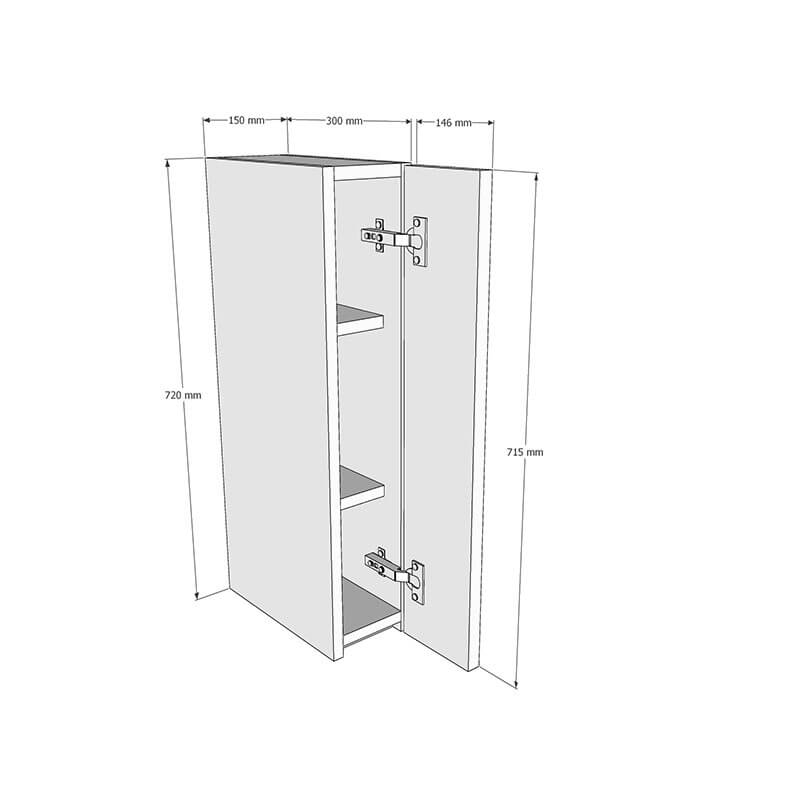

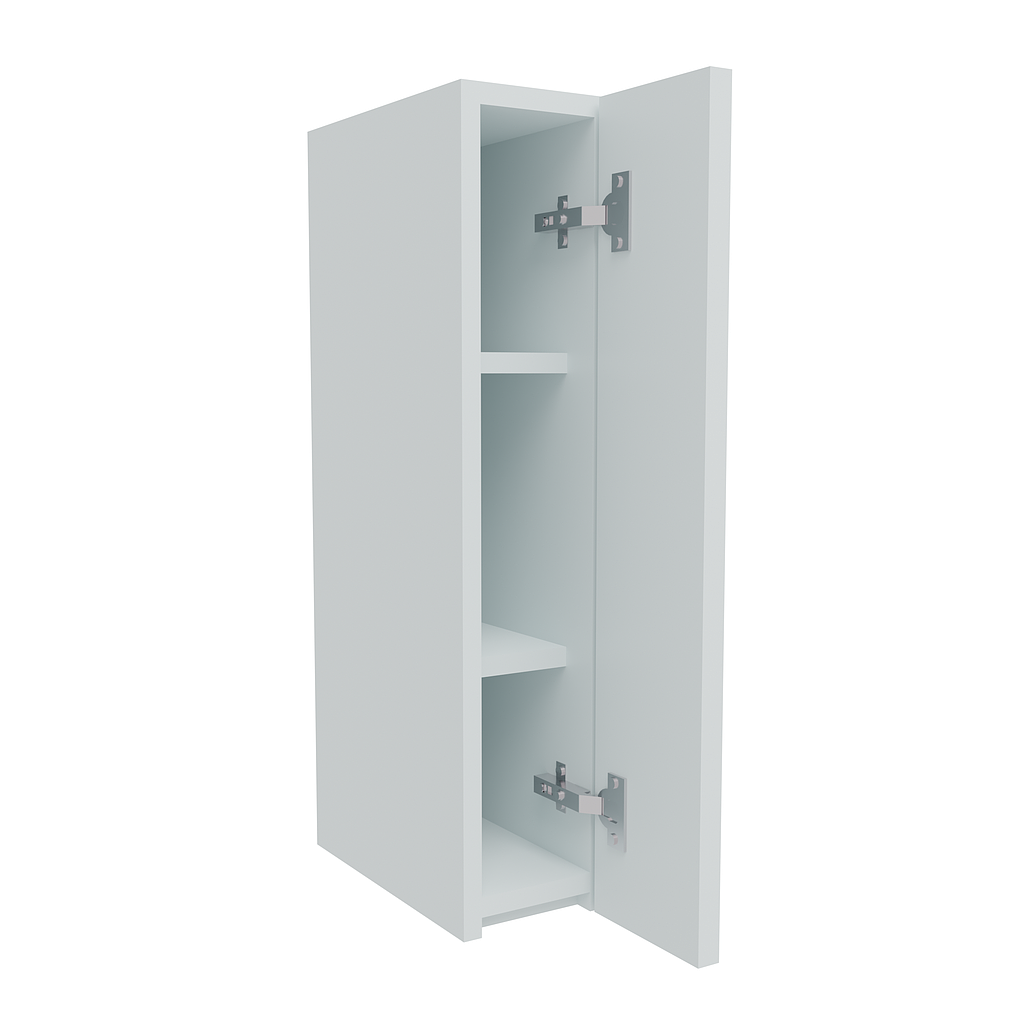

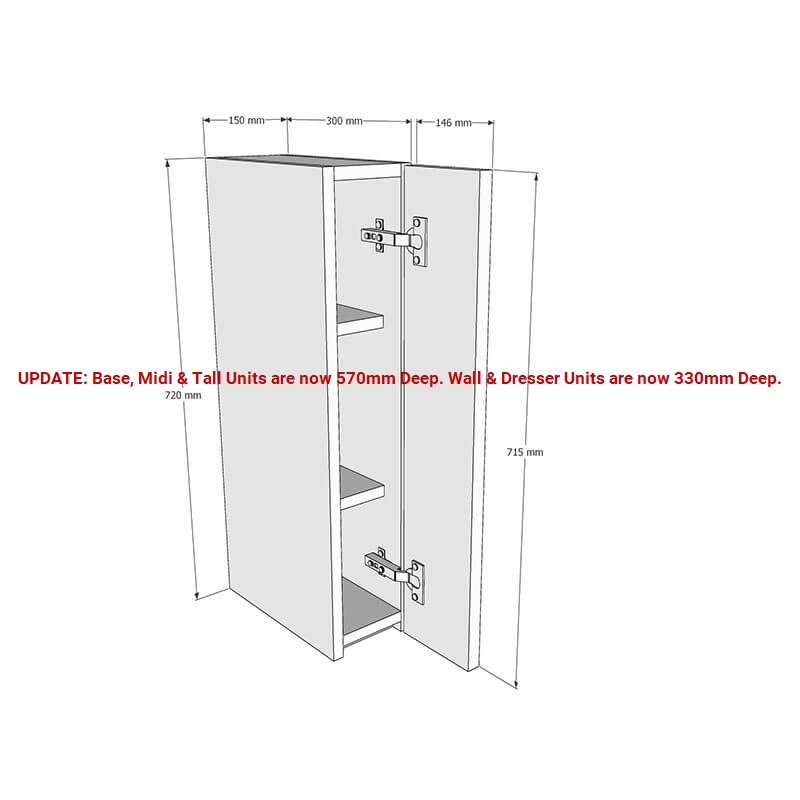

Cabinet Specification
18mm thick colour matched cabinet (where possible).
9mm Back Panel.
18mm Service Void.
Wall Hanging Brackets.
Soft Close Hinges.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None.
