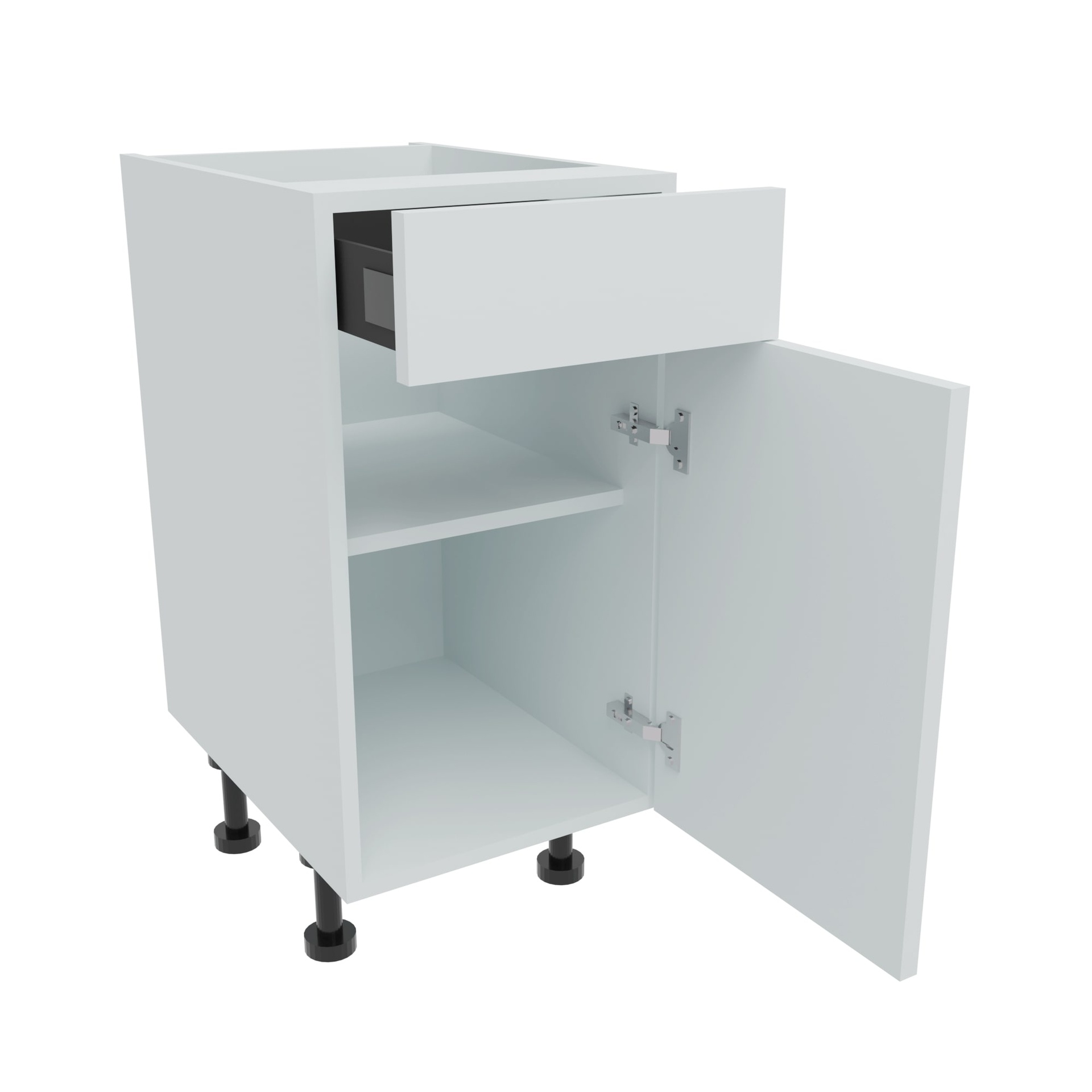

400mm Drawerline Base Unit
Unit Detail
Description

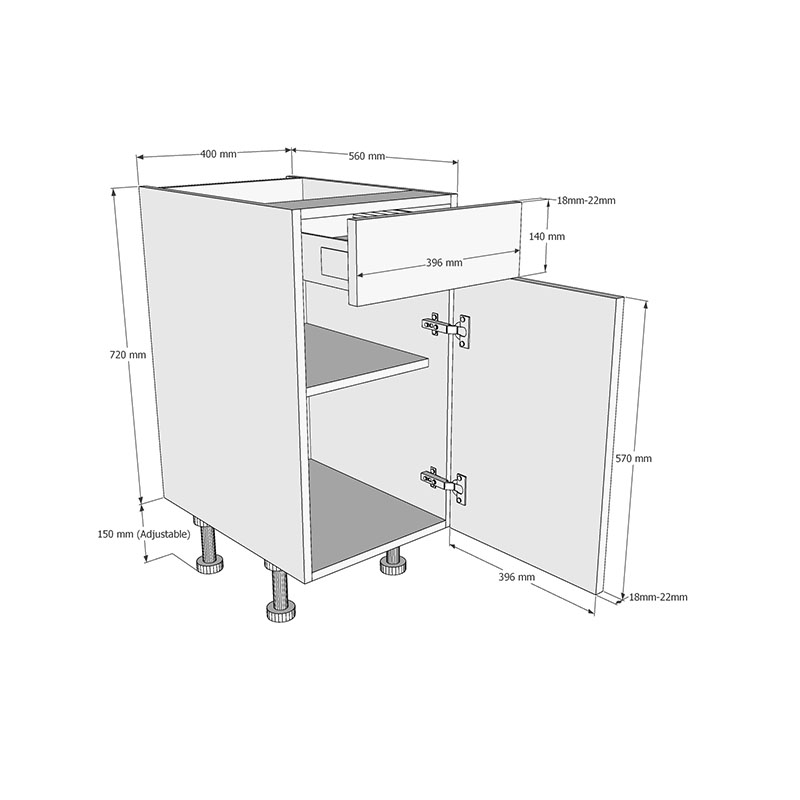

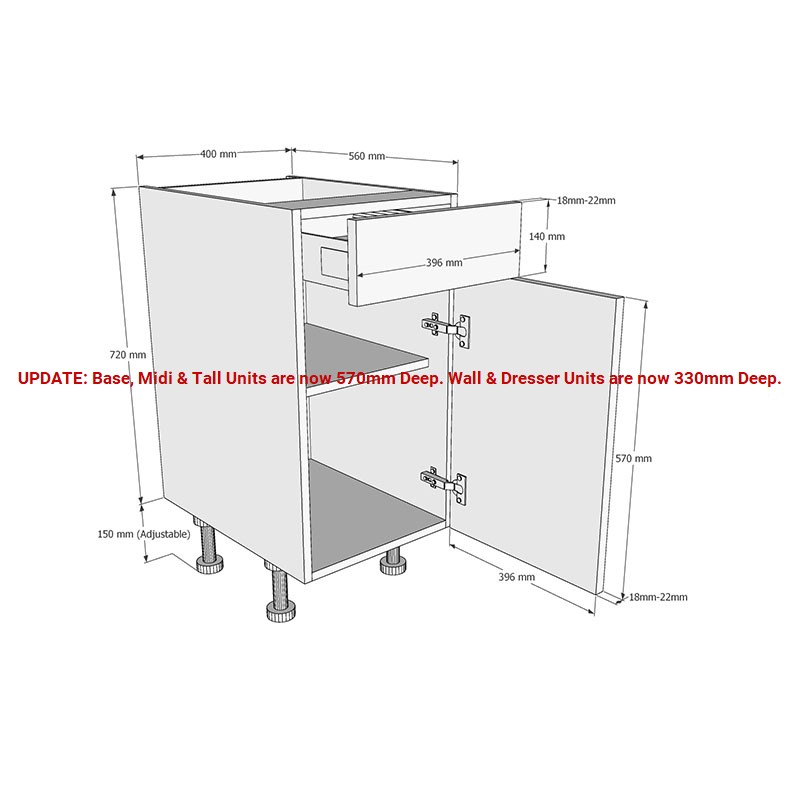

Standard Drawerline base supplied use with a 570 x 396mm doors and a 140 x 396mm drawer front in your chosen style and colour. Soft close drawer fittings , Legs and Hinges included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Specifications
Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Soft Close Drawer Fittings.
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Soft Close Drawer Fittings.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None.
