500mm Highline Sink Base Unit

Standard Sink Base Unit

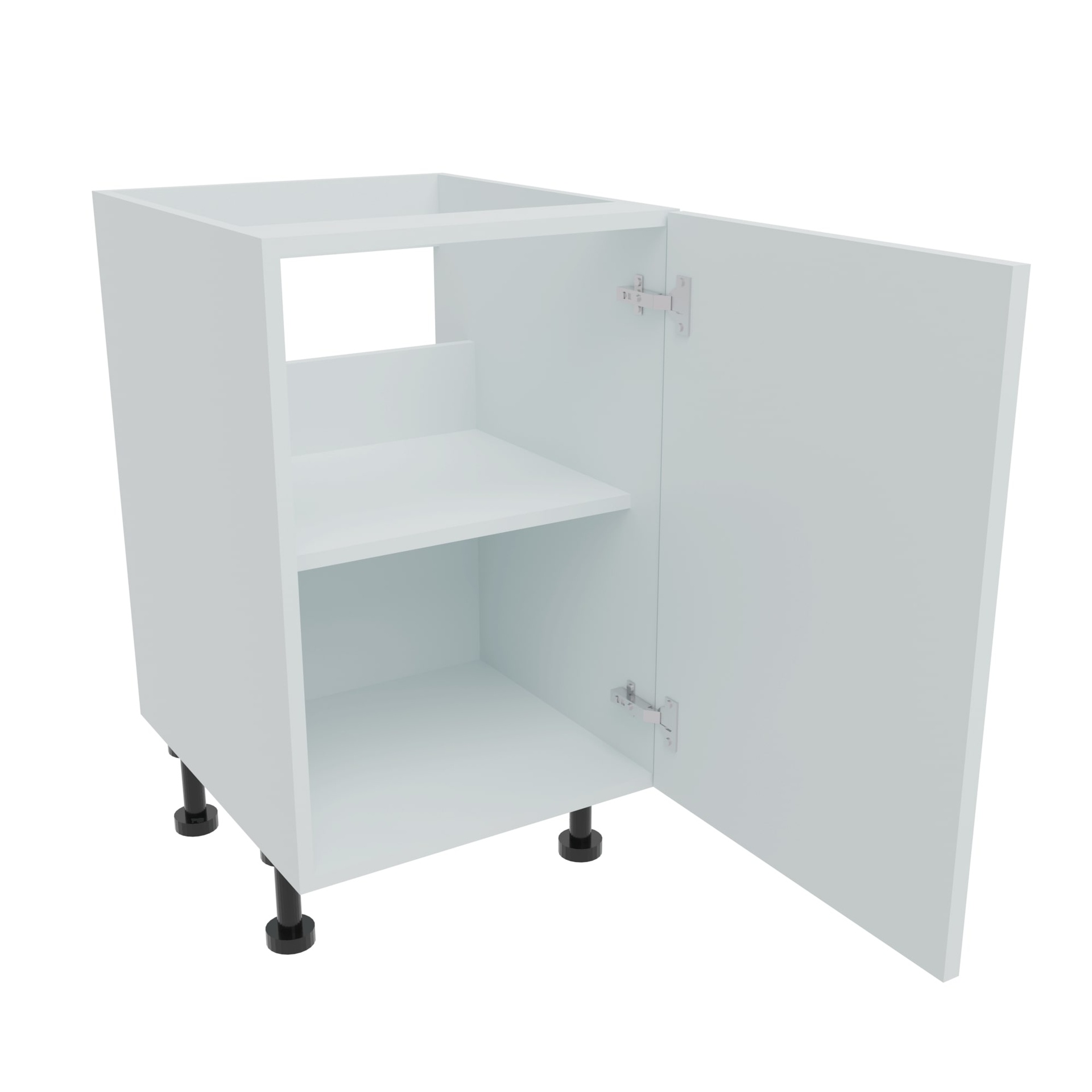

Standard sink base unit supplied with a 715 x 496mm door in your chosen style and colour. Legs and Soft Close Hinges included.

Unit Assembly Options

All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.

Lifetime Guarantee

Lifetime guarantee on all Hinges and Drawer boxes.

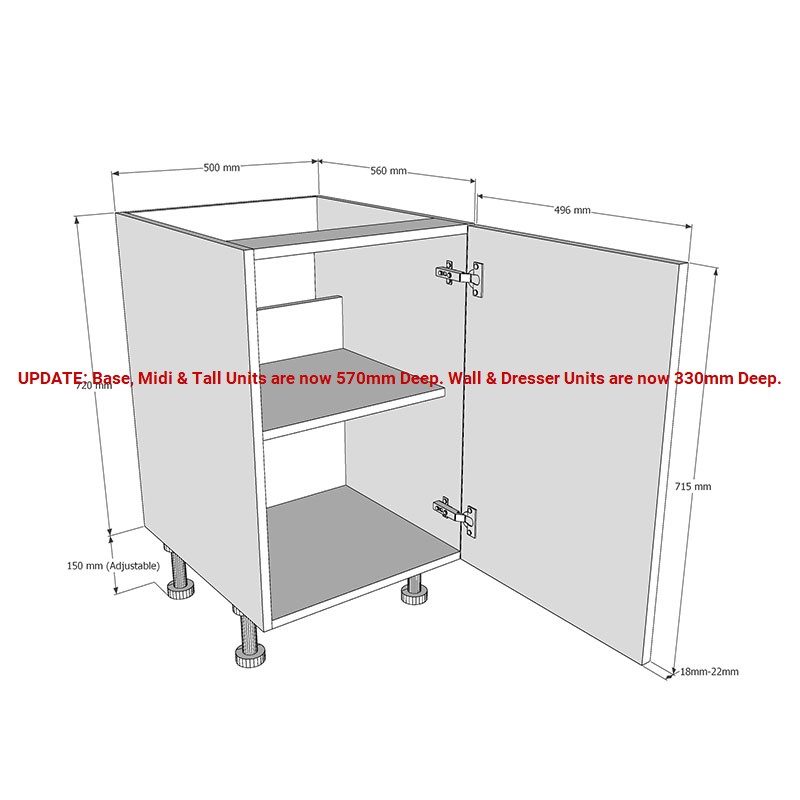

Cabinet Specification

18mm thick colour matched cabinet (where possible).
100mm Extra Deep Service Void For Easy Plumbing install
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

This unit has a lower back panel to allow for pipework while fitting your sink.
