PLANERO Universal Blind Corner Optimiser Mechanism - To Suit 1000mm Unit - 600mm wide Door -
Unit Detail
Description

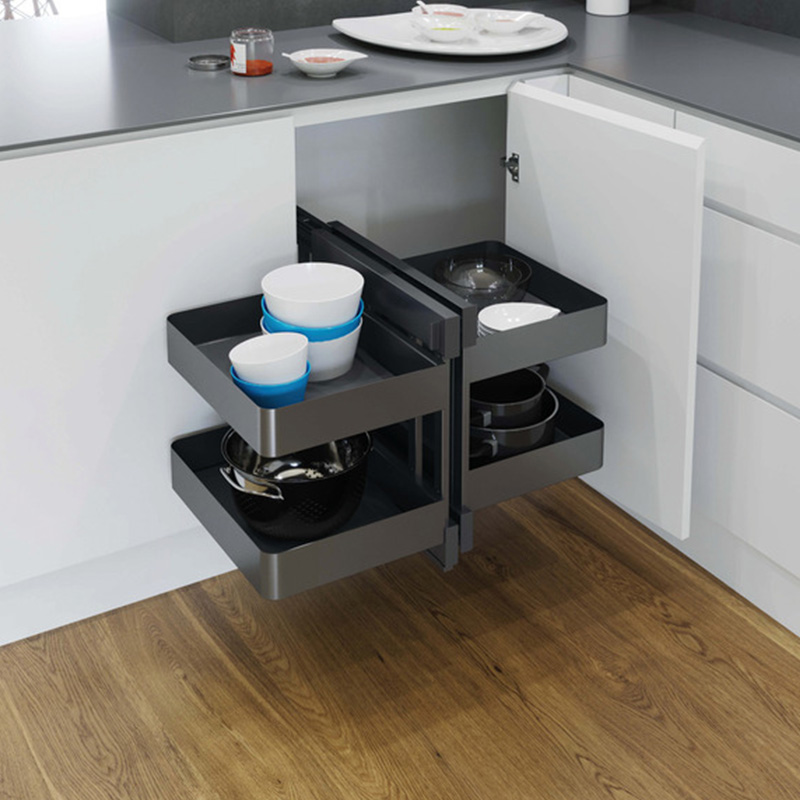

The Planero Blind Corner Optimiser by Vauth-Sagel is a great solution for those corner cabinets in your kitchen. You want to optimize the space you have, so this unit which comes complete with four baskets which fully exit the cupboard allowing full access is ideal.
Integral self and soft closing for a easy quiet operation with Planero lava grey finish trays to suit a 1000mm corner base unit with a 600mm wide centre post hinged door.
Supplied with:
1x Frame set: Hanging frames and base mounting track; silver epoxy coated tubular steel Front and back frames; silver epoxy coated tubular steel
1x Basket set:
2x Storage baskets (rear)
2x Storage baskets (door)
Fixing materials and fitting instruction
Specifications
Mounting: Unhanded to suit Left or Right handed cabinets.
Version: Base mounting, Soft & Self closing
Load bearing capacity: Max. 8 kg per basket
Internal cabinet depth: 480 mm
Internal cabinet height: 530 mm
Internal Cabinet width: 802 mm
Minimum Door Opening Width: 444 mm
Guarantee: 10 years
