600mm Classic Belfast Sink Base Unit with Door

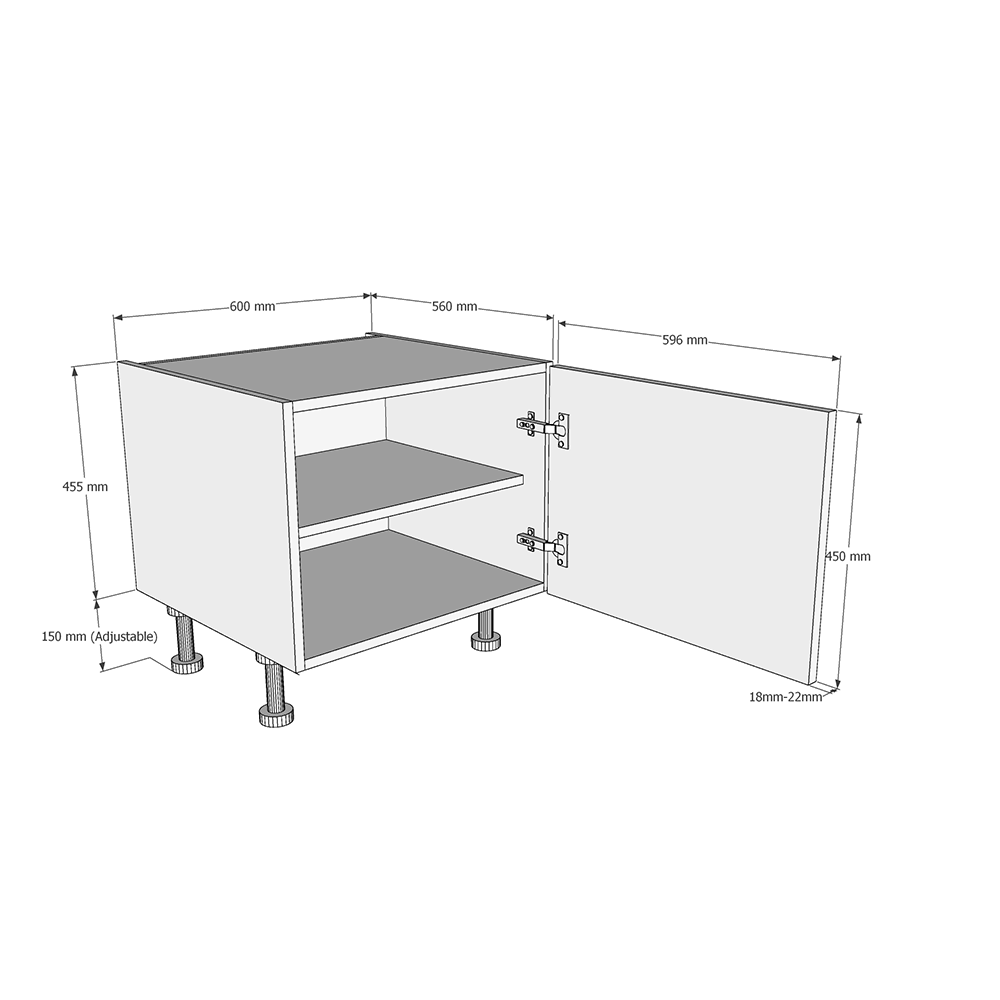

Dimensions, Notes & Advice
Height:
455mm + 150mm Legs
Width: 600mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units. This Unit is designed to be used with the Lagan 1.0 bowl Ceramic White Classic Belfast Sink
Width: 600mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units. This Unit is designed to be used with the Lagan 1.0 bowl Ceramic White Classic Belfast Sink

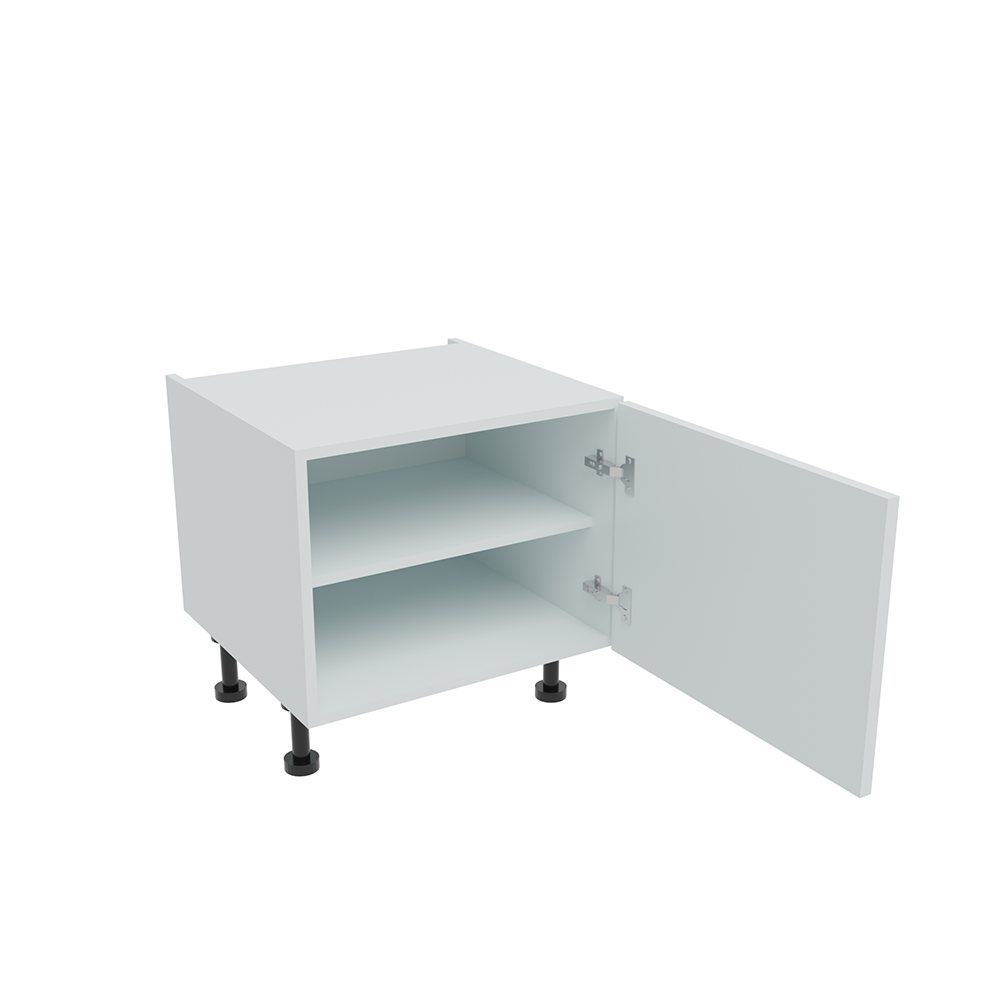

600mm Classic Belfast Base Unit with door supplied with a 450 x 596mm Door and an adjustable filler panel in your chosen style and colour. Soft Close Hinges and Legs Supplied with this unit.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges
Fitting Instructions
This unit is designed to be used with the Lagan 1.0 bowl Ceramic White Classic Belfast Sink. This may need to be raised on site and the filler provided with this unit adjusted and used to fill any space between the top of the unit and the bottom of the sink. Support under your sink may be needed on site (not supplied).
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
