600mm Tall Single Oven & Mic Housing with 2 x Drawers (Medium)
Dimensions, Notes & Advice

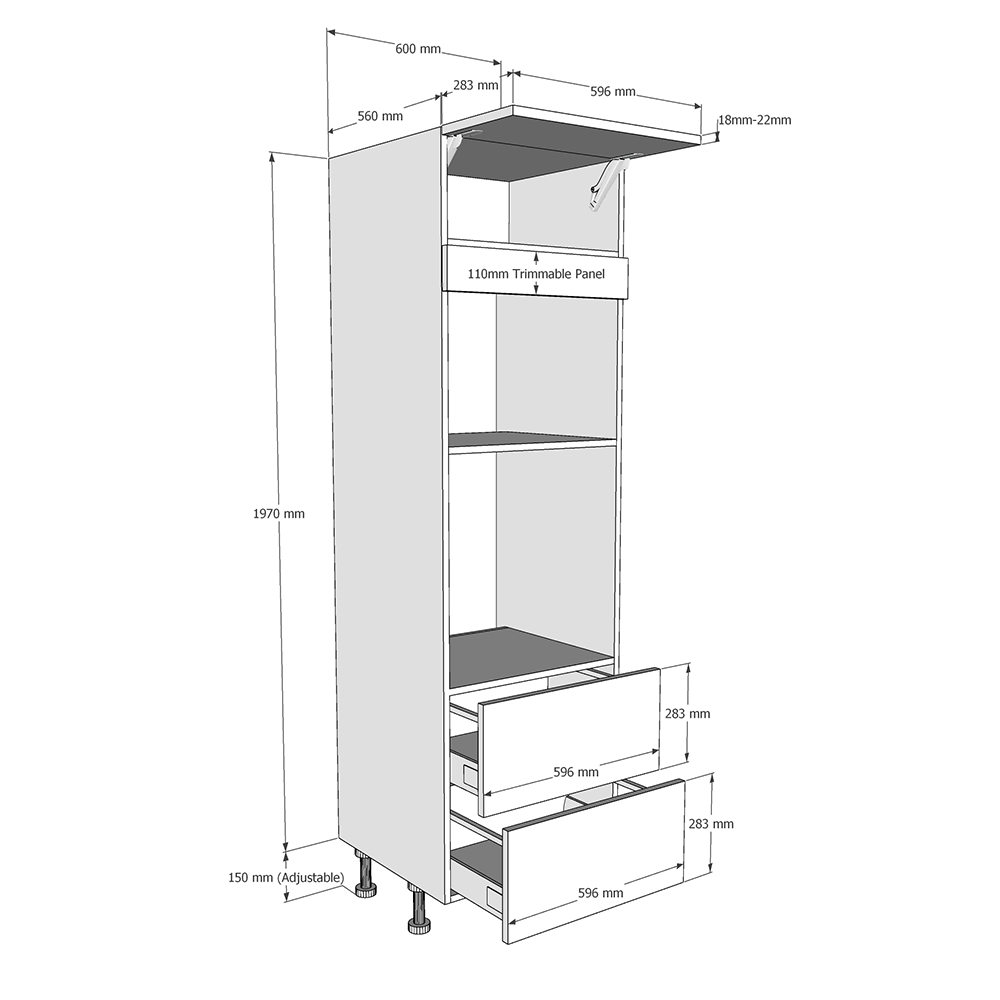

Height:
1970mm + 150mm Legs
Width: 600mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Width: 600mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.

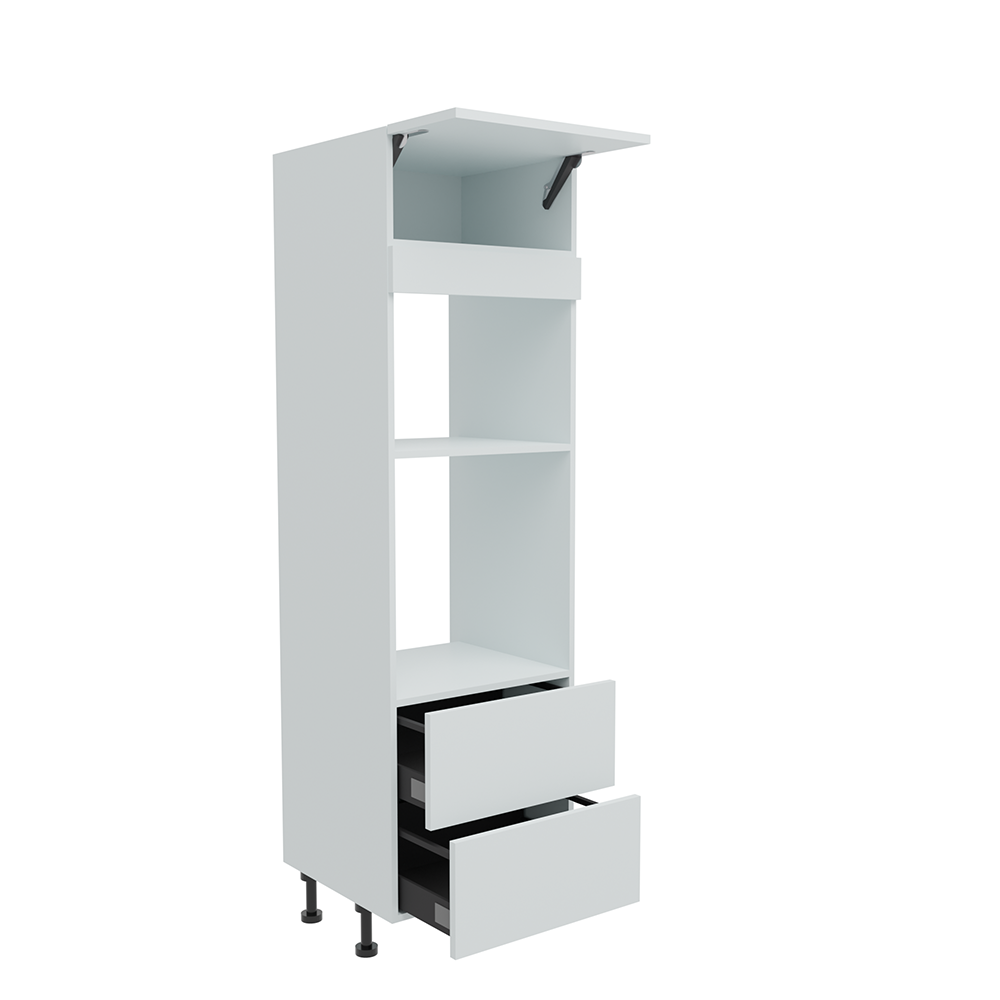

Medium height Single oven and Microwave housing unit supplied with two 283 x 596mm drawer fronts and a 283 x 596mm top door in your chosen style and colour. A 110/115 x 596 Trimmable Filler Panel Is also Supplied. Legs, Free Space Lift Mechanism and Soft Close Drawer Fittings are included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Drawer Fittings.
Free Space Lift Mechanism.
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Drawer Fittings.
Free Space Lift Mechanism.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
The 110mm Filler Panel is to be cut down on site after the appliance has been fitted to suit.
