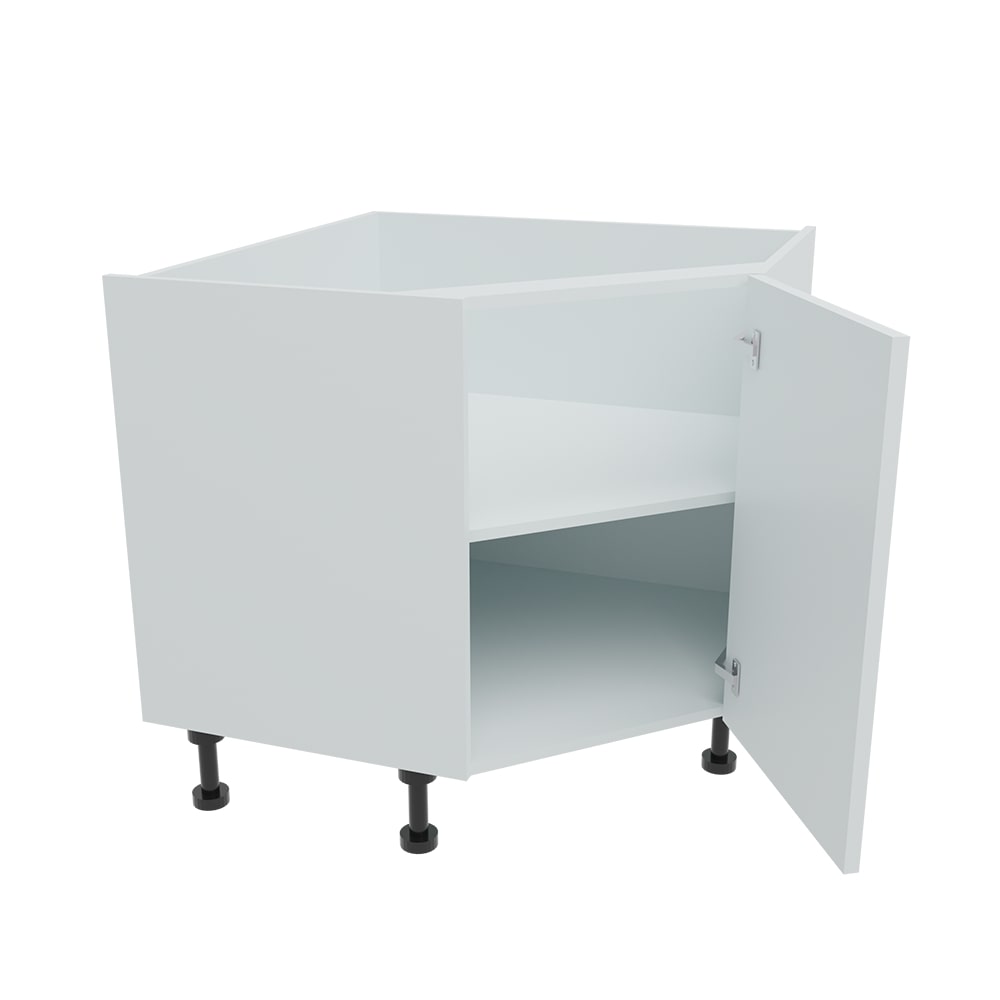

900 x 900mm Diagonal Corner Base Unit

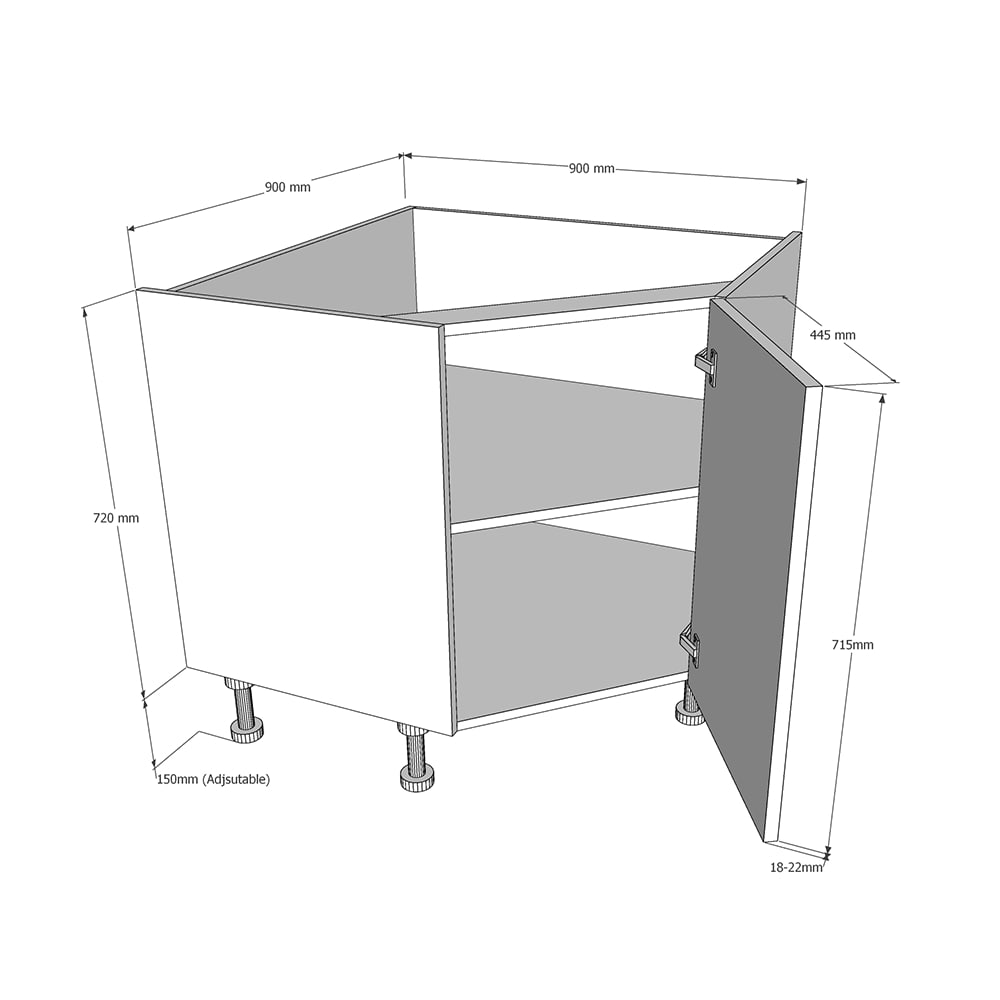

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 900mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:

Fittings:

Soft Close Hinges x 2

Component Price: £ 7.26 £ 4.36
Included
Show Components
Oops! The required Door/Drawer Size is not available in this range
Options

Hinge Position

Any side mounted hinges are installed on the LEFT HAND side of the unit when facing it.
Any side mounted hinges are installed on the RIGHT HAND side of the unit when facing it.
Learn more about Hinge Options
Show Hinge Option Details

Assembly Options

Flatpack units need a kitchen installer or experienced DIY'er to assemble as only generic instructions supplied.
Learn more about Assembly Options
Show Assembly Option Details
Total Price

£ 326.93 £ 196.16

( £ 163.46 Ex. Vat)

196.16 GBP Kitchen Unit BCD90X90

Availability: Made to Order
DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

The 900 x 900mm Diagonal Corner door base unit is supplied with a 715 x 446mm door in your chosen style and colour. Adjustable Legs and Soft Close Hinges included.

Due to the assembled size of this unit, we  will always supply it flat packed.

Lifetime guarantee on all Hinges and Drawer boxes.

We Recommend this unit is fitted with end panels on either side of it, even when flanked by other units. The Diagonal position if the door means that the carcase is visible when the door is closed. End Panels installed either side will reduce the amount of carcase visible.

Cabinet Specification

18mm thick colour matched cabinet (where possible).
40mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.

Fitting Instructions
We Recommend this unit is fitted with end panels on either side of it, even when flanked by other units. The Diagonal position if the door means that the carcase is visible when the door is closed. End Panels installed either side will reduce the amount of carcase visible

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes

Due to its size, this unit will always be supplied flat pack.
