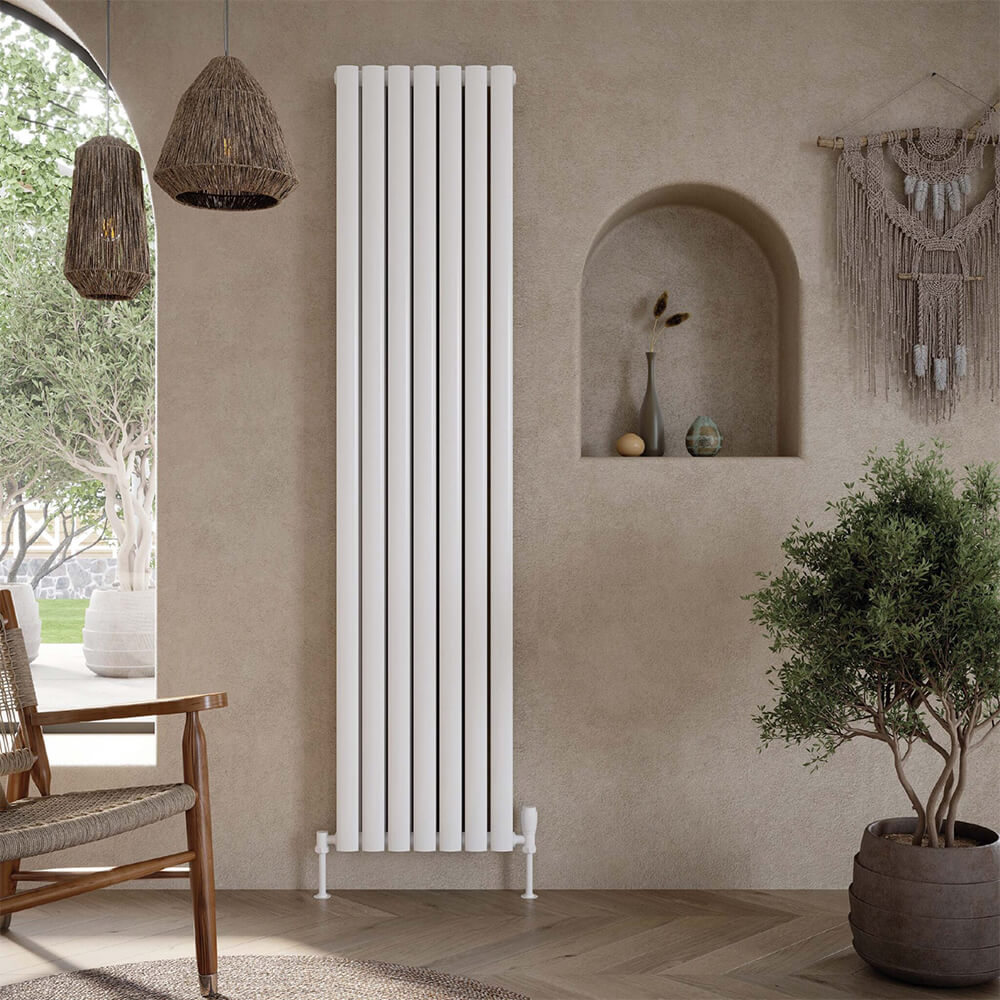

Apex Vertical Designer Radiator - Double - White - Various Sizes
Item Detail
Description
Description: Apex Designer Radiator Double 1800mm x 236mm White
Construction Material: Steel
Installation type: Wall Mounted
Description: Apex Designer Radiator Double 1800mm x 354mm White
Construction Material: Steel
Installation type: Wall Mounted
Description: Apex Designer Radiator Double 1800mm x 413mm White
Construction Material: Steel
Installation type: Wall Mounted
Description: Apex Designer Radiator Double 1800mm x 531mm White
Construction Material: Steel
Installation type: Wall Mounted
Specifications
Description: Apex Designer Radiator Double 1800mm x 236mm White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 4*2
# of Bars: 8
Radiator Diameter (mm): 82
RAL#: 9016
BAR Diameter (mm): 50*25
BTU at 50°C: 2799
Thermal Output @ 50°C (Watts): 820
Water Content: 11.3
Element Installation Compatible: No
Pipe Centres C1 (mm): 316
Pipe Centres C2 (mm): 63
Heating (Elements & Valves) - Specification
Max Projection (mm): 103
Key Dimensions
Product Weight (KG): 23
Product Width: 236
Product Height: 1800
Description: Apex Designer Radiator Double 1800mm x 354mm White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 6*2
# of Bars: 12
Radiator Diameter (mm): 82
RAL#: 9016
BAR Diameter (mm): 50*25
BTU at 50°C: 4198
Thermal Output @ 50°C (Watts): 1230
Water Content: 17
Element Installation Compatible: No
Pipe Centres C1 (mm): 434
Pipe Centres C2 (mm): 63
Heating (Elements & Valves) - Specification
Max Projection (mm): 103
Key Dimensions
Product Weight (KG): 35
Product Width: 354
Product Height: 1800

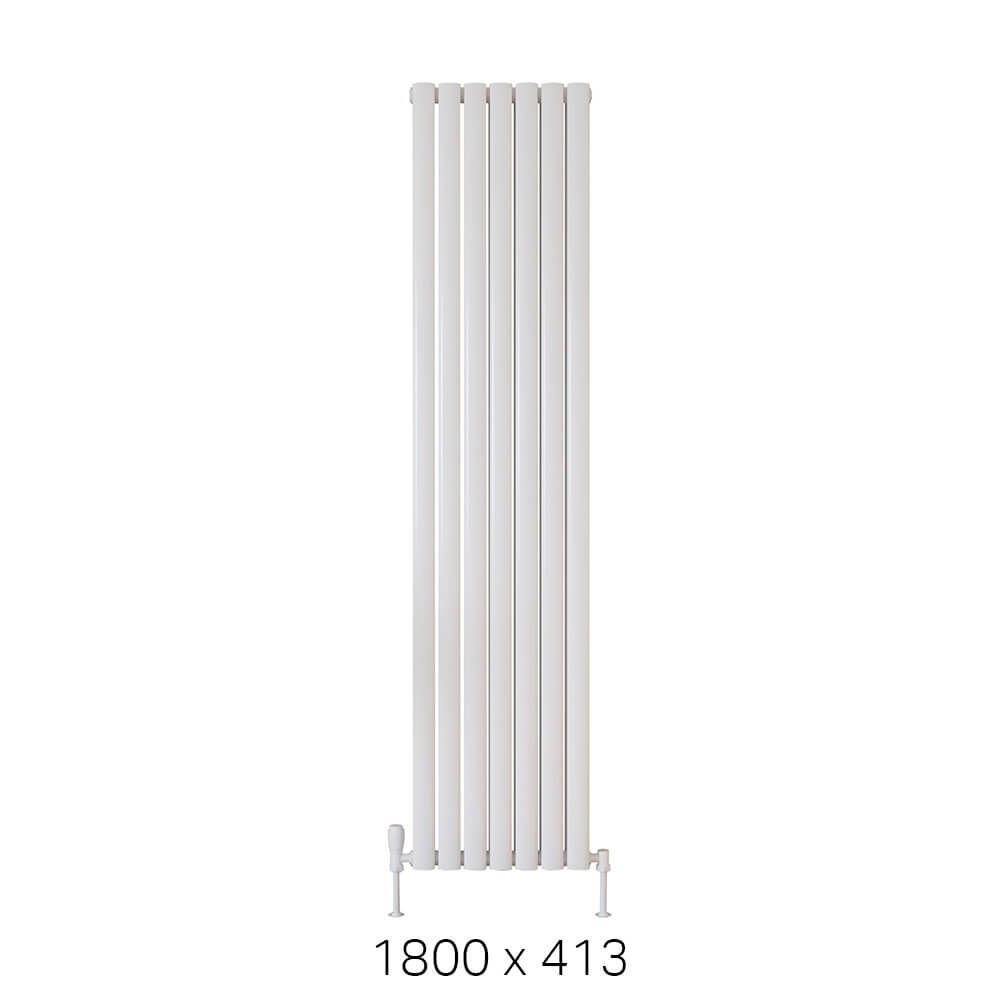

Description: Apex Designer Radiator Double 1800mm x 413mm White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 7(*2)
# of Bars: 14
Radiator Diameter (mm): 85
RAL#: 9016
BAR Diameter (mm): 50*25
BTU @ 60°C: 6361
BTU at 50°C: 1864
Thermal Output @ 50°C (Watts): 1864
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 493
Pipe Centres C2 (mm): 63
Heating (Elements & Valves) - Specification
Max Projection (mm): 103
Key Dimensions
Product Weight (KG): 37.95
Product Width: 413
Product Height: 1800

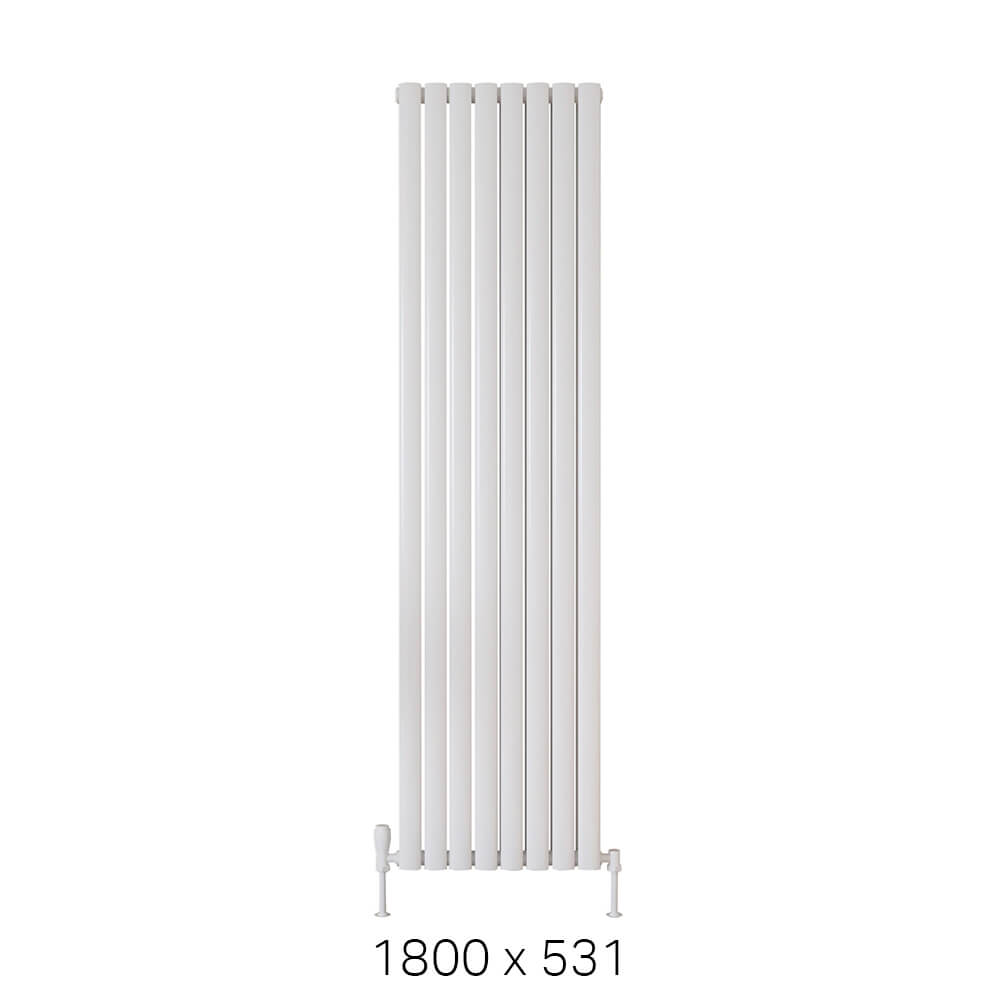

Description: Apex Designer Radiator Double 1800mm x 531mm White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 9(*2)
# of Bars: 18
Radiator Diameter (mm): 85
RAL#: 9016
BAR Diameter (mm): 50*25
BTU @ 60°C: 8177
BTU at 50°C: 2396
Thermal Output @ 50°C (Watts): 2396
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 611
Pipe Centres C2 (mm): 63
Heating (Elements & Valves) - Specification
Max Projection (mm): 103
Key Dimensions
Product Weight (KG): 39.2
Product Width: 531
Product Height: 1800
