1000mm Highline Corner Base Unit - Magic Corner - 500mm LH Hand Door

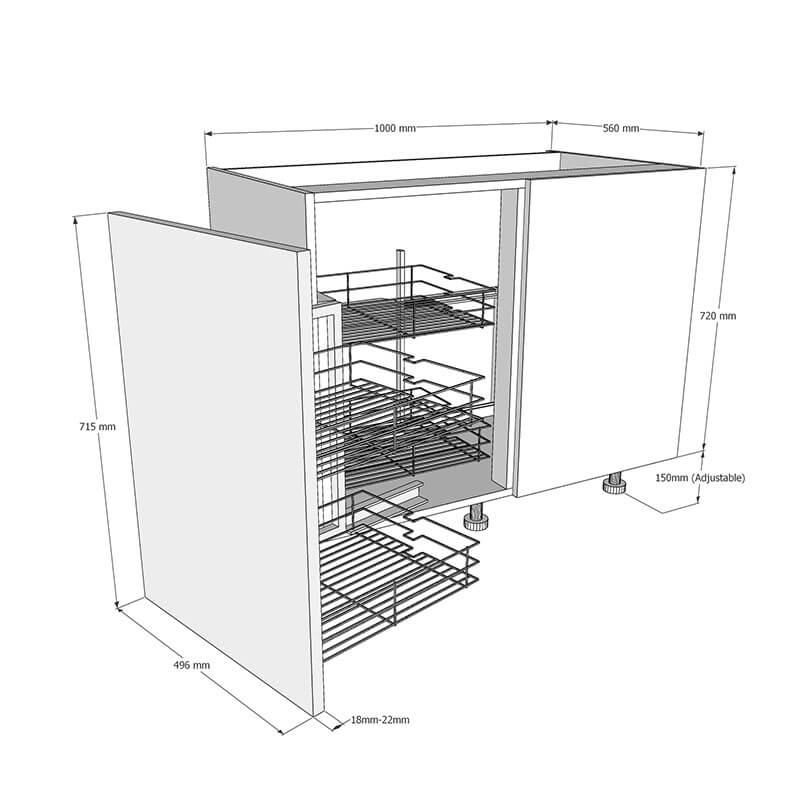

Dimensions, Notes & Advice
Height:
720mm + 150mm Legs
Width: 1000mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Width: 1000mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Standard highline corner base unit supplied with a 715 x 496mm Door in your chosen style and colour with the addition of a Magic Swing Out Corner mechanism.

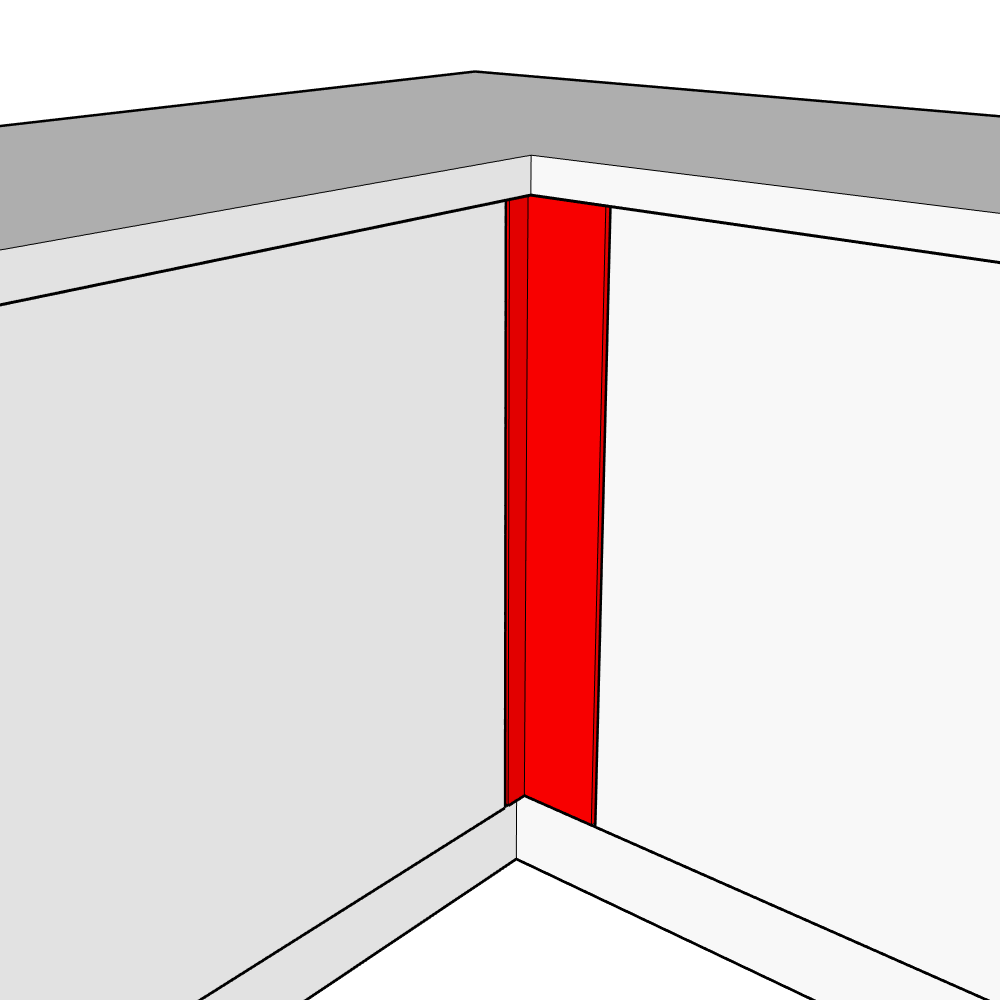

This unit is also supplied with your choice of an Adjustable or Fixed Corner Post.
Opt to have this corner mechanism professionally installed by a Better Kitchens expert (Fully Assembled option only).
The mechanism is supplied uninstalled as standard.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Cabinet Specification
18mm thick colour matched cabinet (where possible).
Blanking Panel, colour matched (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Magic Corner Mechanism - Opt to have this corner mechanism professionally installed by a Better Kitchens expert (Fully Assembled option only) by choosing this from the Extra Options.
Magic Corner Mechanism - Opt to have this corner mechanism professionally installed by a Better Kitchens expert (Fully Assembled option only) by choosing this from the Extra Options.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None
