900mm Highline Corner Base Unit With Adjustable Corner Post - 450mm RH Hand Door

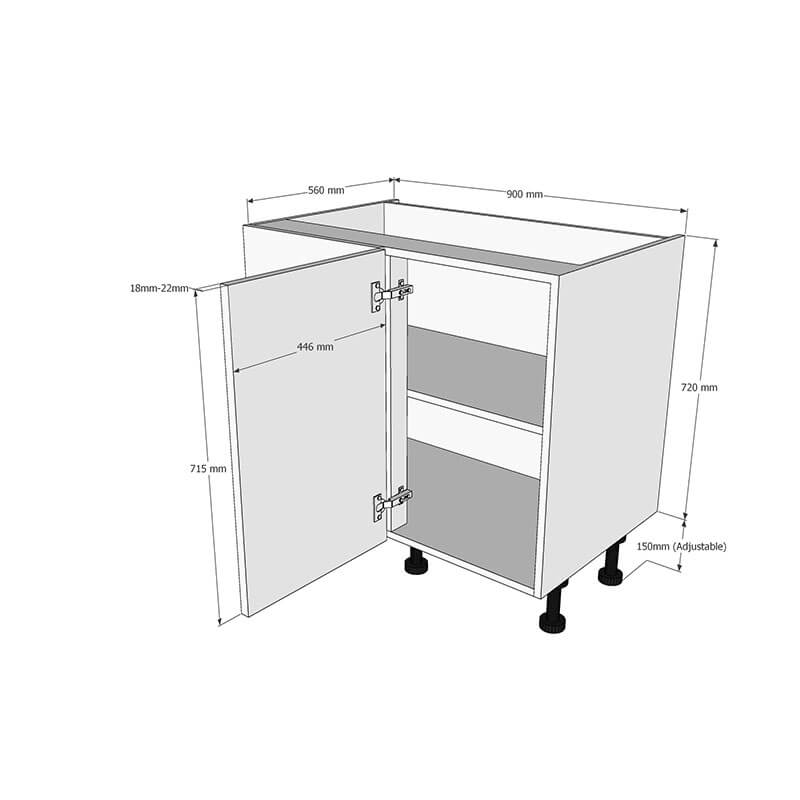

Dimensions, Notes & Advice
Height:
720mm + 150mm Legs
Width: 900mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Width: 900mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Standard highline corner base unit supplied with a 715 x 446mm Door in your chosen style and colour. This unit is also supplied with a suitable door in your chosen door style and colour to be cut on site to create a flexible corner post to suit your measurements. Legs and Soft Close Hinges included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Cabinet Specification
18mm thick colour matched cabinet (where possible).
Blanking Panel, colour matched (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None
