website(1,) 900mm Highline Corner Base Unit - Magic Corner - 450mm RH Hand Door

50% OFF SALE EXTENDED​ ​ ​

900mm Highline Corner Base Unit - Magic Corner - 450mm Door (Left Blank)

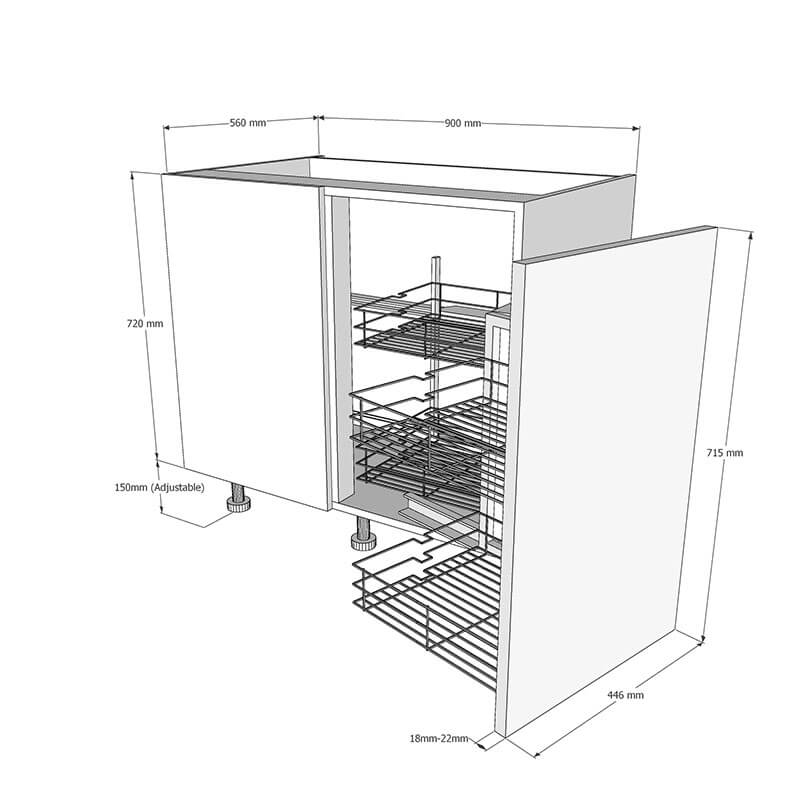

Dimensions, Notes & Advice
Height: 720mm + 150mm Legs
Width: 900mm + Corner Void
Depth: 560mm + Door Thickness + Corner Post
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Related Help Pages:

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:

Fittings:

Blanking Panel

Component Price: £ 25.56 £ 15.34
Included

Magic Swing Out Corner Mechanism

Component Price: £ 375.97 £ 225.59
Included
Show Components
Oops! The required Door/Drawer Size is not available in this range
Options

Corner Posts

Show Corner Posts Details

Assembly Options

Show Assembly Option Details

Extra Options

Total Price

£ 554.81 £ 332.90

( £ 277.41 Ex. Vat)

332.9 GBP Kitchen Unit BC90(450)MAGLHB

Availability: Made to Order
DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

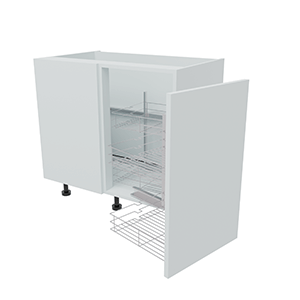

Standard highline corner base unit supplied with a 715 x 446mm Door in your chosen style and colour with the addition of a Magic Swing Out Corner mechanism, designed to be installed into this unit. This unit is also supplied with your choice of an Adjustable or Fixed Corner Post. Legs included.

All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.


Cabinet Specification

18mm thick colour matched cabinet (where possible).
Blanking Panel, colour matched (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Magic Swing Out Corner Mechanism
170mm Corner Void Planning Dimension (Adjustable on site with an Adjustable Corner Post)

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Please follow the installation guide of your Corner Pull out Mechanism

Special Notes
None
