1000mm Drawerline Corner Base Unit With Adjustable Corner Post - 600mm Door (Right Blank)
Unit Detail
Description

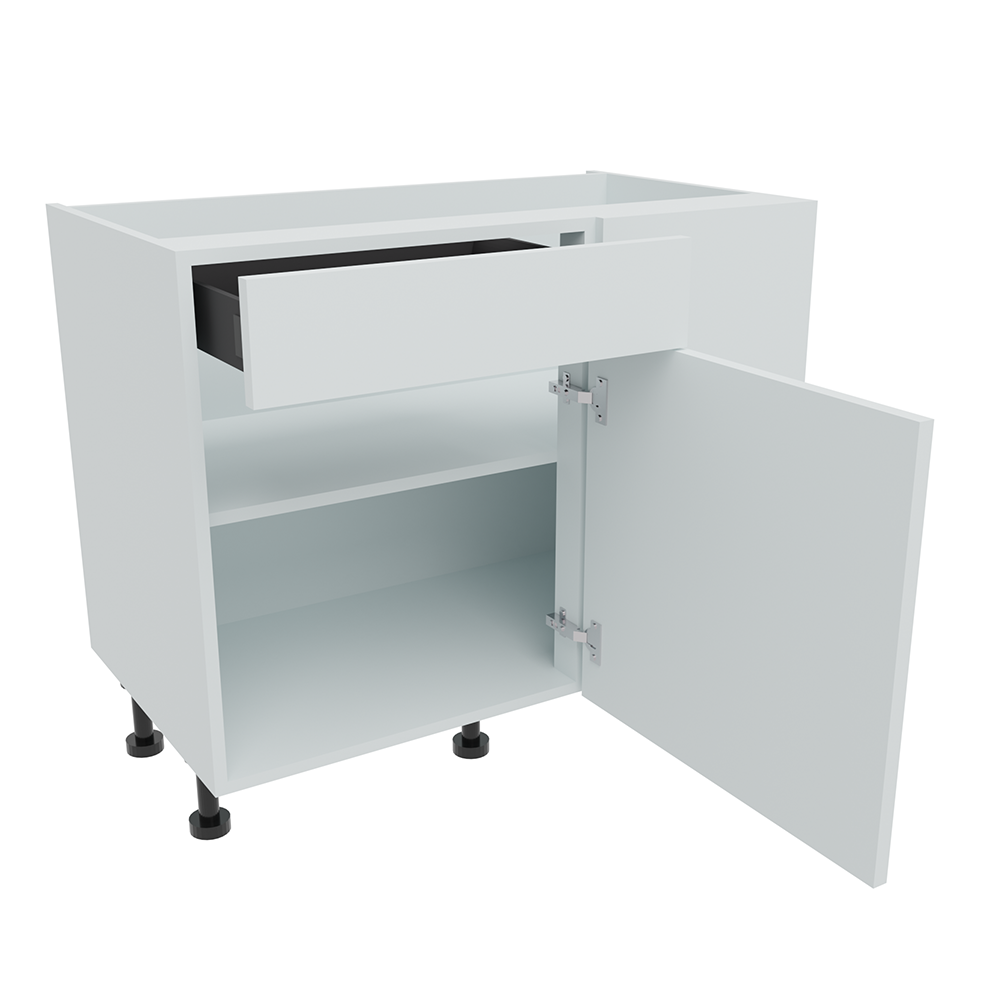

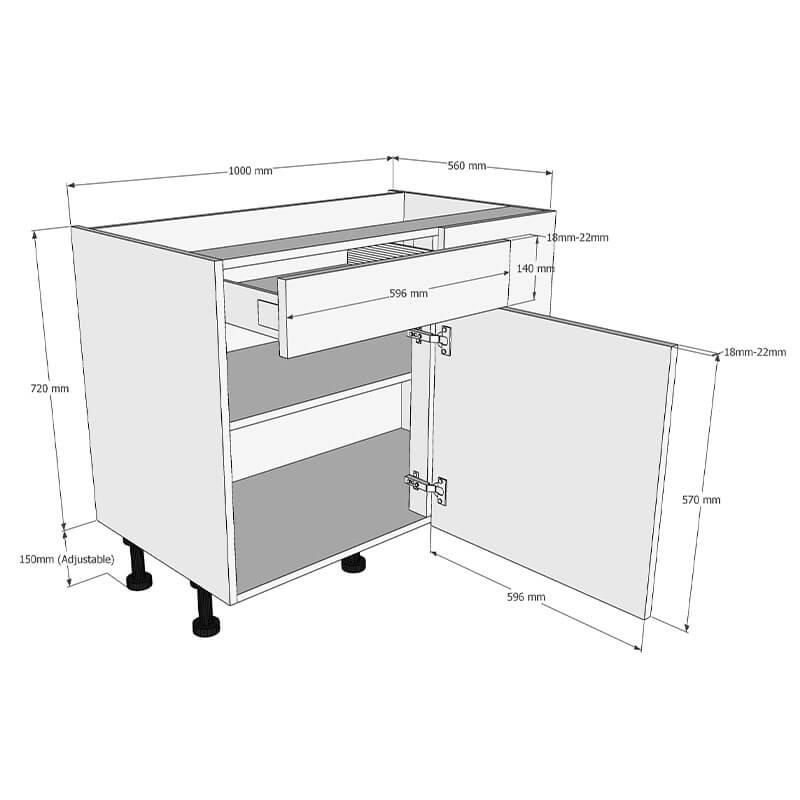

Standard left hand Drawerline corner base unit for use with a 570 x 596mm Door and a 140 x 596mm drawer front in your chosen style and colour. This unit is also supplied with an adjustable Corner Post in your chosen style and colour to be create a flexible corner post to suit your measurements. Soft close drawer fittings, Legs and Soft Close Hinges included.
All kitchen units have a choice of Fully Assembled or Flat Packed as indicated.
Lifetime guarantee on all Hinges and Drawer boxes.
Specifications
Cabinet Specification
18mm thick colour matched cabinet (where possible).
Blanking Panel, colour matched (where possible).
40mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Soft Close Drawer Fittings.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None
