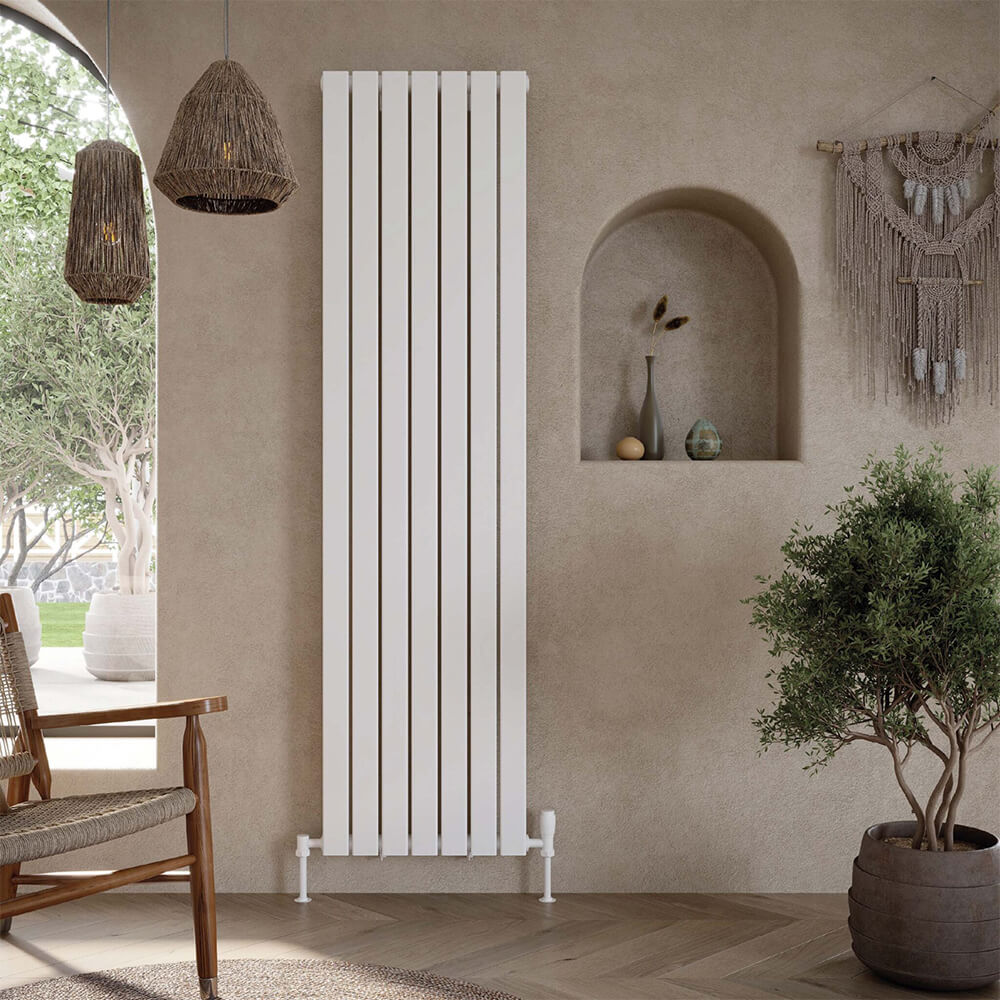

Bravo Vertical Designer Radiator - Single - White - Various Sizes
Item Detail
Description
Description: Bravo Designer Radiator Single 1600mm x 408mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1600mm x 476mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1600mm x 544mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1800mm x 204mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1800mm x 340mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1800mm x 408mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1800mm x 476mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Description: Bravo Designer Radiator Single 1800mm x 544mm - White
Construction Material: Mild Steel
Installation type: Wall Mounted
Specifications
Description: Bravo Designer Radiator Single 1600mm x 408mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 6
# of Bars: 6
Radiator Diameter (mm): 52
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU @ 60°C: 2249
BTU at 50°C: 658
Thermal Output @ 50°C (Watts): 658
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 488
Pipe Centres C2 (mm): 51 + /-3
Heating (Elements & Valves) - Specification
Max Projection (mm): 85+ /-3
Key Dimensions
Product Weight (KG): 15.8
Product Width: 408
Product Height: 1600
Description: Bravo Designer Radiator Single 1600mm x 476mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 7
# of Bars: 7
Radiator Diameter (mm): 52
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU @ 60°C: 2625
BTU at 50°C: 769
Thermal Output @ 50°C (Watts): 769
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 556
Pipe Centres C2 (mm): 51 + /-3
Heating (Elements & Valves) - Specification
Max Projection (mm): 85+ /-3
Key Dimensions
Product Weight (KG): 19.15
Product Width: 476
Product Height: 1600
Description: Bravo Designer Radiator Single 1600mm x 544mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 8
# of Bars: 8
Radiator Diameter (mm): 52
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU @ 60°C: 2999
BTU at 50°C: 879
Thermal Output @ 50°C (Watts): 879
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 624
Pipe Centres C2 (mm): 51 + /-3
Heating (Elements & Valves) - Specification
Max Projection (mm): 85+ /-3
Key Dimensions
Product Weight (KG): 20.85
Product Width: 544
Product Height: 1600
Description: Bravo Designer Radiator Single 1800mm x 204mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 3
# of Bars: 3
Radiator Diameter (mm): 50
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU at 50°C: 1105
Thermal Output @ 50°C (Watts): 324
Water Content: 2.97
Element Installation Compatible: No
Pipe Centres C1 (mm): 284
Pipe Centres C2 (mm): 63
Heating (Elements & Valves) - Specification
Max Projection (mm): 95
Key Dimensions
Product Weight (KG): 8.9
Product Width: 204
Product Height: 1800
Description: Bravo Designer Radiator Single 1800mm x 340mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 5
# of Bars: 5
Radiator Diameter (mm): 50
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU at 50°C: 1843
Thermal Output @ 50°C (Watts): 540
Water Content: 4.95
Element Installation Compatible: No
Pipe Centres C1 (mm): 420
Pipe Centres C2 (mm): 63
Heating (Elements & Valves) - Specification
Max Projection (mm): 95
Key Dimensions
Product Weight (KG): 14.2
Product Width: 340
Product Height: 1800
Description: Bravo Designer Radiator Single 1800mm x 408mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 6
# of Bars: 6
Radiator Diameter (mm): 52
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU @ 60°C: 2873
BTU at 50°C: 842
Thermal Output @ 50°C (Watts): 842
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 488
Pipe Centres C2 (mm): 51 + /-3
Heating (Elements & Valves) - Specification
Max Projection (mm): 85+ /-3
Key Dimensions
Product Weight (KG): 17.65
Product Width: 408
Product Height: 1800
Description: Bravo Designer Radiator Single 1800mm x 476mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 7
# of Bars: 7
Radiator Diameter (mm): 52
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU @ 60°C: 3352
BTU at 50°C: 982
Thermal Output @ 50°C (Watts): 982
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 556
Pipe Centres C2 (mm): 51 + /-3
Heating (Elements & Valves) - Specification
Max Projection (mm): 85+ /-3
Key Dimensions
Product Weight (KG): 20.5
Product Width: 476
Product Height: 1800
Description: Bravo Designer Radiator Single 1800mm x 544mm - White
Colour /Finish
Colour / Finish: Textured White
Heating Attributes
Bar Arrangement : 8
# of Bars: 8
Radiator Diameter (mm): 52
RAL#: 9016
BAR Diameter (mm): 60*12*R6
BTU @ 60°C: 3830
BTU at 50°C: 1122
Thermal Output @ 50°C (Watts): 1122
Water Content: 0
Element Installation Compatible: No
Pipe Centres C1 (mm): 624
Pipe Centres C2 (mm): 51 + /-3
Heating (Elements & Valves) - Specification
Max Projection (mm): 85+ /-3
Key Dimensions
Product Weight (KG): 23.2
Product Width: 544
Product Height: 1800
