CDA ECP72BL 70cm Curved Glass Extractor, Black, 3 Speed

£ 274.80 £ 219.84

( £ 183.20 Ex. Vat)

219.84 GBP Large Item ECP72BL

Availability: In Stock with Manufacturer
DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

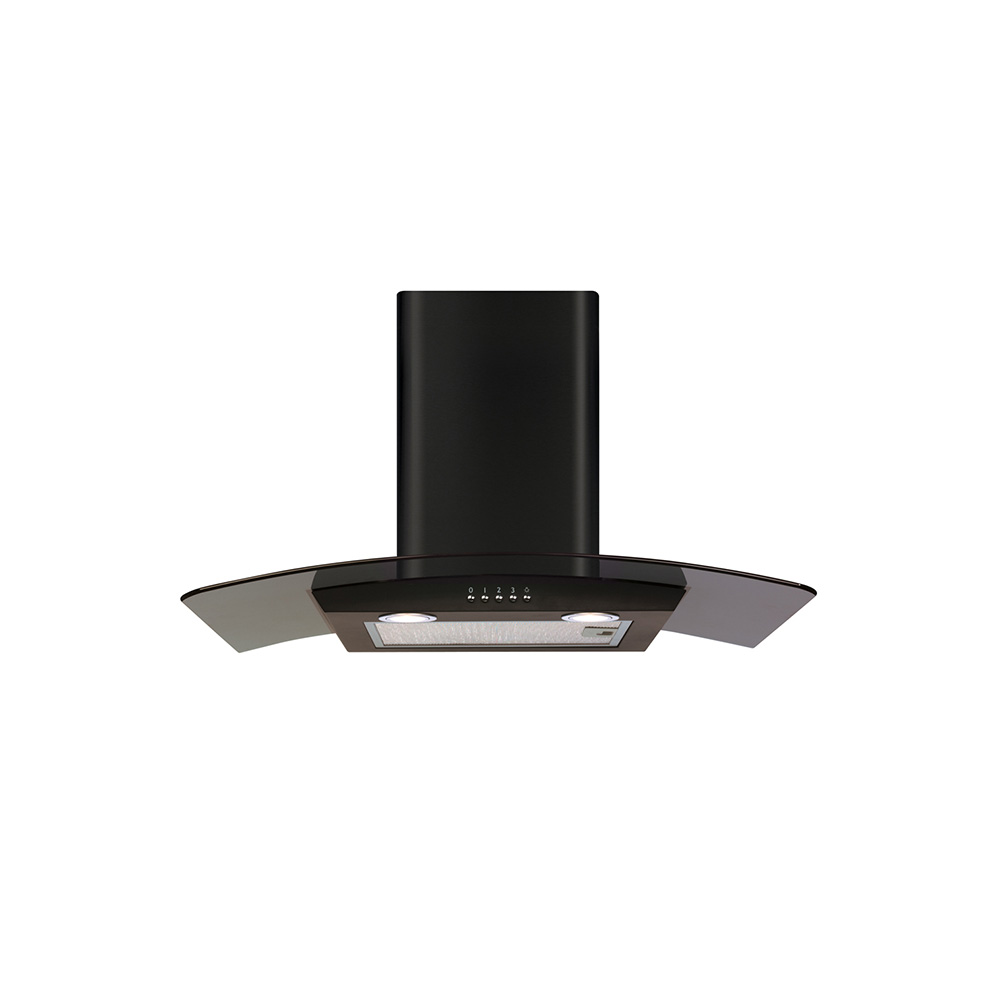

The CDA ECP72BL has a striking curved glass black design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Features
  • Ducted/re-circulating installation
  • 3 speeds
  • Type of grease filter: Aluminium grease filters
  • Push button control
Available in
  • Stainless steel
  • Black
Technical Specification
  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
  • Outlet diameter: 150mm with a 120mm reducer mm
  • Rated electrical power: 140 W
Optional Accessories
  • Ducting kit
Fitting Notes
  • Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearnace between the hob and extractor
Filters
  • Charcoal filters: CHA12 (pack of 1)
  • Number of layers: 4
  • Number of grease filters: 1
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED610 or AED660
Extraction Rates And Noise
  • Extraction rate at first speed: 218 m3/hr
  • Noise level at first speed: 50 dBA
  • Extraction rate at second speed: 302 m3/hr
  • Noise level at second speed: 58 dBA
  • Extraction rate: 391 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at third speed: 391 m3/hr
  • Noise level at third speed: 60 dBA
Lighting
  • Lighting: 2 x 2W LED
Energy
  • Energy rating: D
Misc Information
  • WEEE Category: 01
