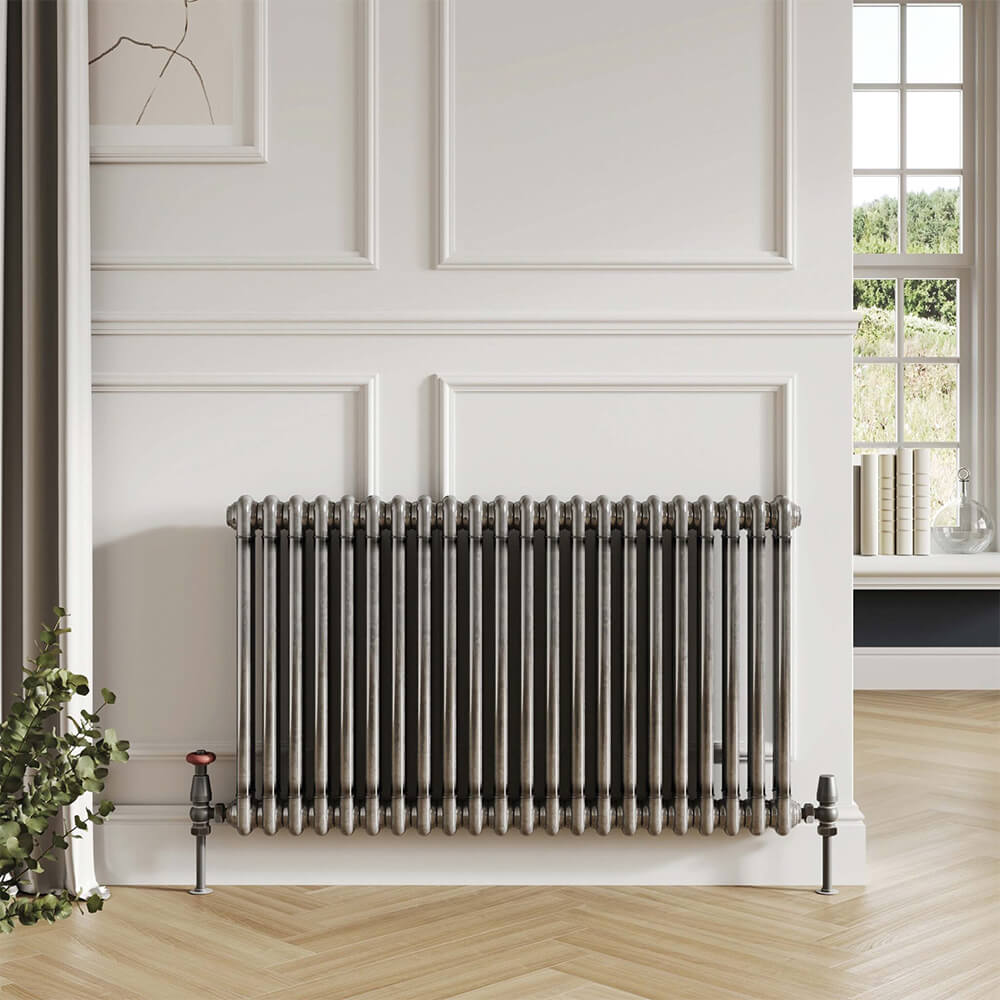

2 Column Horizontal Designer Radiator - Raw Metal - Various Sizes
Item Detail
Description
Description: Column Designer Radiator 2 col 600 x 1012mm 22 Sections Raw Metal
Construction Material: Steel
Description: Column Designer Radiator 2 col 600 x 644mm 14 Sections Raw Metal
Construction Material: Steel
Description: Column Designer Radiator 2 col 600 x 828mm 18 Sections Raw Metal
Construction Material: Steel
Specifications
Description: Column Designer Radiator 2 col 600 x 1012mm 22 Sections Raw Metal
Colour /Finish
Colour / Finish: Raw Metal
Enclosure Attributes
Profile Finish: Raw Metal
Heating Attributes
Bar Arrangement : 22*2
# of Bars: 22
Radiator Diameter (mm): 70
RAL#: Transparent Varnish
BAR Diameter (mm): 25
BTU @ 60°C: 4249
BTU at 50°C: 1245
Thermal Output @ 50°C (Watts): 1245
Water Content: 14.2
Element Installation Compatible: No
Pipe Centres C1 (mm): 998 + RV
Pipe Centres C2 (mm): 70
Heating (Elements & Valves) - Specification
Max Projection (mm): 104
Key Dimensions
Product Weight (KG): 26
Product Width: 1012
Product Height: 600
Description: Column Designer Radiator 2 col 600 x 644mm 14 Sections Raw Metal
Colour /Finish
Colour / Finish: Raw Metal
Enclosure Attributes
Profile Finish: Raw Metal
Heating Attributes
Bar Arrangement : 14*2
# of Bars: 14
Radiator Diameter (mm): 70
RAL#: Transparent Varnish
BAR Diameter (mm): 25
BTU @ 60°C: 2704
BTU at 50°C: 793
Thermal Output @ 50°C (Watts): 793
Water Content: 9.1
Element Installation Compatible: No
Pipe Centres C1 (mm): 636 + RV
Pipe Centres C2 (mm): 70
Heating (Elements & Valves) - Specification
Max Projection (mm): 104
Key Dimensions
Product Weight (KG): 16.6
Product Width: 644
Product Height: 600
Description: Column Designer Radiator 2 col 600 x 828mm 18 Sections Raw Metal
Colour /Finish
Colour / Finish: Raw Metal
Enclosure Attributes
Profile Finish: Raw Metal
Heating Attributes
Bar Arrangement : 18*2
# of Bars: 18
Radiator Diameter (mm): 70
RAL#: Transparent Varnish
BAR Diameter (mm): 25
BTU @ 60°C: 3477
BTU at 50°C: 1019
Thermal Output @ 50°C (Watts): 1019
Water Content: 11.6
Element Installation Compatible: No
Pipe Centres C1 (mm): 812 + RV
Pipe Centres C2 (mm): 70
Heating (Elements & Valves) - Specification
Max Projection (mm): 104
Key Dimensions
Product Weight (KG): 21.3
Product Width: 828
Product Height: 600
