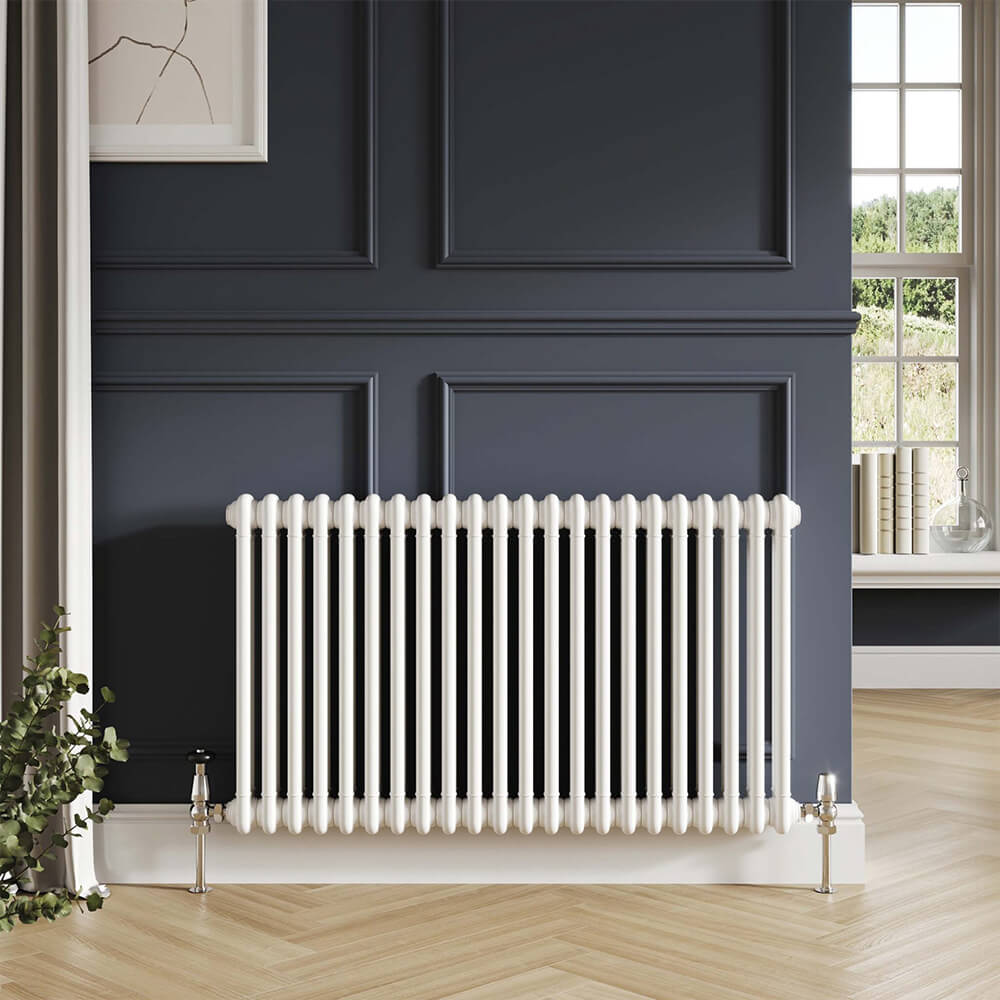

2 Column Horizontal Designer Radiator - White - Various Sizes
Item Detail
Description
Description: Column Designer Radiator 2 col 600 x 1010mm 22 Sections White
Construction Material: Mild Steel
Description: Column Designer Radiator 2 col 600 x 1190mm 26 Sections White
Construction Material: Mild Steel
Description: Column Designer Radiator 2 col 600 x 650mm 14 Sections White
Construction Material: Mild Steel
Description: Column Designer Radiator 2 col 600 x 830mm 18 Sections White
Construction Material: Mild Steel
Specifications
Description: Column Designer Radiator 2 col 600 x 1010mm 22 Sections White
Colour /Finish
Colour / Finish: Textured White
Enclosure Attributes
Profile Finish: Sections White
Heating Attributes
Bar Arrangement : 22
# of Bars: 22
Radiator Diameter (mm): 70
RAL#: 9016
BAR Diameter (mm): 25
BTU @ 60°C: 4695
BTU at 50°C: 1376
Thermal Output @ 50°C (Watts): 1376
Water Content: 13.1
Element Installation Compatible: No
Pipe Centres C1 (mm): 1010 + RV
Pipe Centres C2 (mm): 59
Heating (Elements & Valves) - Specification
Max Projection (mm): 94
Key Dimensions
Product Weight (KG): 22.2
Product Width: 1010
Product Height: 600
Description: Column Designer Radiator 2 col 600 x 1190mm 26 Sections White
Colour /Finish
Colour / Finish: Textured White
Enclosure Attributes
Profile Finish: Sections White
Heating Attributes
Bar Arrangement : 26
# of Bars: 26
Radiator Diameter (mm): 70
RAL#: 9016
BAR Diameter (mm): 25
BTU @ 60°C: 5551
BTU at 50°C: 1627
Thermal Output @ 50°C (Watts): 1627
Water Content: 15.5
Element Installation Compatible: No
Pipe Centres C1 (mm): 1270
Pipe Centres C2 (mm): 59
Heating (Elements & Valves) - Specification
Max Projection (mm): 94
Key Dimensions
Product Weight (KG): 25.5
Product Width: 1190
Product Height: 600
Description: Column Designer Radiator 2 col 600 x 650mm 14 Sections White
Colour /Finish
Colour / Finish: Textured White
Enclosure Attributes
Profile Finish: Sections White
Heating Attributes
Bar Arrangement : 14
# of Bars: 14
Radiator Diameter (mm): 70
RAL#: 9016
BAR Diameter (mm): 25
BTU @ 60°C: 2992
BTU at 50°C: 877
Thermal Output @ 50°C (Watts): 877
Water Content: 8.4
Element Installation Compatible: No
Pipe Centres C1 (mm): 650 + RV
Pipe Centres C2 (mm): 59
Heating (Elements & Valves) - Specification
Max Projection (mm): 94
Key Dimensions
Product Weight (KG): 14.12
Product Width: 650
Product Height: 600
Description: Column Designer Radiator 2 col 600 x 830mm 18 Sections White
Colour /Finish
Colour / Finish: Textured White
Enclosure Attributes
Profile Finish: Sections White
Heating Attributes
Bar Arrangement : 18
# of Bars: 18
Radiator Diameter (mm): 70
RAL#: 9016
BAR Diameter (mm): 25
BTU @ 60°C: 5231
BTU at 50°C: 1533
Thermal Output @ 50°C (Watts): 1533
Water Content: 10.8
Element Installation Compatible: No
Pipe Centres C1 (mm): 830 + RV
Pipe Centres C2 (mm): 59
Heating (Elements & Valves) - Specification
Max Projection (mm): 94
Key Dimensions
Product Weight (KG): 18.16
Product Width: 830
Product Height: 600
