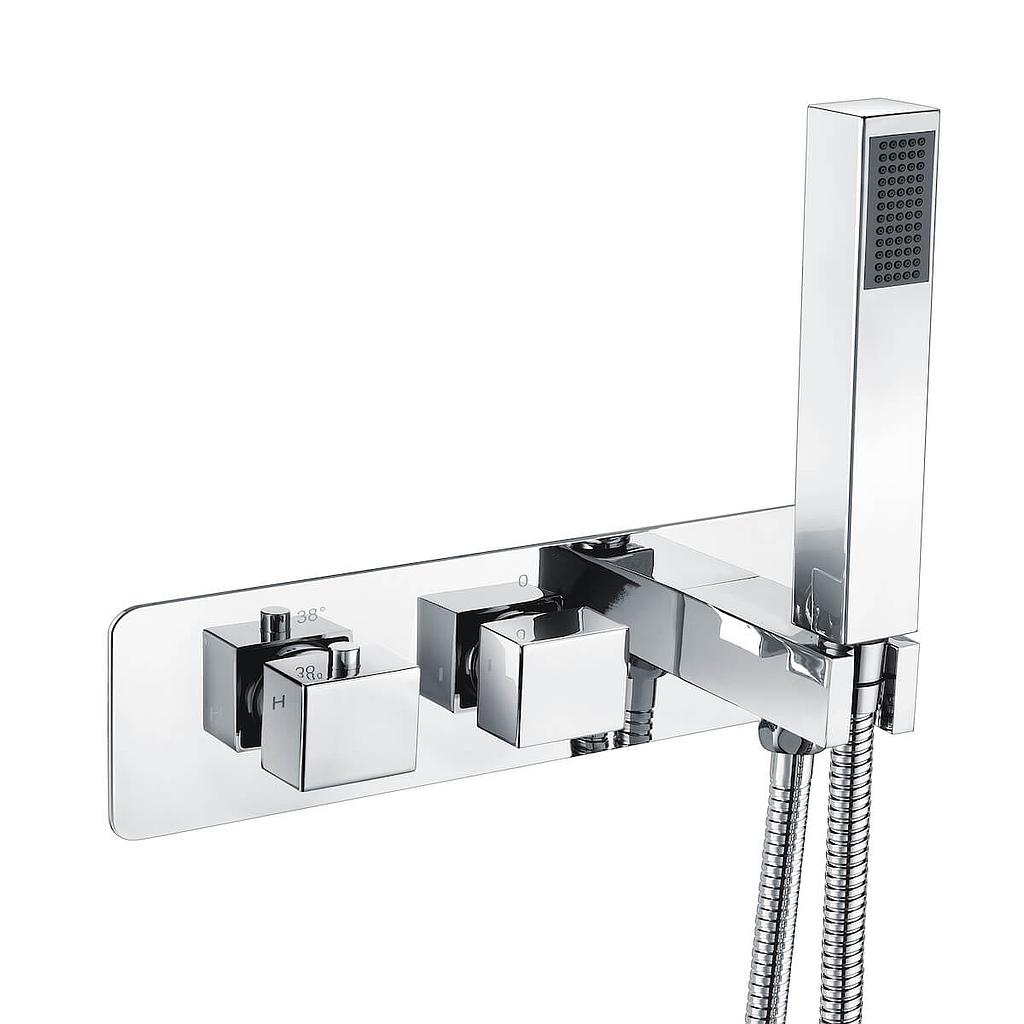

Square concealed shower valve bath filler - Chrome
Unit Detail
Description
Description: Square concealed shower valve bath filler
Construction Material: Brass / Stainless Steel
Installation type: In Wall
Construction Material: Brass / Stainless Steel
Installation type: In Wall
Specifications
Colour /Finish
Colour / Finish: Brass / Chrome
Tap /Shower Attributes
WRAS Approved: no
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.2
Maximum Operating pressure: 5
Flexible Tails Included: No
Handle type: Square
Inlet Connection size: 3 /4 BSP
Outlet Connection size: 1 /2 BSP
Tap Type description: In wall Thermostatic mixer
Valve /Cartridge Type: Thermostatic & Quarter Turn Cartridge
Thermostatic cartridge type: H102V
Flow Rate 0.2 (l /min): 6.5
Flow Rate 0.5 (l /min): 9.7
Flow Rate 1 (l /min): 14
Flow Rate 2 (l /min): 20.5
Flow Rate 3 (l /min): 27
Showering - Specification
Anti scald: Yes
Shower diverter function: Yes
Number of outlets : 2
Thermostatic temperature control: Yes
Cool Touch: No
Style: Contempoary
Minimum Working Pressure: 0.2
Inlet Connection: 3 /4 BSP
Outlet Connection: 1 /2 BSP
Handle Type: Square
Diverter spares Code: No Spare
Thermostat Cartridge Spares code: H102V
Enclosure Attributes
Profile Finish: Chrome
Key Dimensions
Product Weight (KG): 2.827

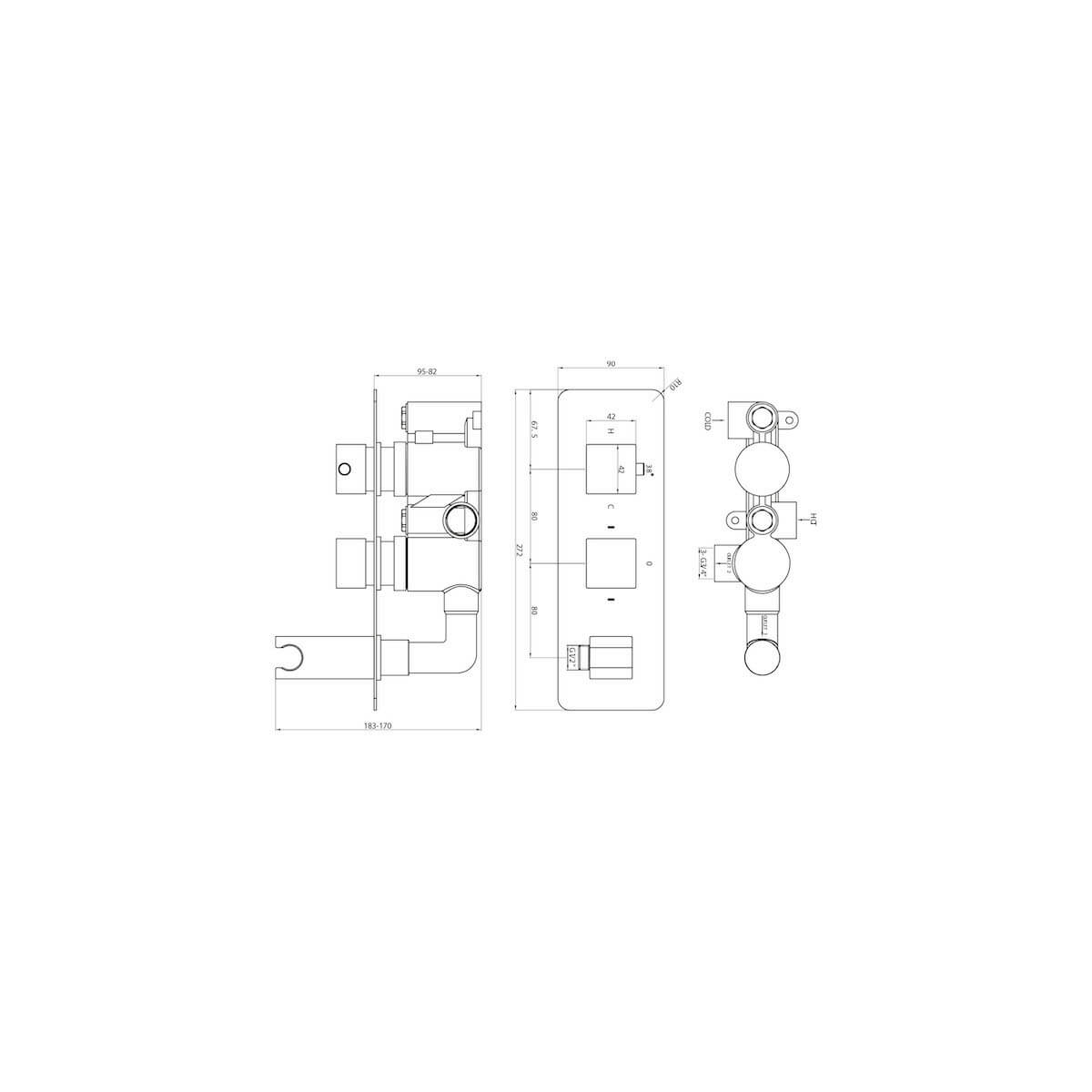

Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
Colour / Finish: Brass / Chrome
Tap /Shower Attributes
WRAS Approved: no
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.2
Maximum Operating pressure: 5
Flexible Tails Included: No
Handle type: Square
Inlet Connection size: 3 /4 BSP
Outlet Connection size: 1 /2 BSP
Tap Type description: In wall Thermostatic mixer
Valve /Cartridge Type: Thermostatic & Quarter Turn Cartridge
Thermostatic cartridge type: H102V
Flow Rate 0.2 (l /min): 6.5
Flow Rate 0.5 (l /min): 9.7
Flow Rate 1 (l /min): 14
Flow Rate 2 (l /min): 20.5
Flow Rate 3 (l /min): 27
Showering - Specification
Anti scald: Yes
Shower diverter function: Yes
Number of outlets : 2
Thermostatic temperature control: Yes
Cool Touch: No
Style: Contempoary
Minimum Working Pressure: 0.2
Inlet Connection: 3 /4 BSP
Outlet Connection: 1 /2 BSP
Handle Type: Square
Diverter spares Code: No Spare
Thermostat Cartridge Spares code: H102V
Enclosure Attributes
Profile Finish: Chrome
Key Dimensions
Product Weight (KG): 2.827
Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
