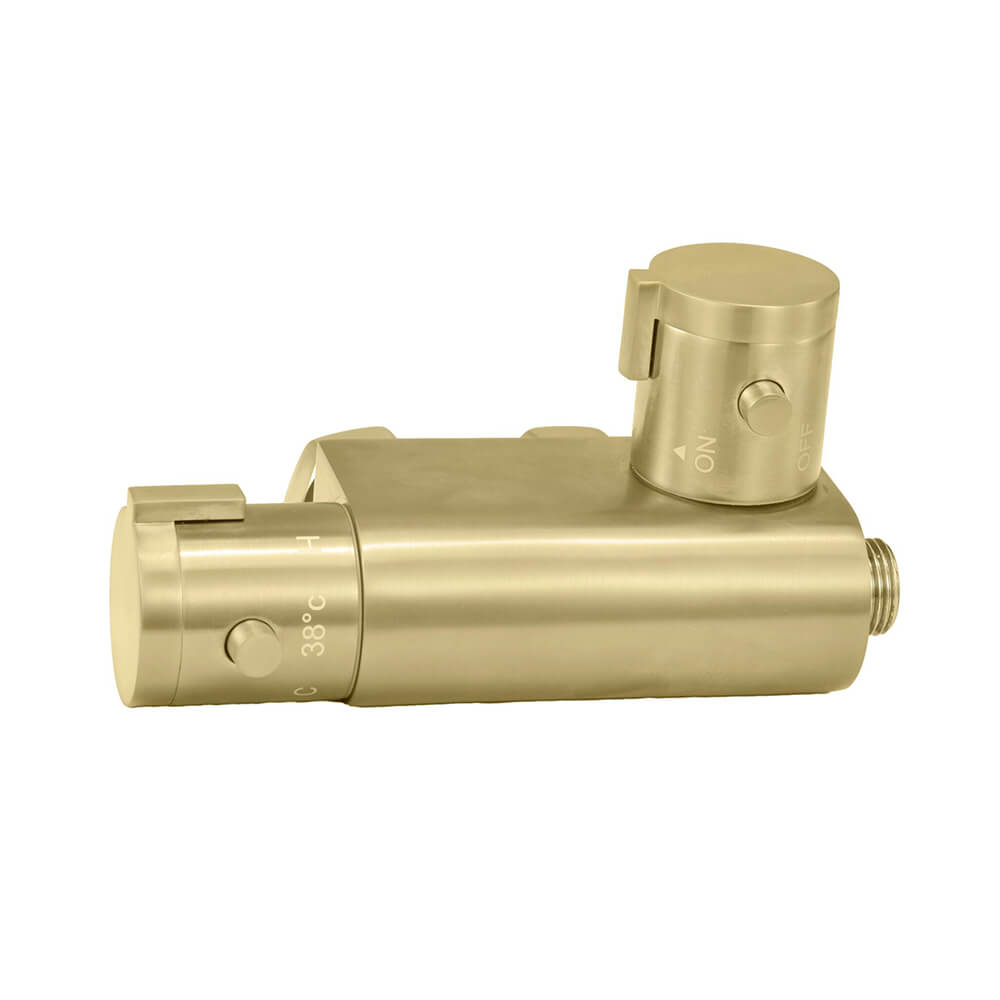

Thermostatic Vertical Valve for Douche - Brushed Brass
Item Detail
Description
Description: Thermostatic Vertical Valve for Douche Brushed Brass
Construction Material: Brass / Stainless steel
Installation type: Wall Mounted
Construction Material: Brass / Stainless steel
Installation type: Wall Mounted
Specifications
Colour /Finish
Colour / Finish: Brushed Brass
Tap /Shower Attributes
WRAS Approved: No
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.5
Maximum Operating pressure: 5
Flexible Tails Included: No
Number of handles: 2
Handle type: Knob
Inlet Connection size: 3 /4 BSP
Outlet Connection size: 1 /2 BSP
Tap Type description: Thermostatic Mixer
Includes Waste: No
Valve /Cartridge Type: Thermostatic
Flow Rate 0.2 (l /min): 5.5
Flow Rate 0.5 (l /min): 9
Flow Rate 1 (l /min): 12.7
Flow Rate 2 (l /min): 18
Flow Rate 3 (l /min): 22.8
Key Dimensions
Product Weight (KG): 1.31

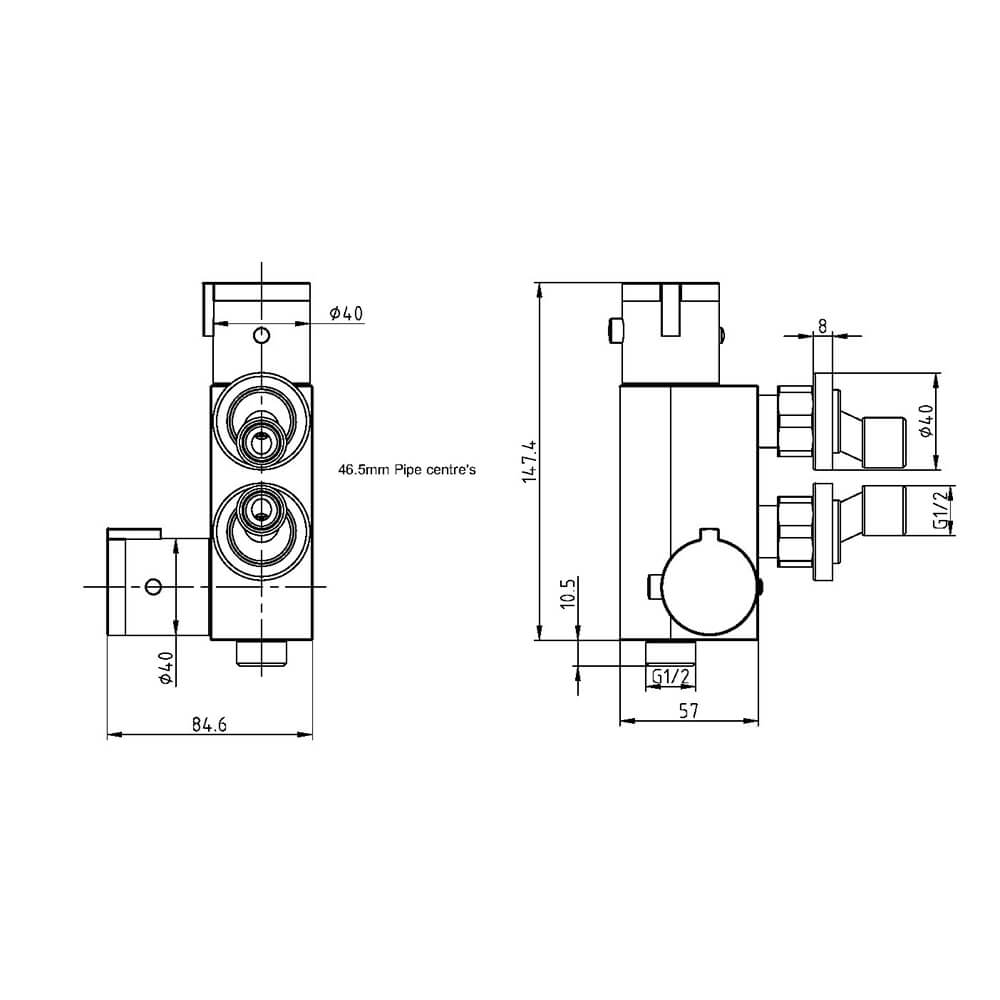

Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
Colour / Finish: Brushed Brass
Tap /Shower Attributes
WRAS Approved: No
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.5
Maximum Operating pressure: 5
Flexible Tails Included: No
Number of handles: 2
Handle type: Knob
Inlet Connection size: 3 /4 BSP
Outlet Connection size: 1 /2 BSP
Tap Type description: Thermostatic Mixer
Includes Waste: No
Valve /Cartridge Type: Thermostatic
Flow Rate 0.2 (l /min): 5.5
Flow Rate 0.5 (l /min): 9
Flow Rate 1 (l /min): 12.7
Flow Rate 2 (l /min): 18
Flow Rate 3 (l /min): 22.8
Key Dimensions
Product Weight (KG): 1.31
Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
