Soft Close Hinge & Plate - 110 Degree
Unit Detail
Description

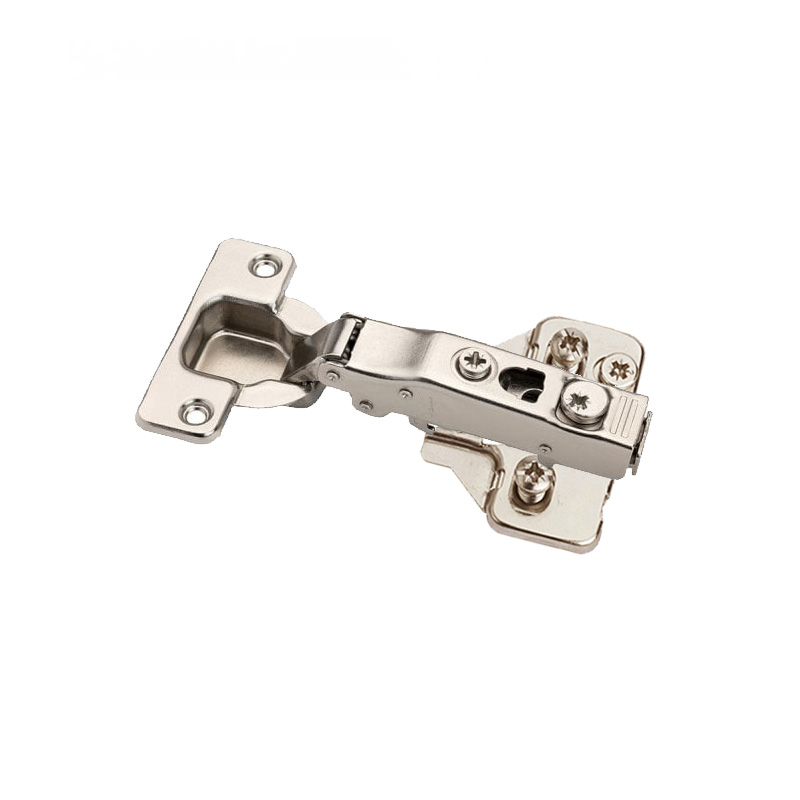

Clip On Soft-Close Integrated Cam-Adjustable Hinge.
Complete with 3D adjustable hinge plate.
Easy to install.
Specifications
Opening Angle: 100º
Depth of hinge cup: 10mm
Diameter of hinge cup: 35mm
Range of door thickness: 14-21mm

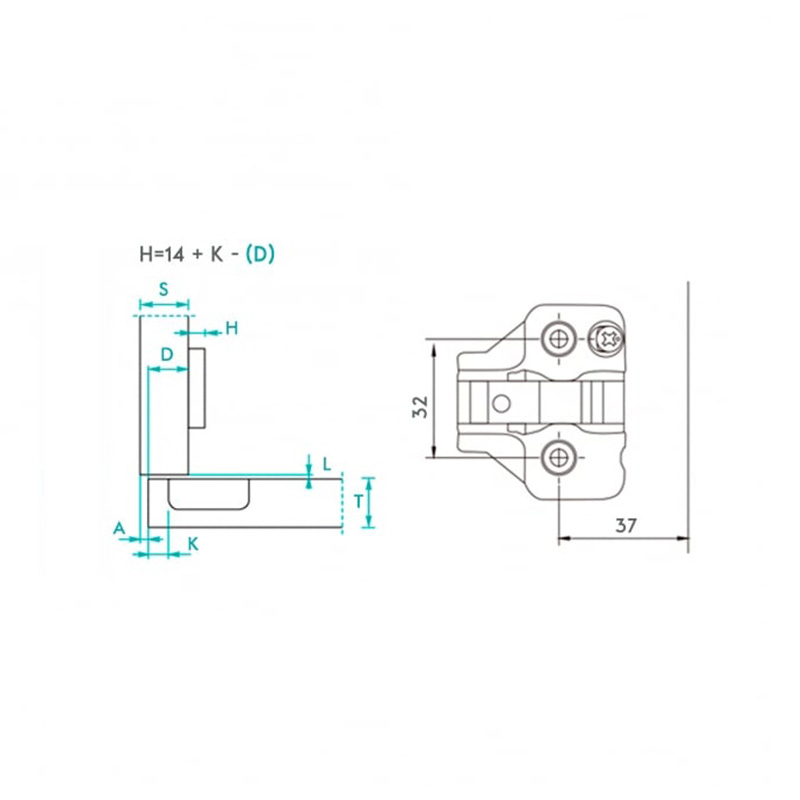

Possible drilling distances on the door (K): 3-7mm
FIRA Level H Tested to over 100,000 cycles
