Round Brass Body Valve, Riser Kit and Fast Fix Brackets
Unit Detail
Description
Description: Round Brass Body Valve / Riser Kit and Fast Fix Brackets
Construction Material: Brass / Stainless Steel / Plastic
Installation type: Wall Mounted
Construction Material: Brass / Stainless Steel / Plastic
Installation type: Wall Mounted
Specifications
Colour /Finish
Colour / Finish: Chrome
Tap /Shower Attributes
WRAS Approved: No
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.5
Maximum Operating pressure: 5
Flexible Tails Included: No
Handle type: Round
Swivel Spout: Yes
Inlet Connection size: 3 /4 BSP
Outlet Connection size: 1 /2 BSP
Tap Type description: Exposed Bar Valve
Includes Waste: No
Valve /Cartridge Type: Thermostatic & Quarter Turn Cartridge
Flow Rate 0.2 (l /min): 6
Flow Rate 0.5 (l /min): 7
Flow Rate 1 (l /min): 12
Flow Rate 2 (l /min): 18.5
Flow Rate 3 (l /min): 22
Showering - Specification
Anti scald: Yes
Shower diverter function: Yes
Number of outlets : 1
Thermostatic temperature control: Yes
Cool Touch: No
Shower handset functions: 3
Style: Contempoary
Shape: Round
Pipe Centres (mm): 150
Inlet Connection: 3 /4 BSP
Outlet Connection: 1 /2 BSP
Adjustable: Yes
Handle Type: Round
Adjustment (mm): 580
Enclosure Attributes
Profile Finish: Chrome
Key Dimensions
Product Weight (KG): 1.8

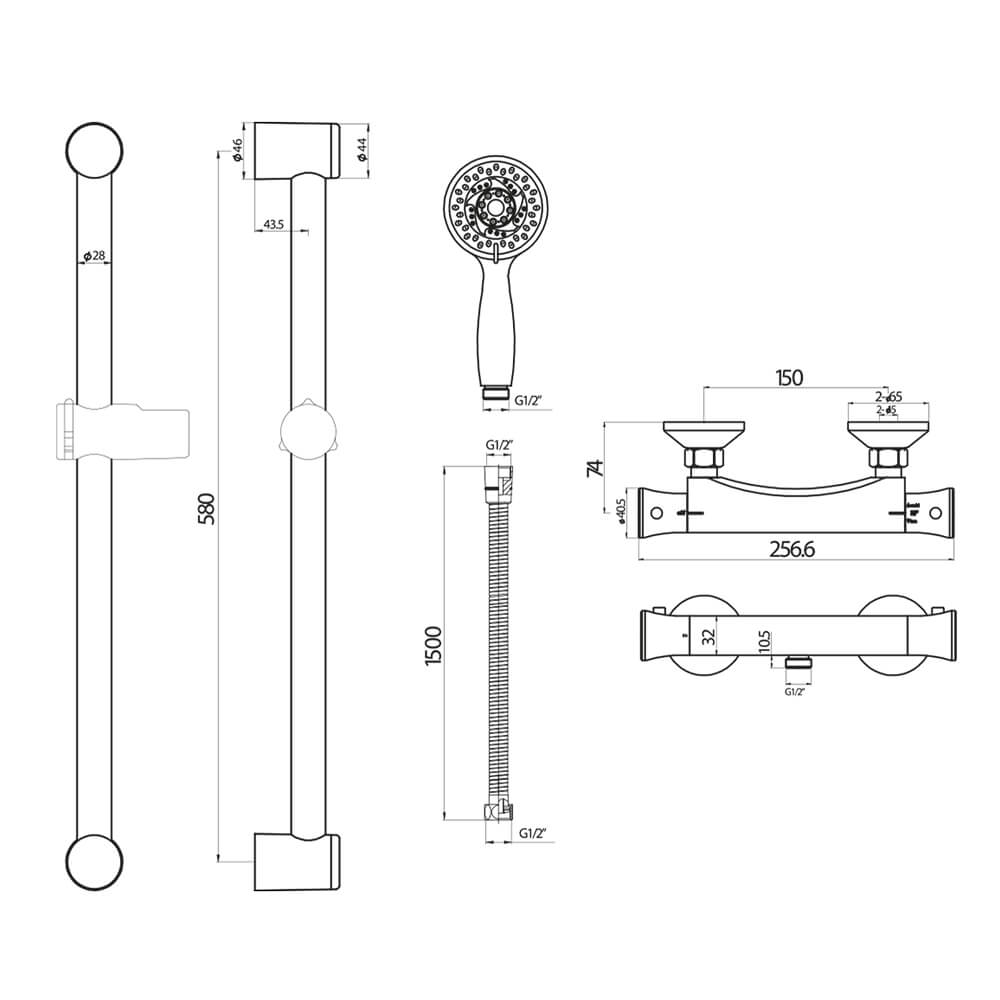

Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
Colour / Finish: Chrome
Tap /Shower Attributes
WRAS Approved: No
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.5
Maximum Operating pressure: 5
Flexible Tails Included: No
Handle type: Round
Swivel Spout: Yes
Inlet Connection size: 3 /4 BSP
Outlet Connection size: 1 /2 BSP
Tap Type description: Exposed Bar Valve
Includes Waste: No
Valve /Cartridge Type: Thermostatic & Quarter Turn Cartridge
Flow Rate 0.2 (l /min): 6
Flow Rate 0.5 (l /min): 7
Flow Rate 1 (l /min): 12
Flow Rate 2 (l /min): 18.5
Flow Rate 3 (l /min): 22
Showering - Specification
Anti scald: Yes
Shower diverter function: Yes
Number of outlets : 1
Thermostatic temperature control: Yes
Cool Touch: No
Shower handset functions: 3
Style: Contempoary
Shape: Round
Pipe Centres (mm): 150
Inlet Connection: 3 /4 BSP
Outlet Connection: 1 /2 BSP
Adjustable: Yes
Handle Type: Round
Adjustment (mm): 580
Enclosure Attributes
Profile Finish: Chrome
Key Dimensions
Product Weight (KG): 1.8
Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
