600mm Half Height Pan Drawer Base Unit
Dimensions, Notes & Advice
Height:
360mm + 150mm Legs
Width: 600mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.
Width: 600mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.

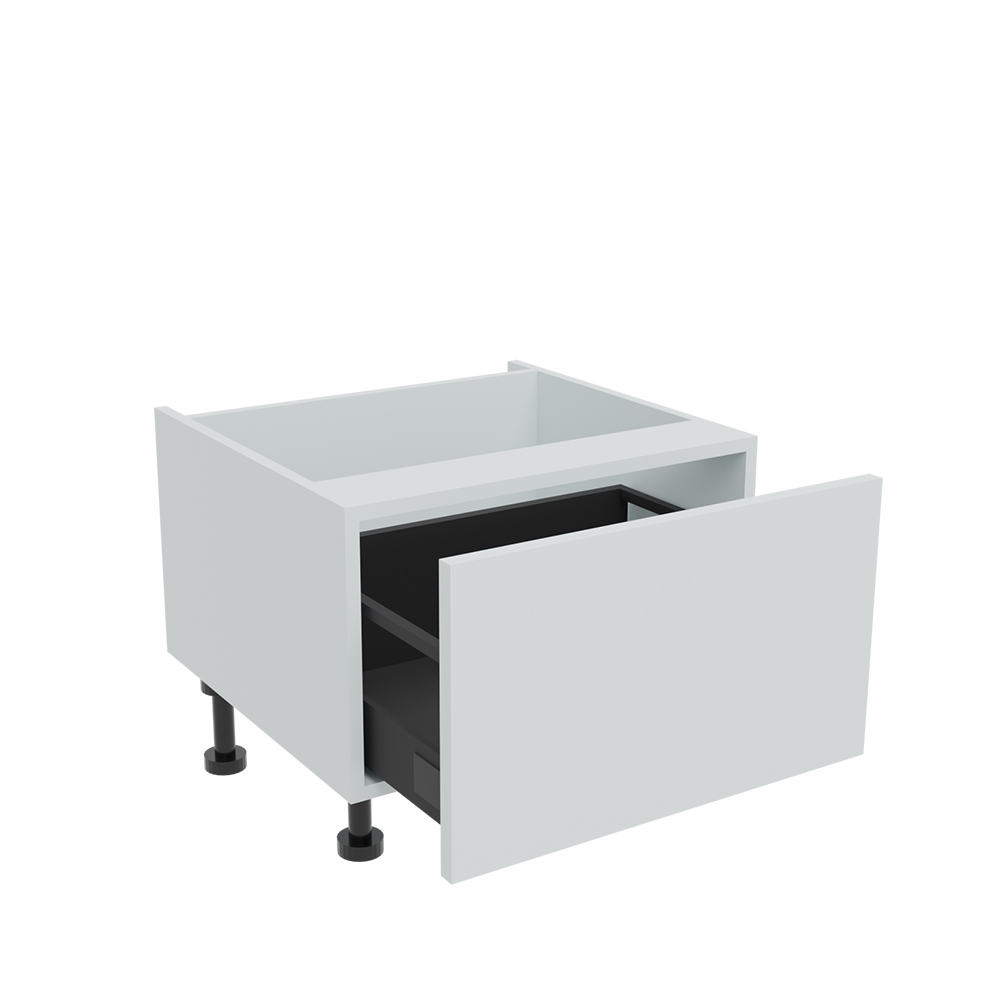

600mm Half Height Pan Drawer Base Unit
Half height Pan drawer unit supplied with a 595mm x 355mm drawer front in your chosen style or colour. Legs and soft close drawer system included.
Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void (please check oven spec’s for suitability).
150mm Plastic Legs (adjustable from 140-160mm).
1 x Soft Close Pan Drawer System.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None.
