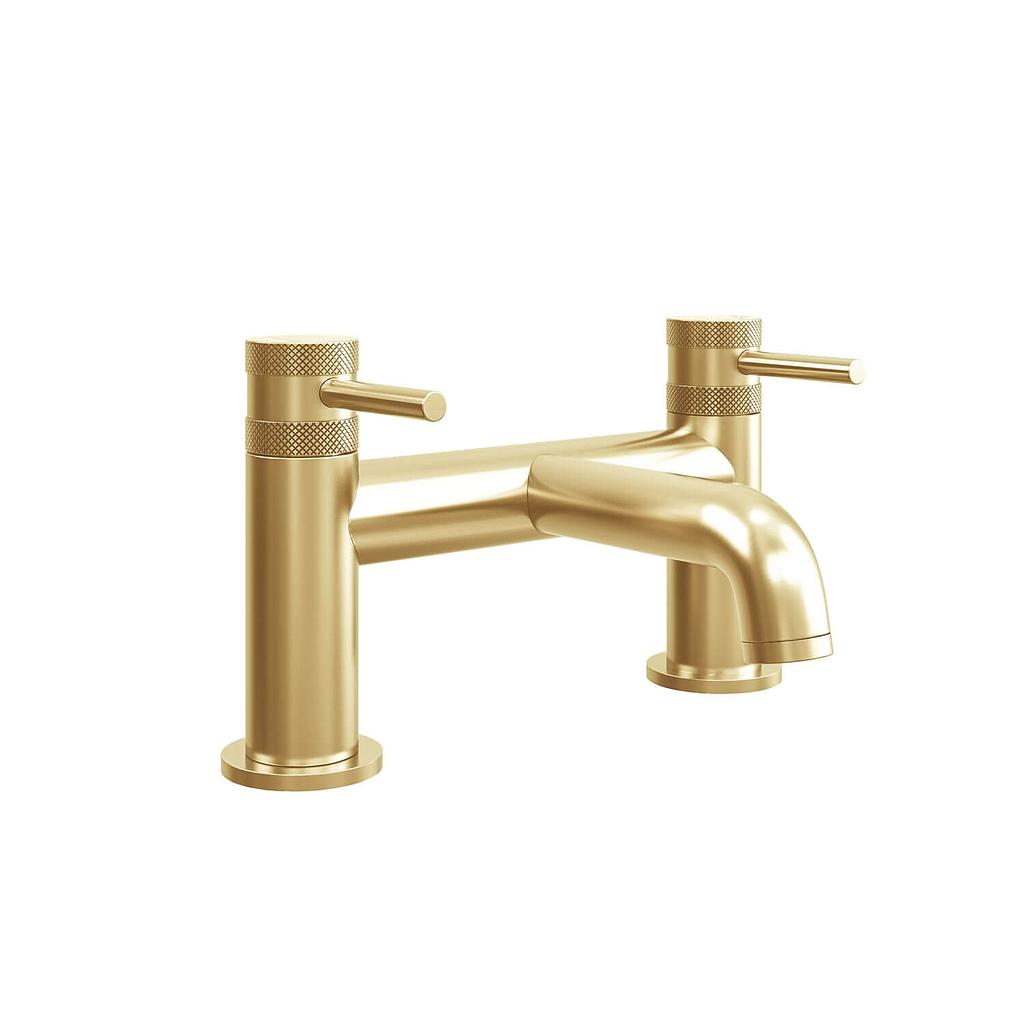

Core Bath Filler - Brushed Brass
Item Detail
Description
Description: Core Bath Filler Brushed Brass
Construction Material: Brass /Stainless steel 304 alloy
Installation type: Deck Mounted
Construction Material: Brass /Stainless steel 304 alloy
Installation type: Deck Mounted
Specifications
Colour /Finish
Colour / Finish: Matt Black
Tap /Shower Attributes
WRAS Approved: YES
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.5
Maximum Operating pressure: 5
Flexible Tails Included: No
Number of handles: 2
Handle type: Lever
Swivel Spout: No
Inlet Connection size: 3 /4 BSP
Tap Hole Diameter (mm): 32
Tap Type description: Manual Mixer
Includes Waste: No
Valve /Cartridge Type: Quarter turn cartridge
Flow Rate 0.2 (l /min): 4
Flow Rate 0.5 (l /min): 7
Flow Rate 1 (l /min): 9.8
Flow Rate 2 (l /min): 13.6
Flow Rate 3 (l /min): 16.7
Tap Holes Required: 2
Enclosure Attributes
Profile Finish: Brass
Key Dimensions
Product Weight (KG): 1.887

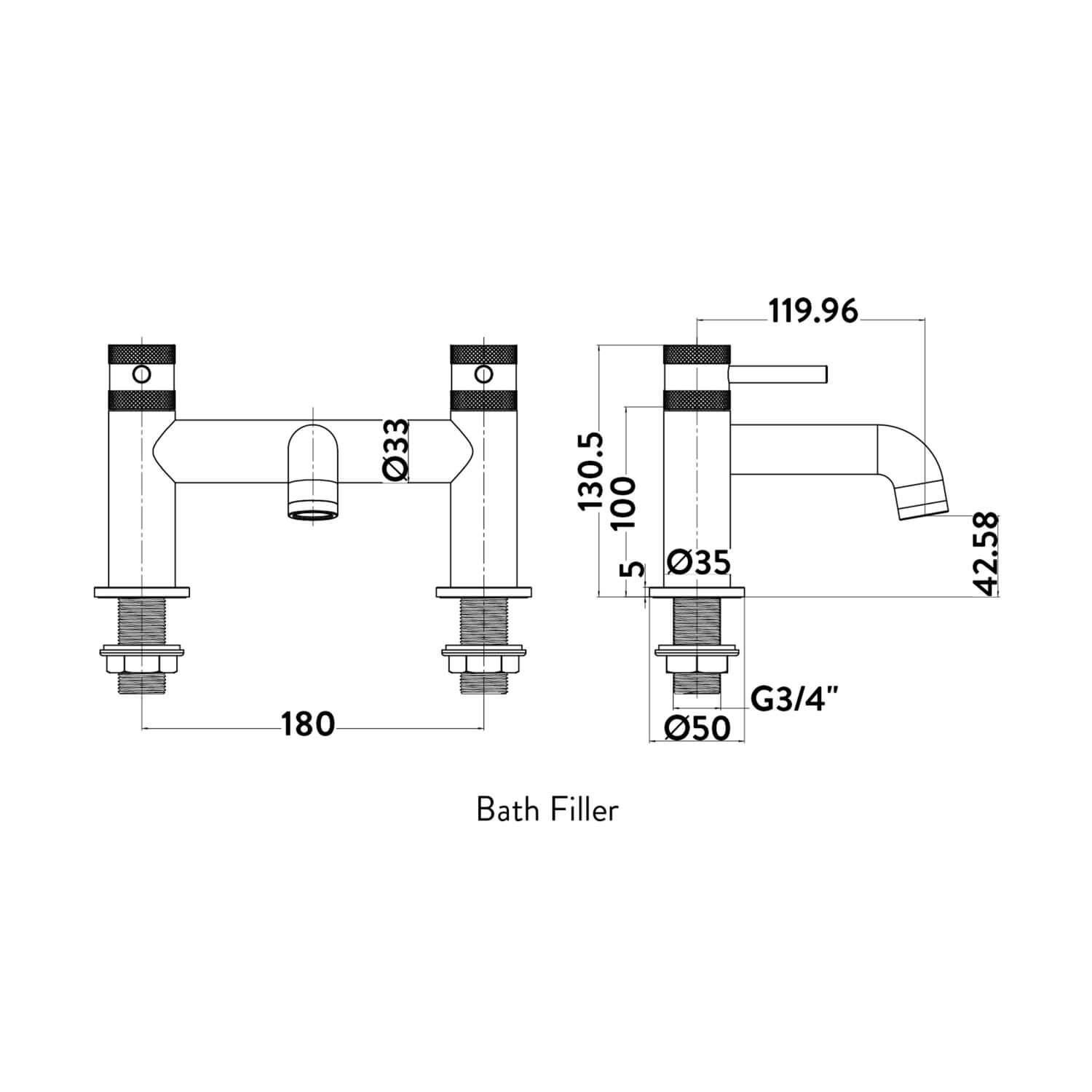

Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
Colour / Finish: Matt Black
Tap /Shower Attributes
WRAS Approved: YES
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.5
Maximum Operating pressure: 5
Flexible Tails Included: No
Number of handles: 2
Handle type: Lever
Swivel Spout: No
Inlet Connection size: 3 /4 BSP
Tap Hole Diameter (mm): 32
Tap Type description: Manual Mixer
Includes Waste: No
Valve /Cartridge Type: Quarter turn cartridge
Flow Rate 0.2 (l /min): 4
Flow Rate 0.5 (l /min): 7
Flow Rate 1 (l /min): 9.8
Flow Rate 2 (l /min): 13.6
Flow Rate 3 (l /min): 16.7
Tap Holes Required: 2
Enclosure Attributes
Profile Finish: Brass
Key Dimensions
Product Weight (KG): 1.887
Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
