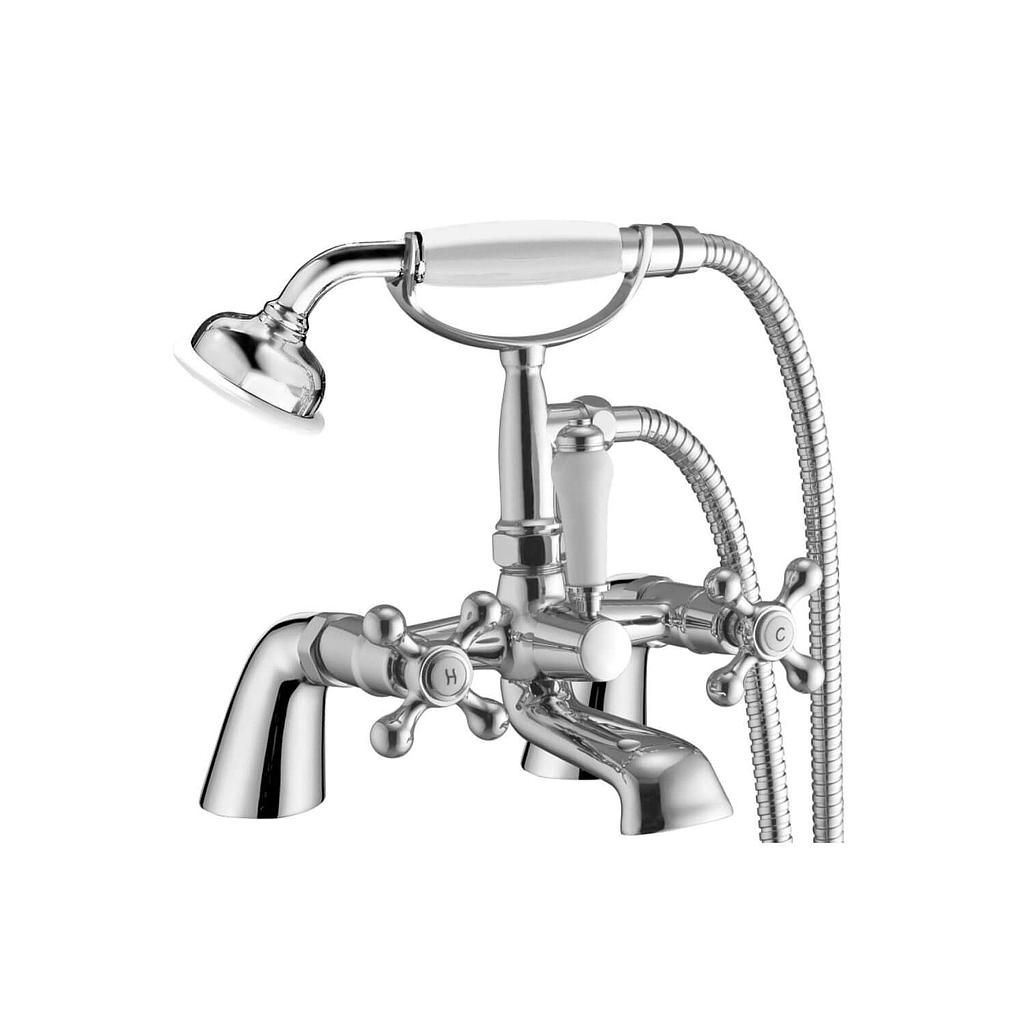

Classica Chrome Bath Shower Mixer with Cradle

Tap / Shower specification

WRAS Approved: No
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Flexible Tails Included: No
Number of tap holes required: 2
Handle Type: Cross
Swivel Spout: No
Inlet Connection: 3/4 BSP
Outlet Connection: 1/2 BSP
Tap Hole Diameter (mm): 30
Tap Type description: Manual Mixer
Includes Waste: No
Valve / Cartridge Type: Screw Down Cartridge
Cartridge Spare code: T6308-08

Flow Rates

0.2bar (l/min): 9.5
0.5bar (l/min): 20.9
1bar (l/min): 33.5
2bar (l/min): 47.4
3bar (l/min): 58.5

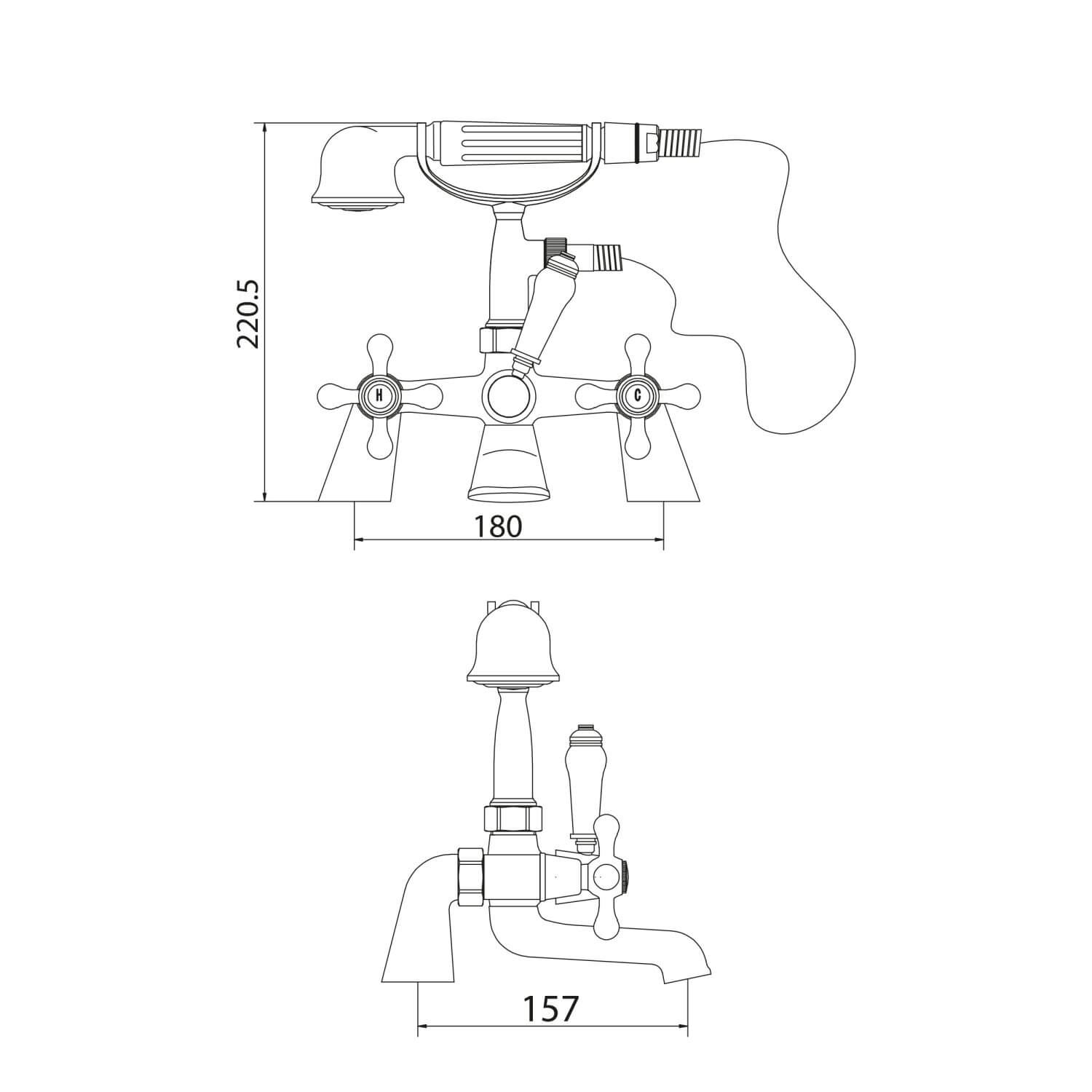

Product Measurements

Product Weight (KG): 2.62
Product Width (mm): 222
Product Height (mm): 220
Product Length (mm): 191.5
