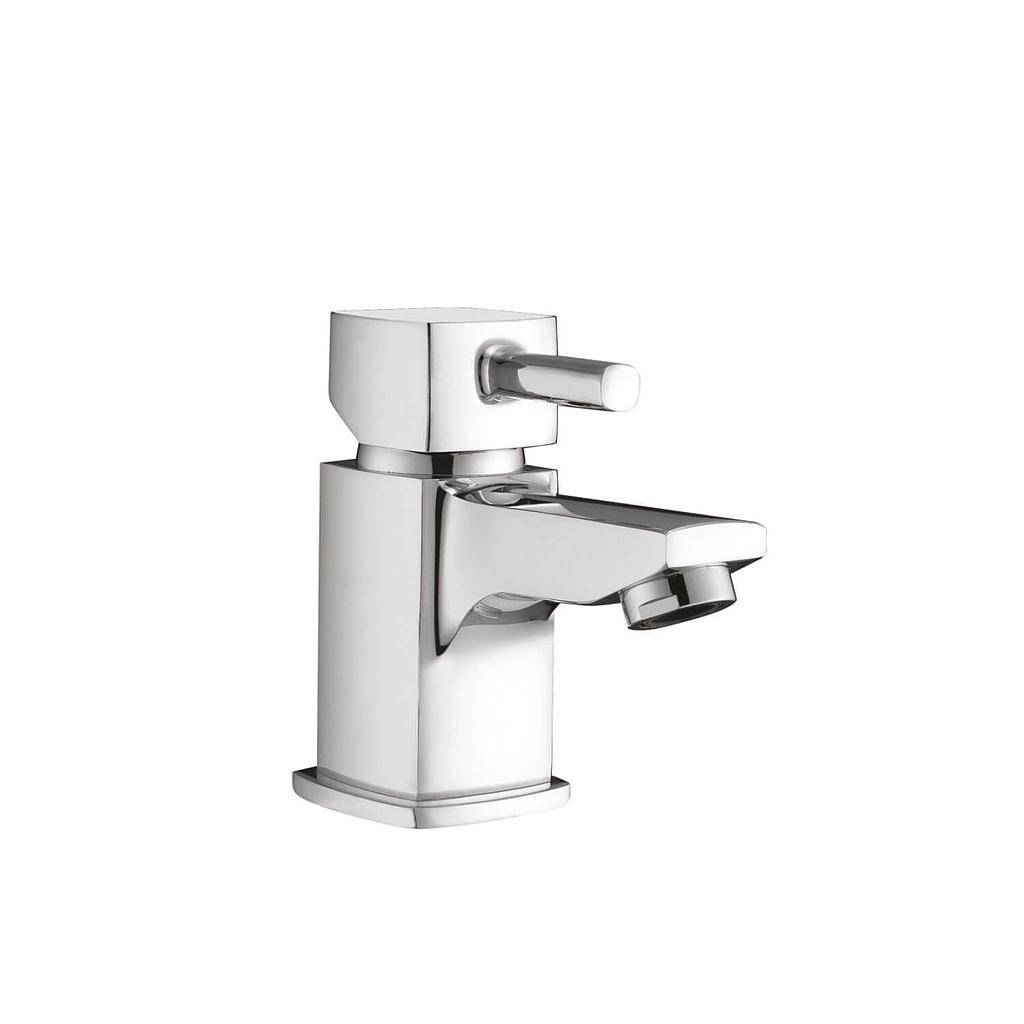

Forme Mini Mono Basin Mixer with Push Waste - Chrome
Unit Detail
Description
Description: Mini Mono Basin Mixer with Push Waste
Construction Material: Brass
Installation type: Deck Mounted
Construction Material: Brass
Installation type: Deck Mounted
Specifications
Colour /Finish
Colour / Finish: Chrome
Tap /Shower Attributes
WRAS Approved: No
TMV2 Approved: No
Minimum Operating Pressure (Bar): 0.2
Maximum Operating pressure: 5
Flexible Tails Included: Yes
Number of handles: 1
Handle type: Lever
Swivel Spout: No
Inlet Connection size: 1 /2" M10
Tap Hole Diameter (mm): 35
Tap Type description: Mono Mixer
Includes Waste: Yes
Valve /Cartridge Type: 35mm Cartridge
Thermostatic cartridge type: T7012-08
Flow Rate 0.2 (l /min): 2.7
Flow Rate 0.5 (l /min): 4.8
Flow Rate 1 (l /min): 6.4
Flow Rate 2 (l /min): 9.4
Flow Rate 3 (l /min): 11.5
Tap Holes Required: 1
Enclosure Attributes
Profile Finish: CHROME
Key Dimensions
Product Weight (KG): 1.1

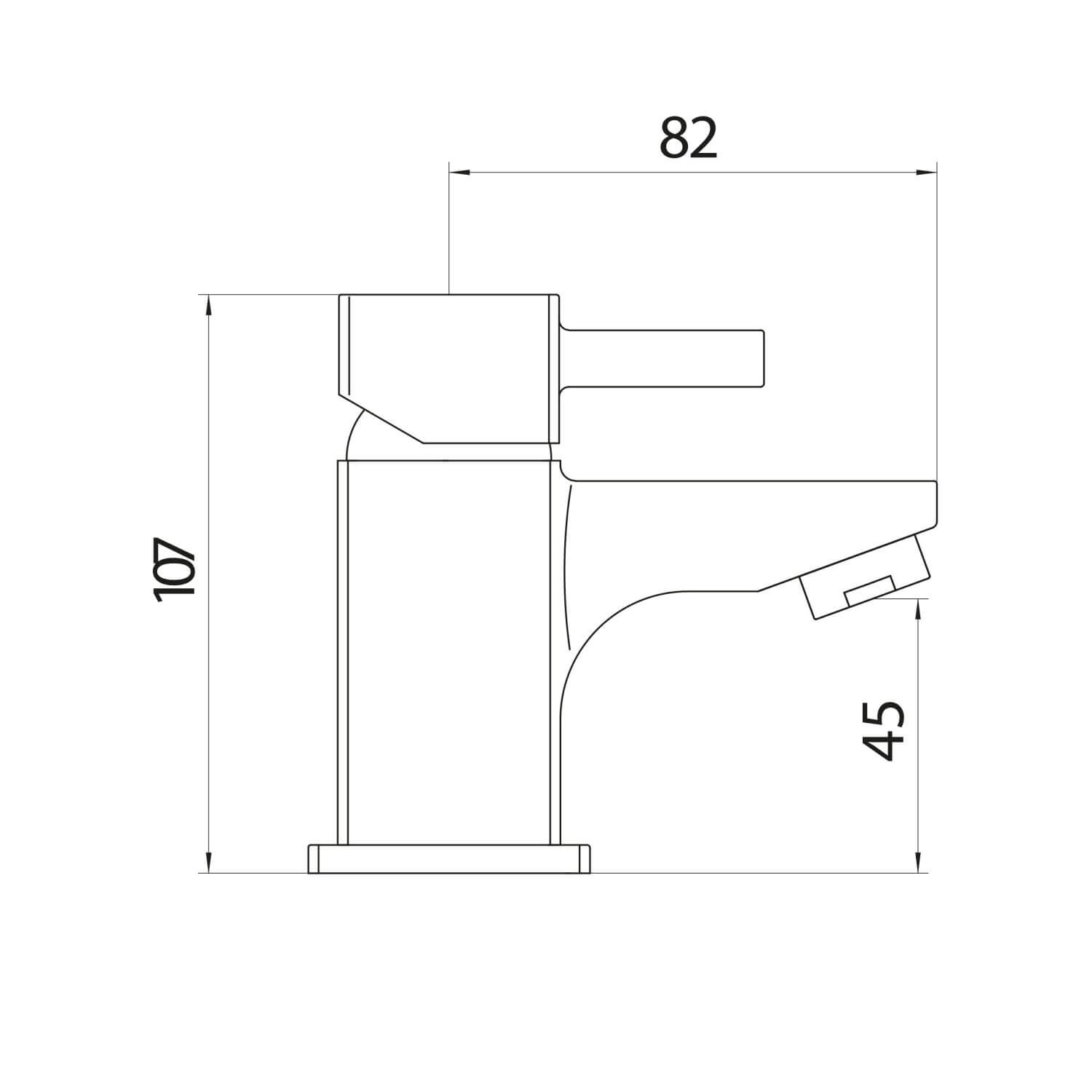

Product Width: See Line Drawing
Product Height: See Line Drawing
Product Length: See Line Drawing
