300mm Tall Planero Swing Out Larder Unit - 570mm Top Door (Low)

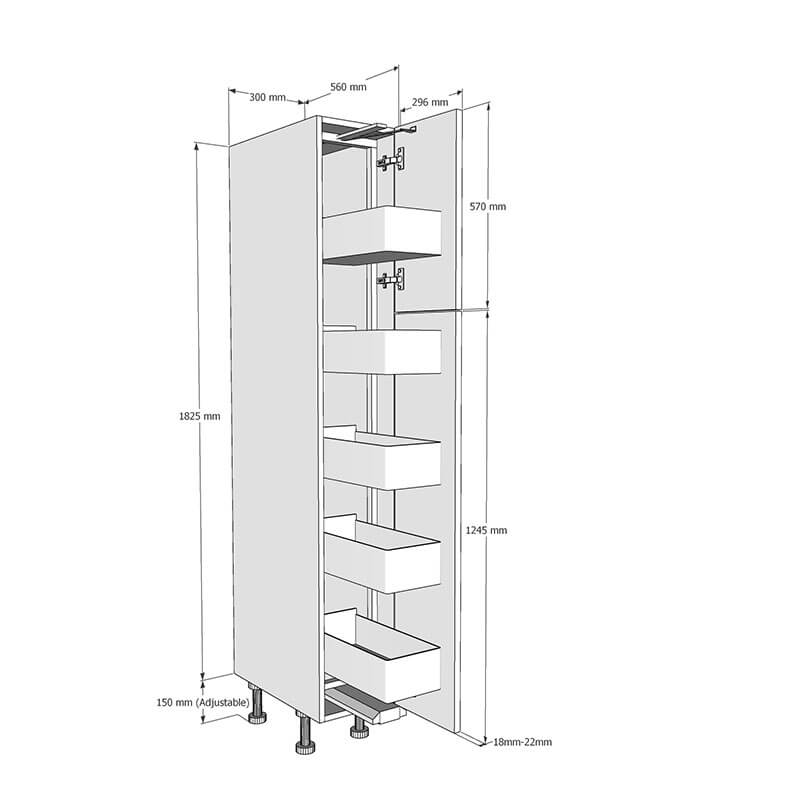

Dimensions, Notes & Advice
Height: 1825mm + 150mm Legs
Width: 300mm
Depth: 560mm + Door Thickness
Notes: To keep our prices low, we have a minimum order requirement of any 3 kitchen units.

Configure your cabinet Cabinet colour

Carcase Colour: None

(change colour)

Door style/colour

Components fitted to this unit:

Fittings:

Soft Close Hinges x 4

Component Price: £ 29.04 £ 17.42
Included

Planero Swing Out Larder Mechanism

Component Price: £ 726.00 £ 435.60
Included

Internal Larder Pack

Component Price: £ 107.62 £ 64.57
Included

Door Connecting Plates

Component Price: £ 2.24 £ 1.34
Included
Show Components
Oops! The required Door/Drawer Size is not available in this range
Options

Hinge Position

Any side mounted hinges are installed on the LEFT HAND side of the unit when facing it.
Any side mounted hinges are installed on the RIGHT HAND side of the unit when facing it.
Learn more about Hinge Options
Show Hinge Option Details

Assembly Options

Fully Assembled units are supplied ready to fit with any hinges, drawer mechanisms and fronts already attached.
Flatpack units need a kitchen installer or experienced DIY'er to assemble as only generic instructions supplied.
Learn more about Assembly Options
Show Assembly Option Details
Total Price

£ 1,003.78 £ 602.26

( £ 501.89 Ex. Vat)

602.26 GBP Kitchen Unit

Availability: Made to Order
DIY Skill Level
Competent This product requires an advanced level of DIY skills

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

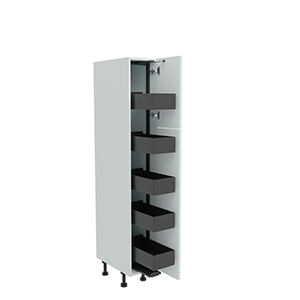

300mm Tall Planero Swing Out Larder Unit - 570mm Top Door (Low)

Low height larder unit for use with a 1245 x 296mm door and a 570 x 296mm door in your chosen style and  colour. Legs and Soft Close Pull Out fittings are included.

Cabinet Specification

18mm thick colour matched cabinet (where possible).
30mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Planero Basket Swing Out Fittings.

Fitting Instructions

Insert the 150mm Leg piece into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

None.
