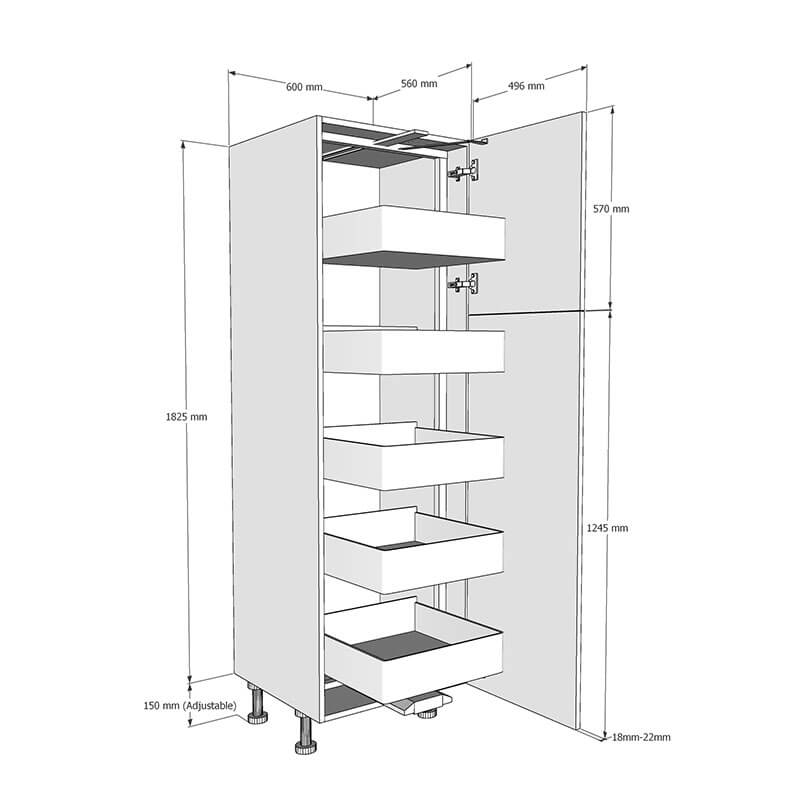

Cabinet Specification
18mm thick colour matched cabinet (where possible).
30mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close Hinges.
Planero Basket Swing Out Fittings.
Fitting Instructions
Insert the 150mm Leg piece into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
None.
