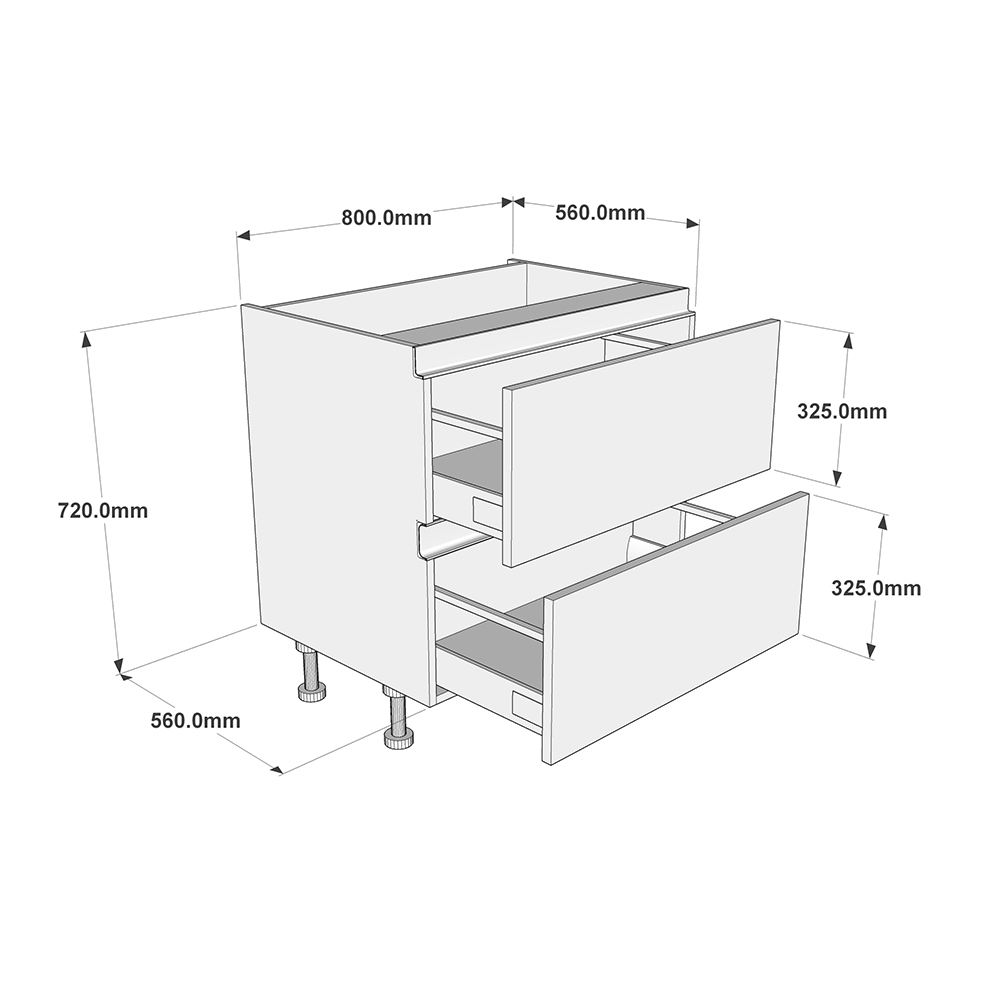

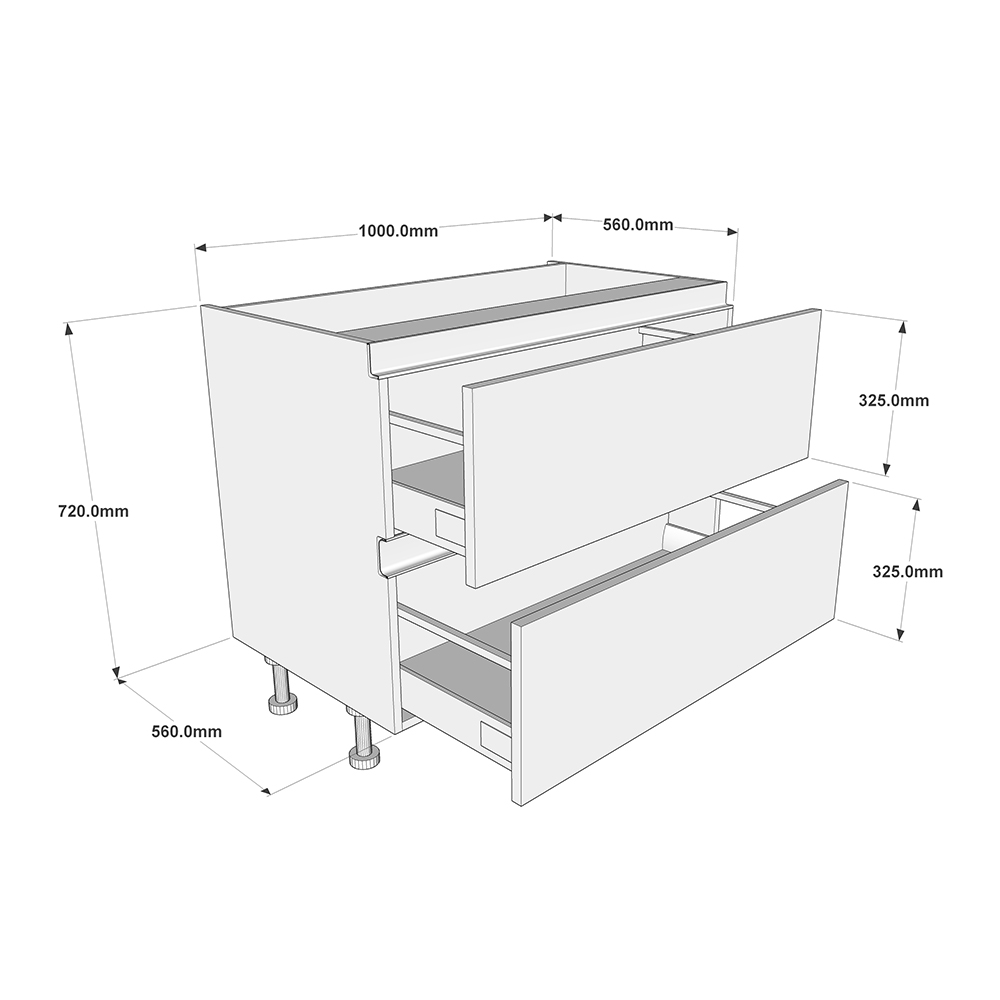

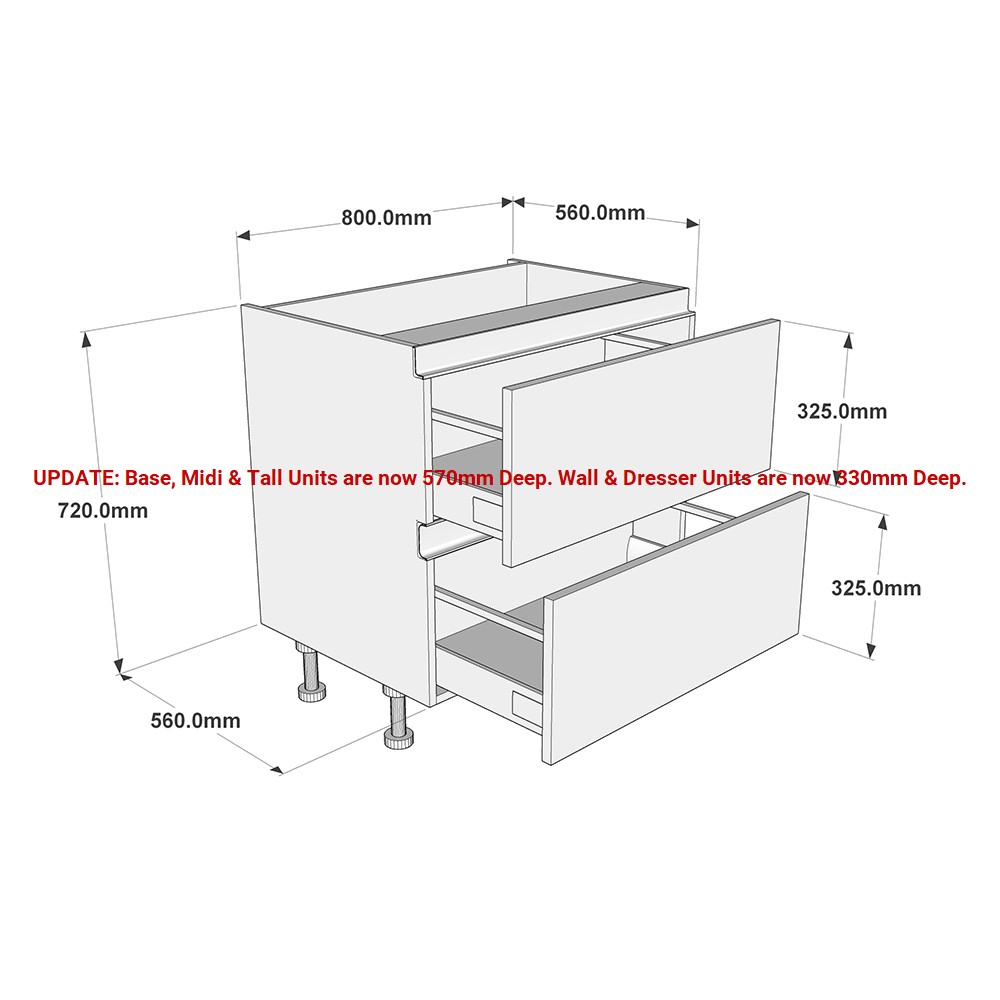

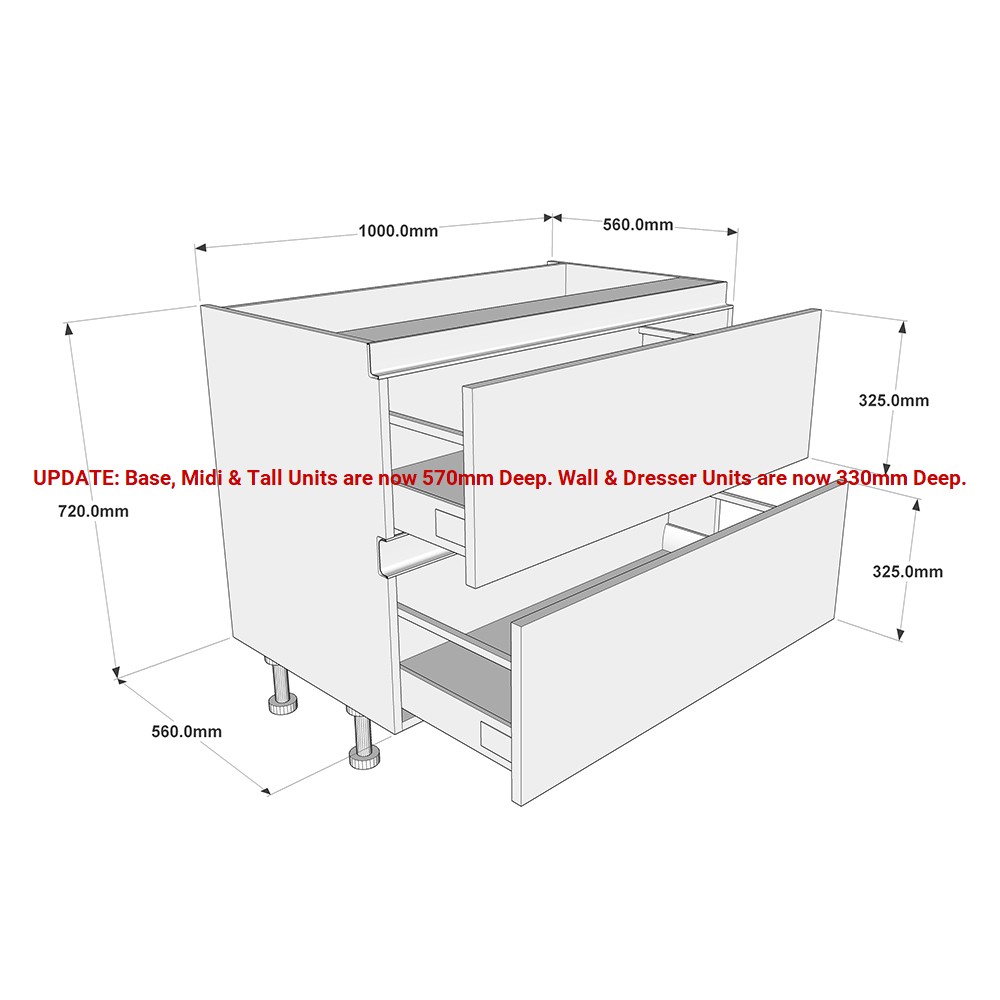

Cabinet Specification
18mm thick colour matched cabinet (where possible).
47mm Service Void.
150mm Plastic Legs (adjustable from 140-160mm).
Soft Close drawer fittings.
True Handleless Rail System sold separately.
Fitting Instructions
Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the
cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the
wall using ‘L’ Brackets and appropriate screws (not supplied).
Special Notes
This Carcase is designed to accept the True Handleless Rail System.
