600mm True Handleless 70/30 Fridge Freezer Housing - RH Hinge (Medium)

DESIGN UPDATE: All tall fridge and freezer housings are now supplied with predefined shelf positions that make lining up the doors of tall integrated refrigeration appliances easier than ever. Supplied in flatpack form to allow you to choose the best shelf position for your chosen appliance.

600mm True Handleless 70-30 Fridge Housing - Right Hand Hinge

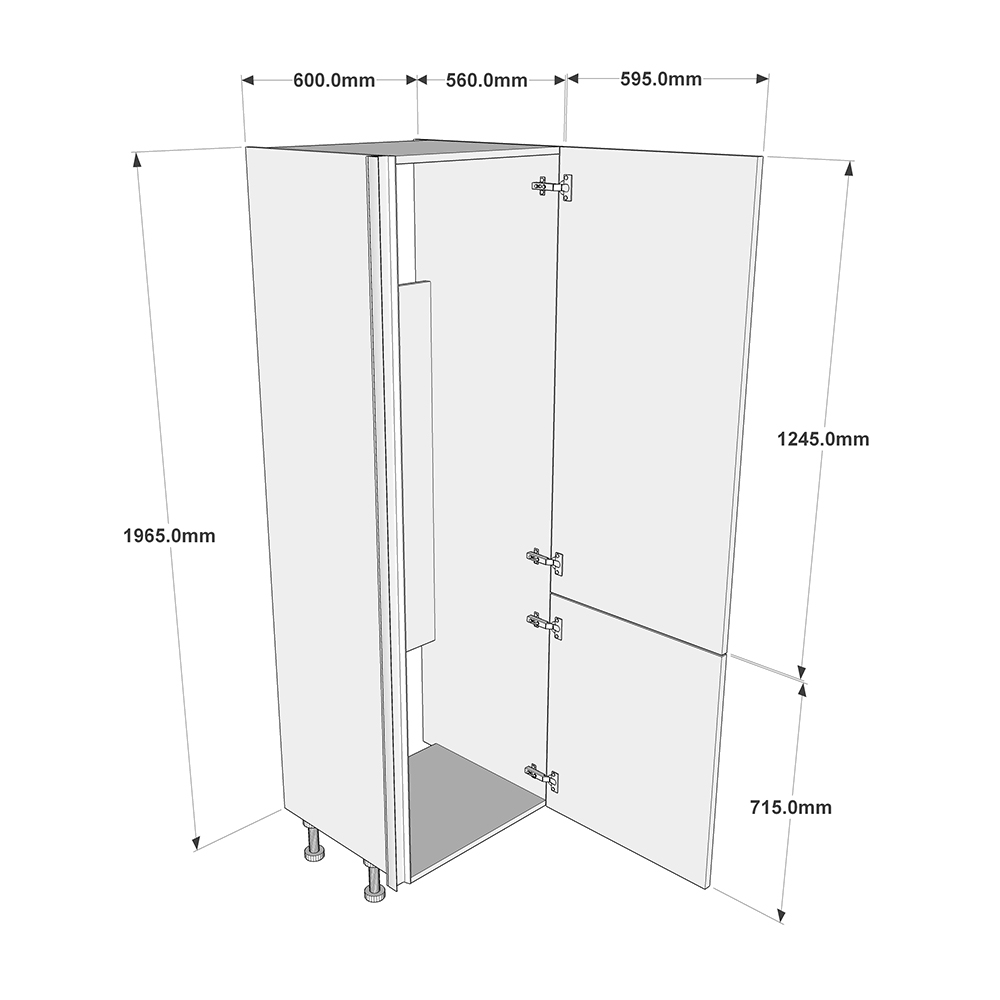

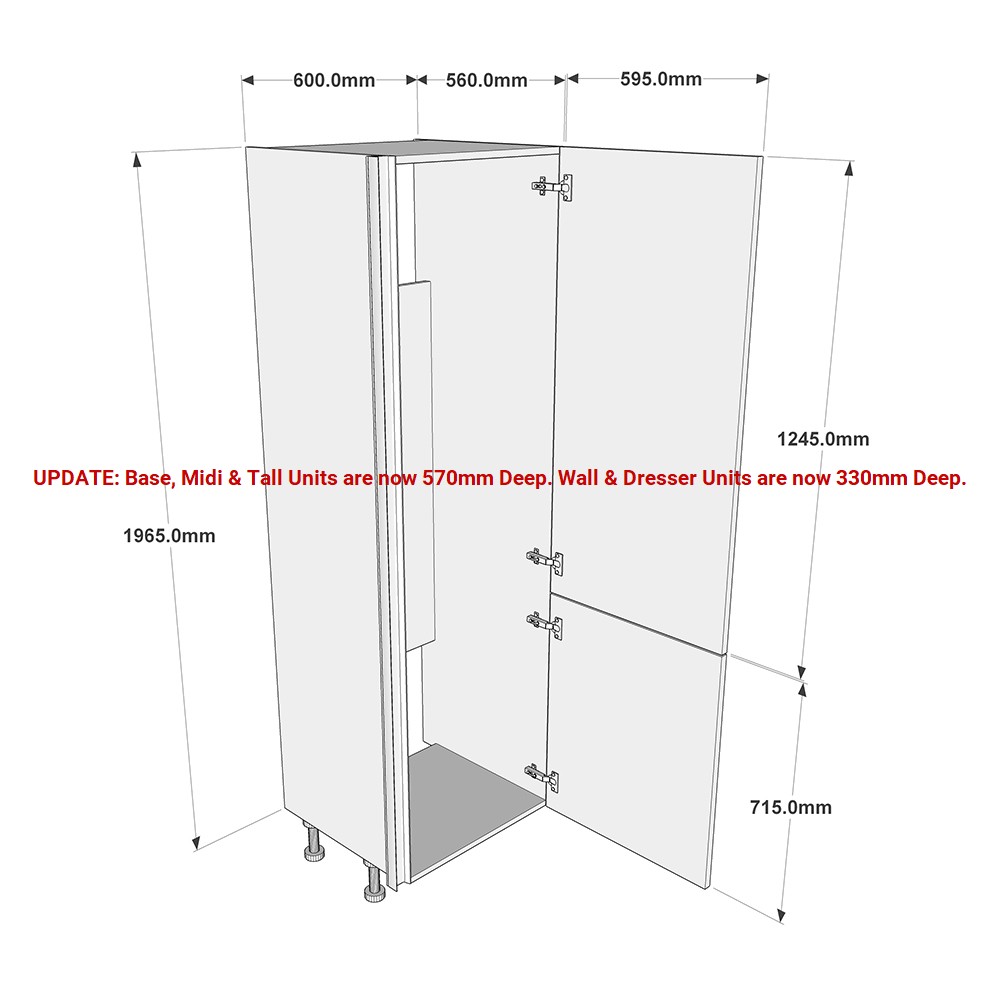

True Handleless Medium Height 70/30 split fridge/freezer housing unit supplied with a 1245 x 596mm and a 715 x 596mm doors in your chosen style and colour. Legs and Soft Close Hinges included. True Handleless Rail System sold separately.

Cabinet Specification

18mm thick colour matched cabinet (where possible). 47mm Service Void. 150mm Plastic Legs (adjustable from 140-160mm). Soft Close Hinges. True Handleless Rail System sold separately

Fitting Instructions

Insert the 150mm Leg piece (found in plastic fittings bag supplied) into each of the sockets on the base of the cabinet. Level the unit as required and securely fix any adjacent units using the Cabinet Connectors and to the wall using ‘L’ Brackets and appropriate screws (not supplied).

Special Notes

The back panel on this unit is for support only and is to be removed on site to fit fridge freezer. This Carcase is designed to accept the True Handleless Rail System.
